Headlamp HF4R Core

HF-Series
Colour
Model
Headlamp HF4R Core €39.90 Nr: 502792
Headlamp HF4R Work €44.90 Nr: 502793
Headlamp HF4R Signature €49.90 Nr: 502884
Need help finding the right product? Learn more about the differences between Core, Work and Signature.

€39.90

Prices incl. VAT plus shipping costs

Headlamp HF4R Core €39.90*

Available, delivery time: 2-12 days

Features

  • Backup Mode
    Backup Mode
    In this mode, the remaining runtime is about an hour, so you can safely finish your work or find your way home.
  • Red Light
    Red Light
    Red light has the ability to preserve the natural night vision of the human eye.
  • Memory Function
    Memory Function
    The Memory Function sets the light so that it starts in the last light mode or brightness level used when it is switched on.
  • Transportation Lock
    Transportation Lock
    The optionally activatable lock function prevents accidental switching on of the light in the backpack or suitcase.
Nr: 502792
2+5 years
2+5 years

Get seven years warranty upon registration.

*See our terms and conditions.

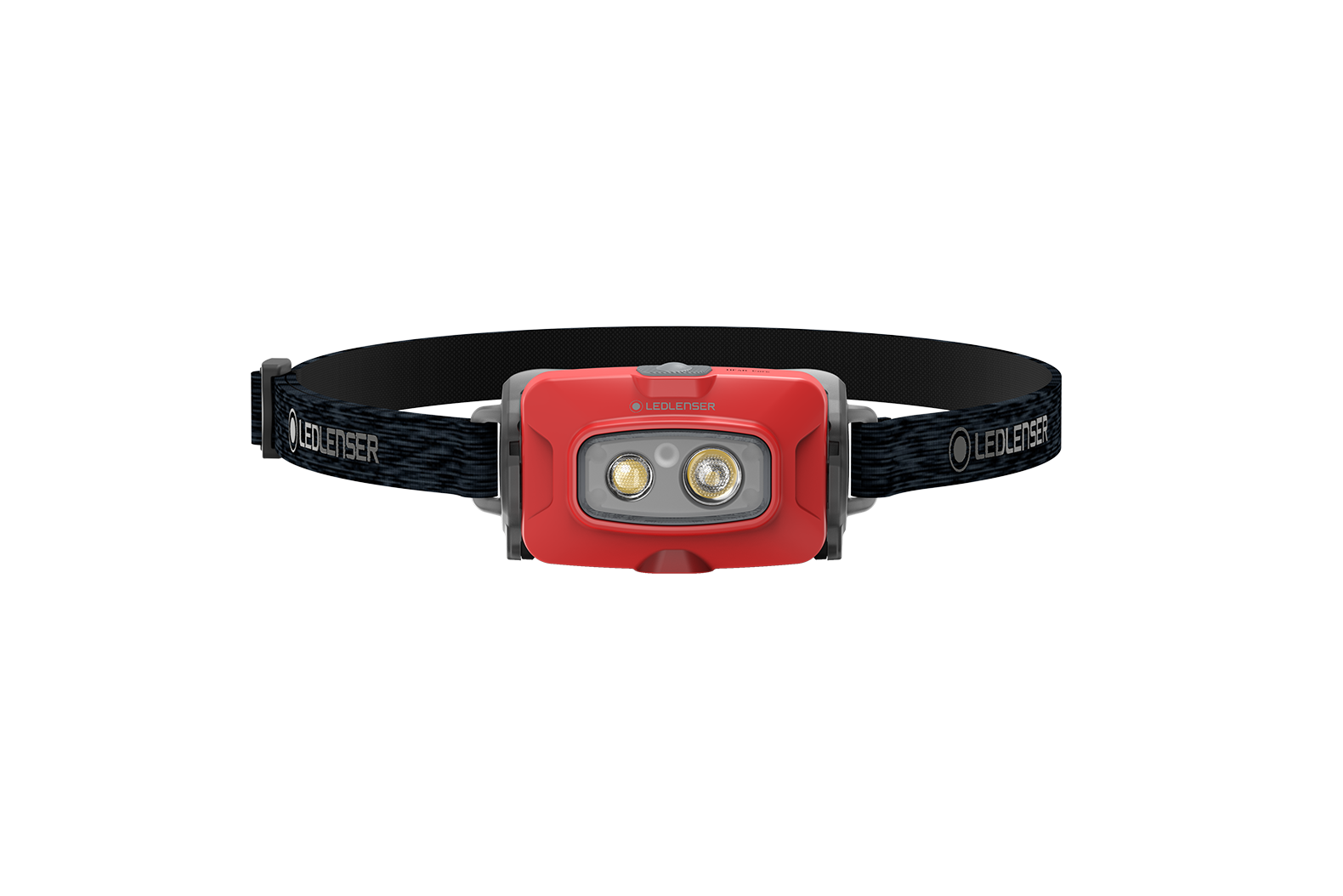

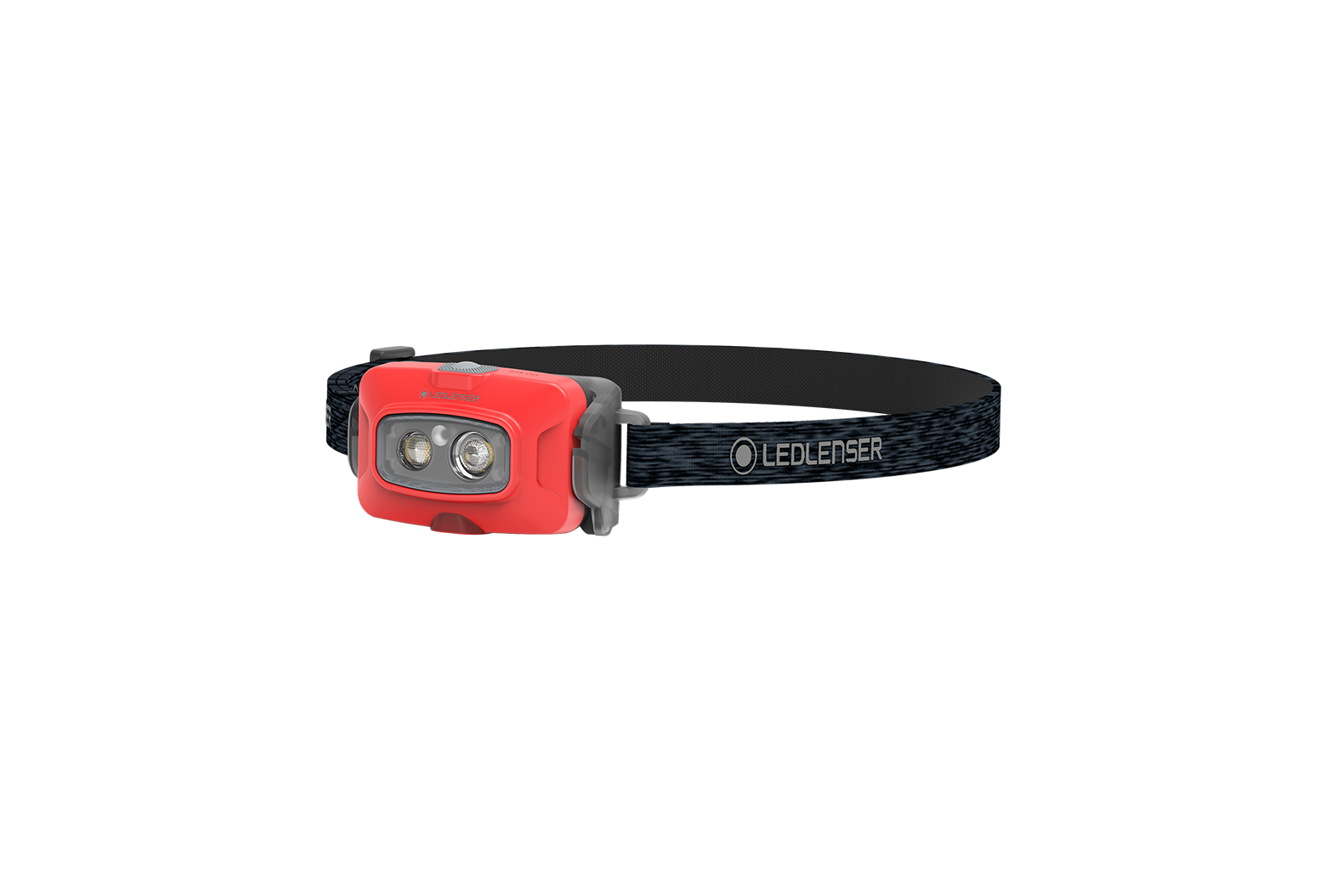

Ledlenser HF4R Core

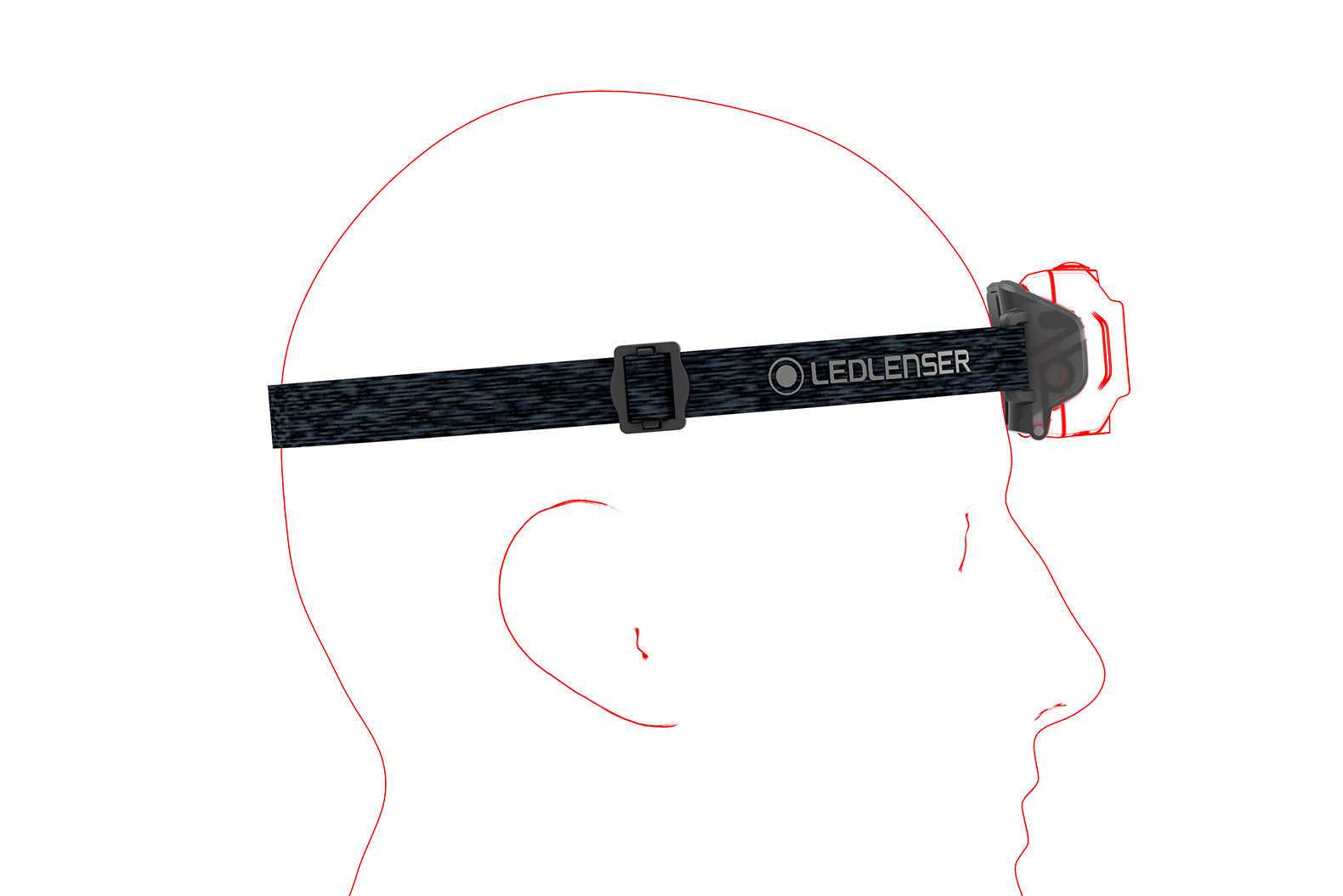

The Ledlenser HF4R Core is our slim and lightweight basic model for everyday use. Its red front light as well as a perfect close and far-range illumination by two light sources make the HF4R Core the ideal headlamp for a camping trip or taking your dog for a walk. The steplessly tilting lamp head provides flexibility, while the slim headband can be individually adjusted. You can easily charge the integrated battery via Magnetic Charge System. Other clever features include the handy transportation lock and the battery status indicator.
show more show less
  • Slim headlamp with three brightness levels as well as red front light

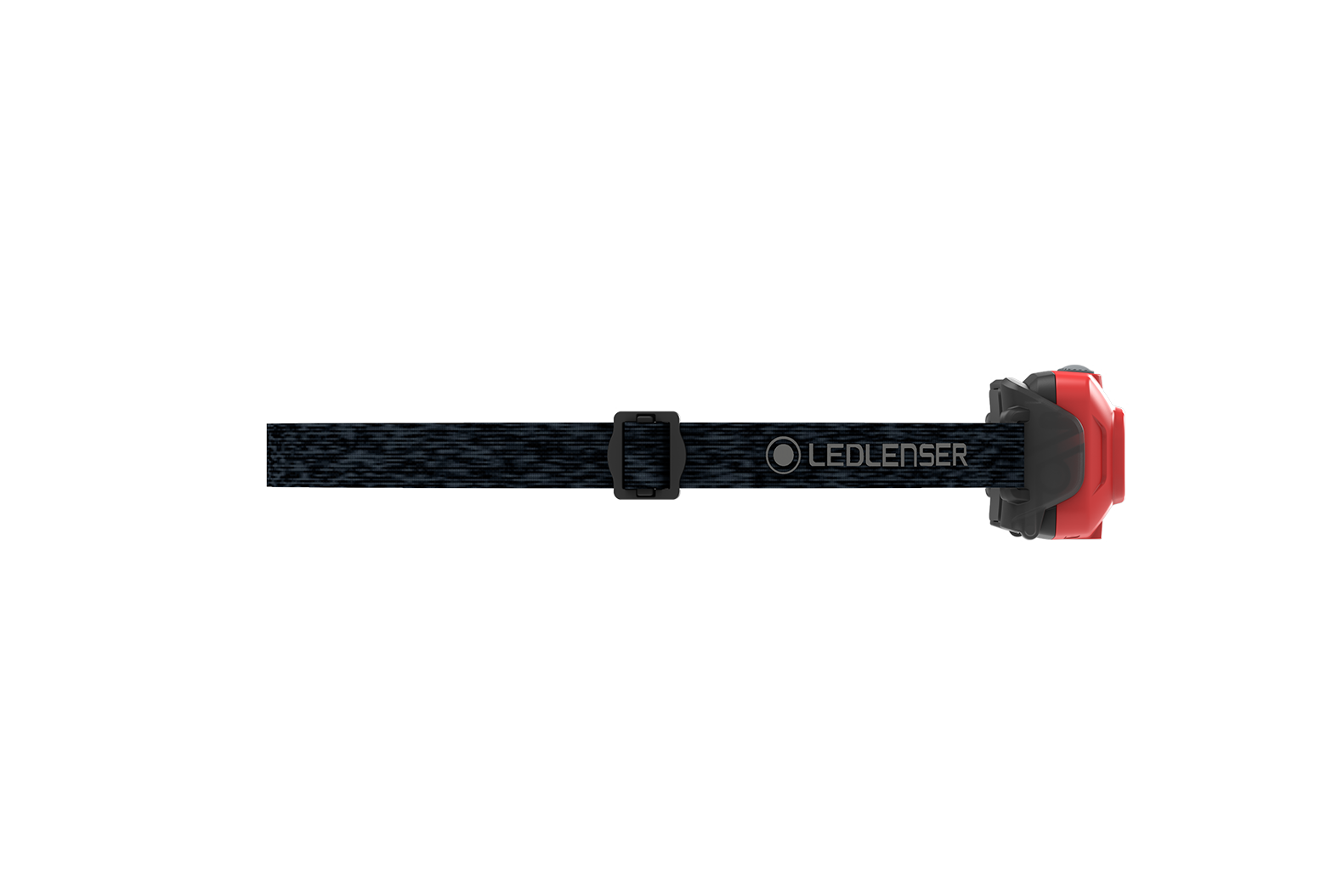

  • Steplessly tilting lamp head
  • Bright and perfectly balanced light pattern; two light sources for short and long-range illumination

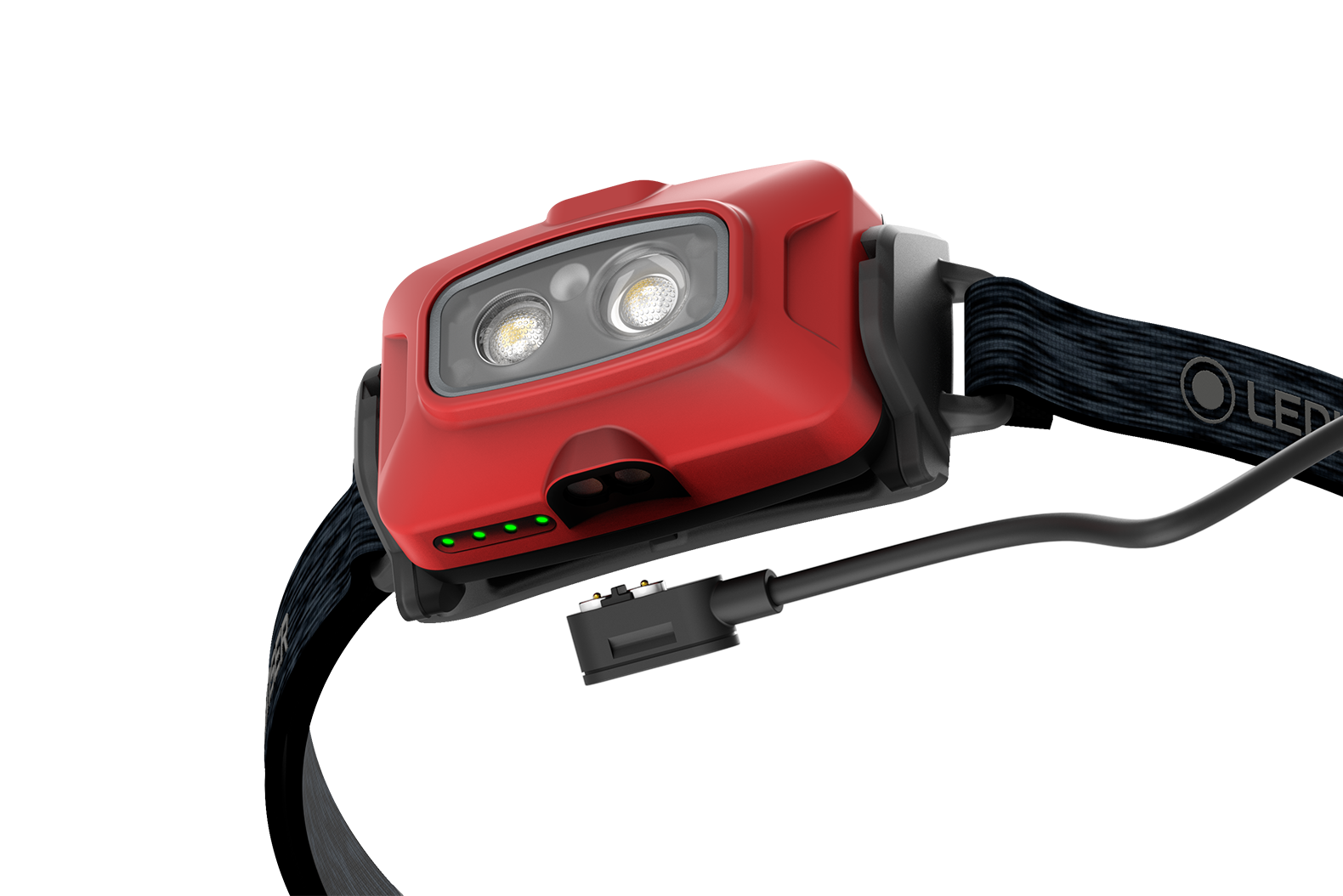

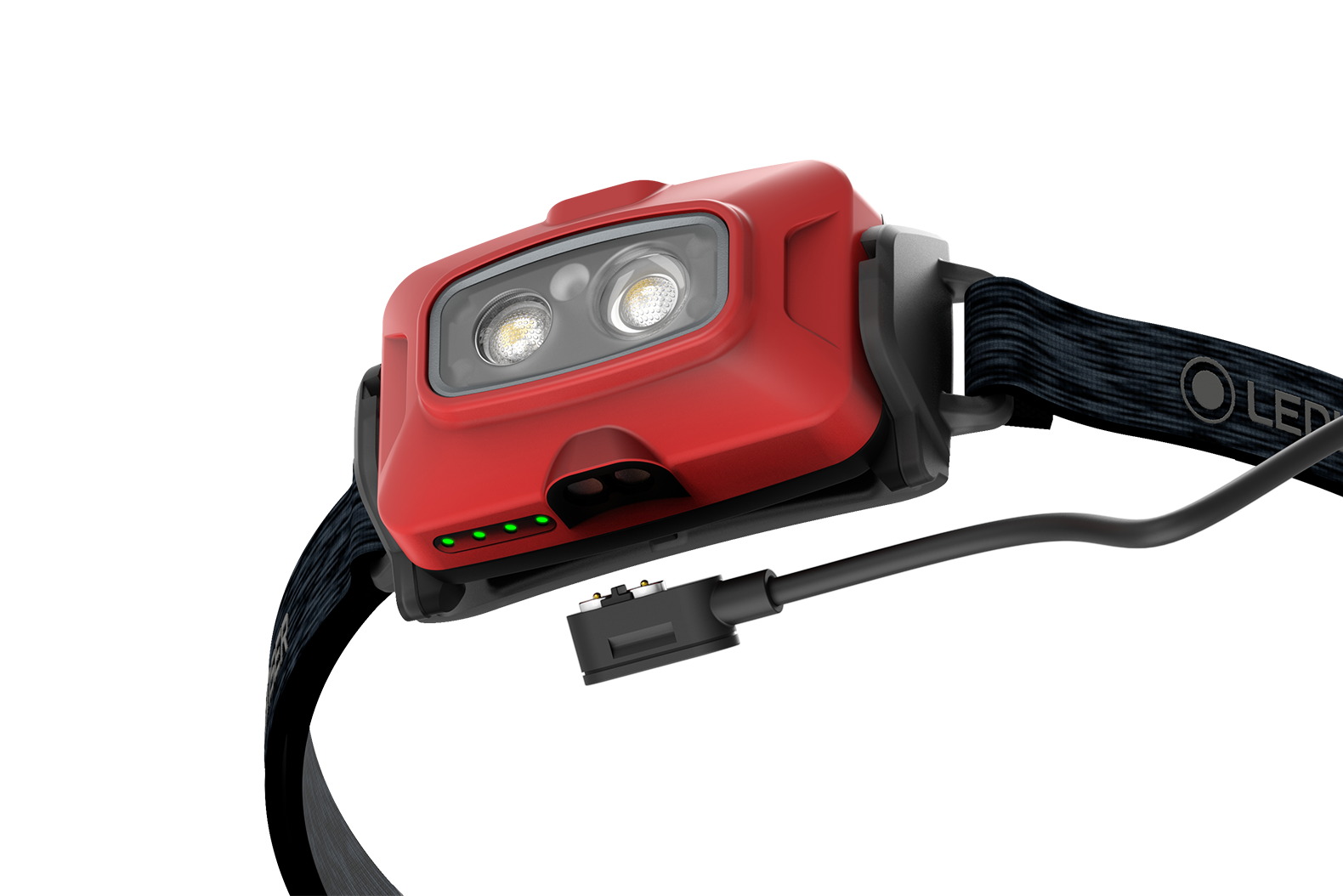

  • Efficient battery; easily rechargeable via Magnetic Charge System, with battery status indicator
  • Resistant to continuous immersion in water (IP68)

Scope of delivery

  • Connect adapter - HF
    Connect adapter - HF
  • Magnetic charging cable (USB-C)
    Magnetic charging cable (USB-C)

Technical data

  • LED
    Beam distance (in m) 1 130
    Max. Luminous flux (in lm) 1 500
    Lightsource quantity 2
    CRI 70
    Lightsource color temperature 5200 - 6200
    Boost Power Mid power Low power
    Luminous flux (in lm) 500 300 120 20
    Beamdistance (in m) 130 100 60 15
    Runtime (in h) - 2.5 5 35
    1 Measured values according to ANSI/PLATO FL 1 at the respective setting. If no setting is explicitly named, the values for luminous flux (lumen/lm) and luminous range (metres/m) refer to the brightest setting and the values for luminous duration (hours/h) to the lowest setting. A boost function (if available) can be used several times, but is only available for a short time at a time. In case the lamp is equipped with coloured LEDs, the measured values are given with white light or the white LED. If the lamp has different energy modes, the "energy saving mode" is the basis for the measurement.
  • Power supply
    Runtime (in hours) 1 35
    Rechargeable Yes
    Charging time (in minutes) 180
    1 Measured values according to ANSI/PLATO FL 1 at the respective setting. If no setting is explicitly named, the values for luminous flux (lumen/lm) and luminous range (metres/m) refer to the brightest setting and the values for luminous duration (hours/h) to the lowest setting. A boost function (if available) can be used several times, but is only available for a short time at a time. In case the lamp is equipped with coloured LEDs, the measured values are given with white light or the white LED. If the lamp has different energy modes, the "energy saving mode" is the basis for the measurement.
  • Case
    Dimensions
    Weight (in g) 72
    Material
    Materials PC
    Water and dust resistance IP68
    Drop test height (in m) 2
    Working temperature (in C°) -20 - 40
  • Downloads
    Name Size Typ
    1J12A0503_HF4R-Core_38x35cm_QUG_20230306 5,61 MB pdf
    Warnings_25Languages_V5-50x38cm-20240507 4,08 MB pdf

Technologien

  • Fusion Beam
    Fusion Beam
  • Temperature Control System
    Temperature Control System
  • Magnetic Charge System
    Magnetic Charge System



Im Detail

Which product is right for you?

Headlamp HF4R Core
Headlamp HF4R Core
Beam distance (in m) 130
Runtime (in hours) 35
Max. Luminous flux (in lm) 500
Rechargeable Yes
Materials PC
Charging time (in minutes) 180
Water and dust resistance IP68
Drop test height (in m) 2
Working temperature (in C°) -20 - 40

€39.90
Headlamp HF4R Work
Headlamp HF4R Work
Beam distance (in m) 130
Runtime (in hours) 35
Max. Luminous flux (in lm) 500
Rechargeable Yes
Materials PC
Charging time (in minutes) 180
Water and dust resistance IP68
Drop test height (in m) 2
Working temperature (in C°) -20 - 40

€44.90
Details
Headlamp HF4R Signature
Headlamp HF4R Signature
Beam distance (in m) 140
Runtime (in hours) 35
Max. Luminous flux (in lm) 600
Rechargeable Yes
Materials PC
Charging time (in minutes) 180
Water and dust resistance IP68
Drop test height (in m) 2
Working temperature (in C°) -20 - 40

€49.90
Details
