Nr: 500837

EX-Series

Flashlight EX7R

€185.00

Prices incl. VAT plus shipping costs

Available, delivery time: 2-5 days

Technologien

Advanced Focus System

7 years

Get seven years warranty upon registration.

See our terms and conditions.

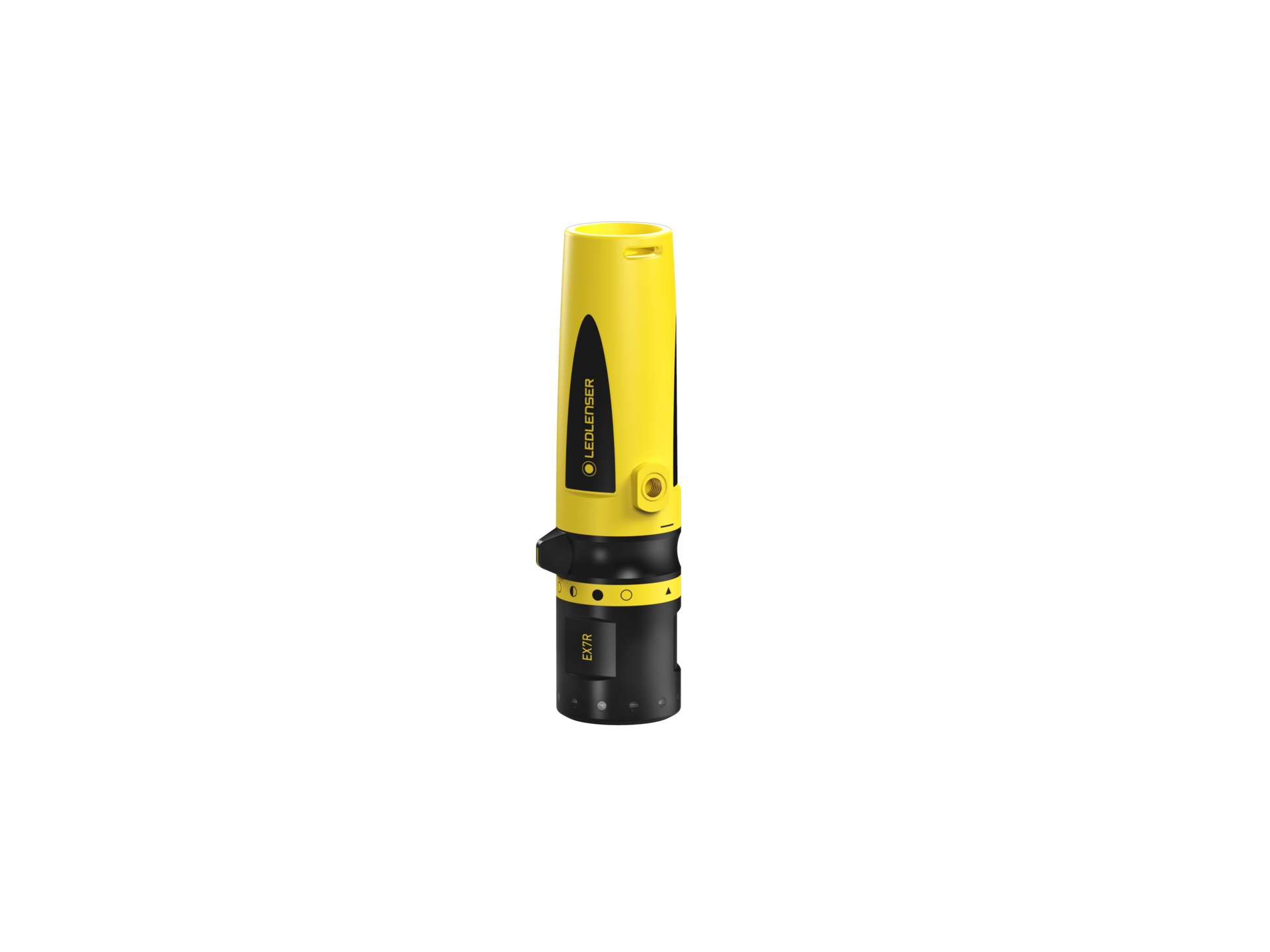

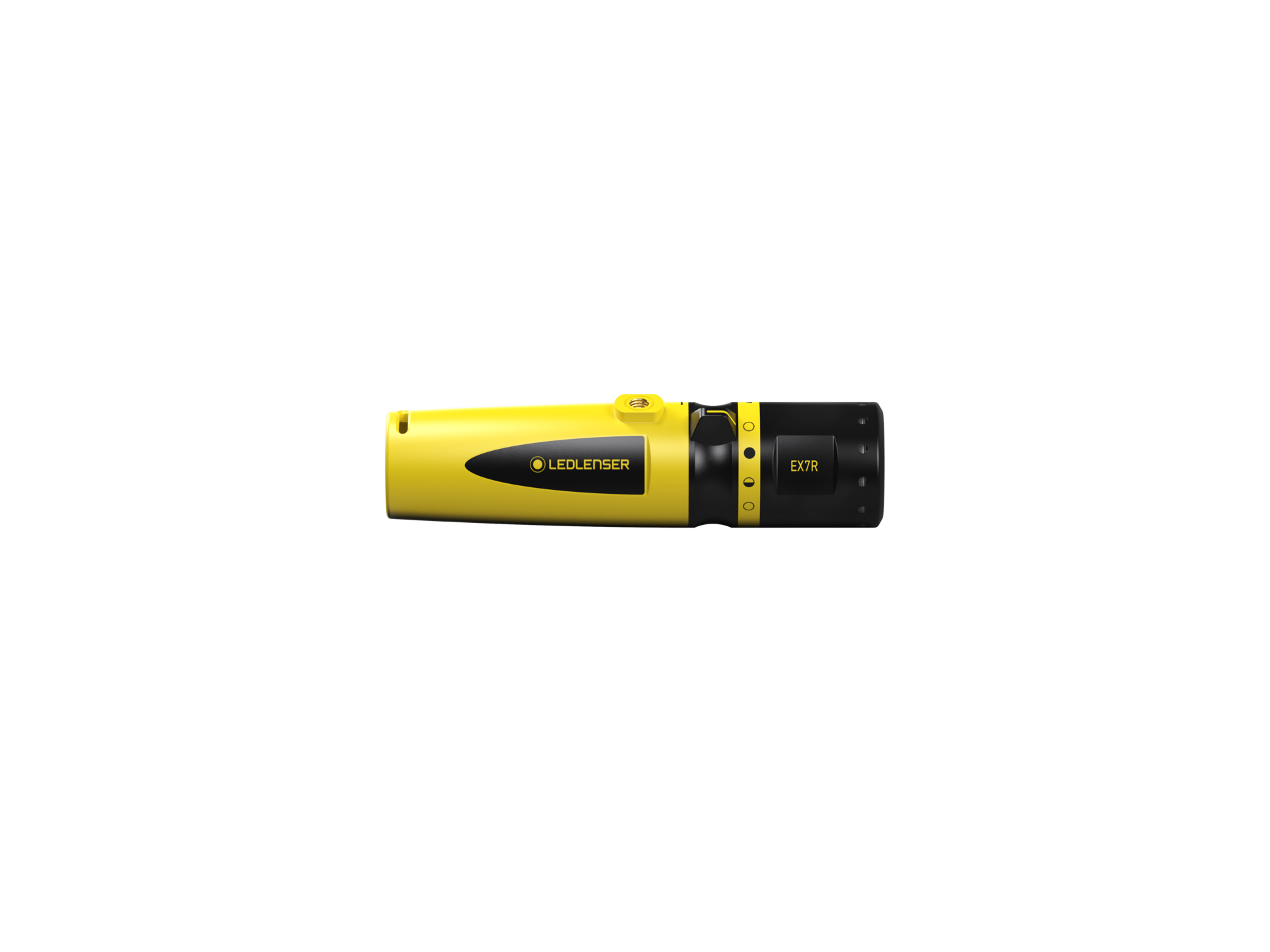

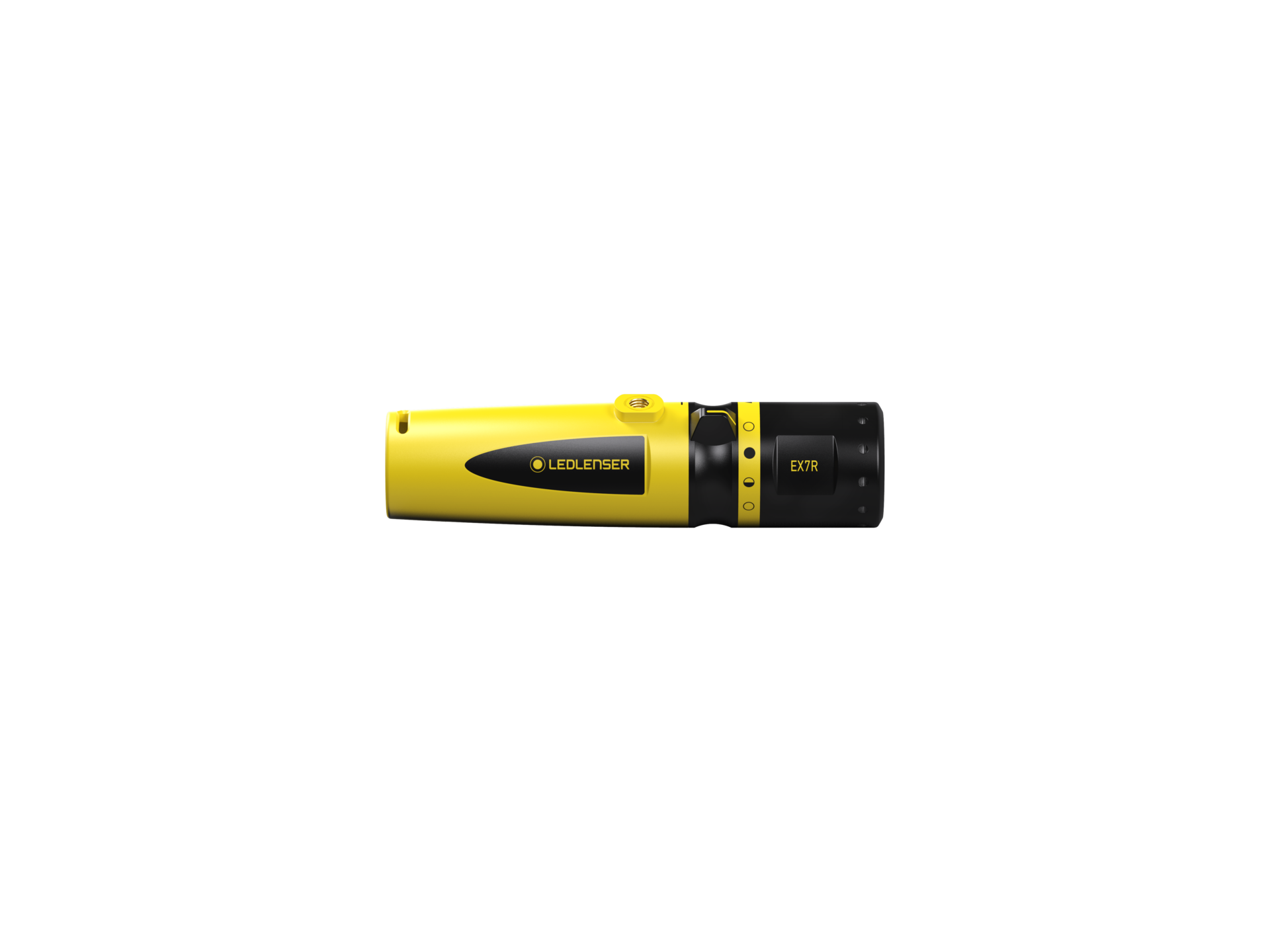

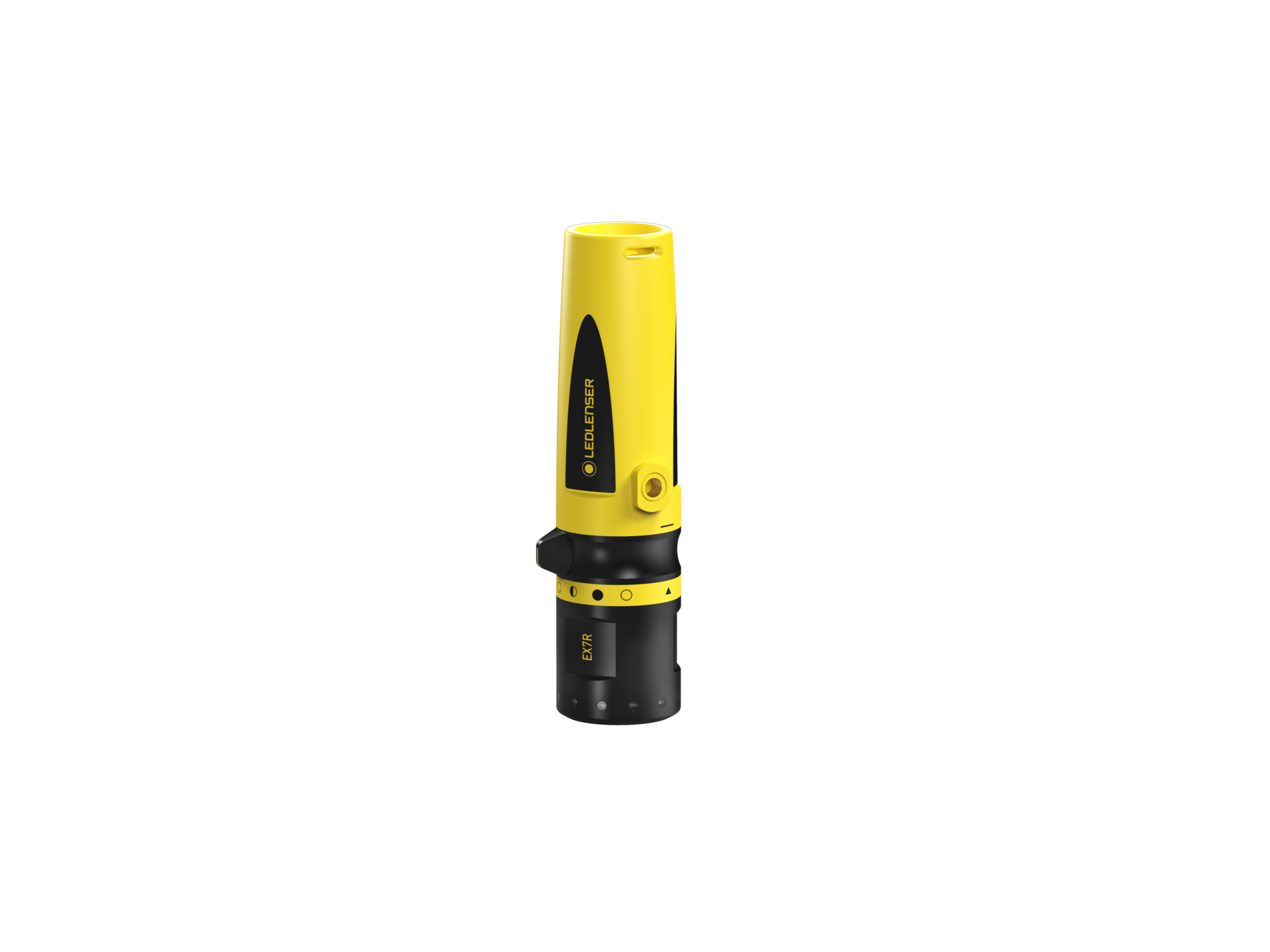

The Ledlenser EX7R

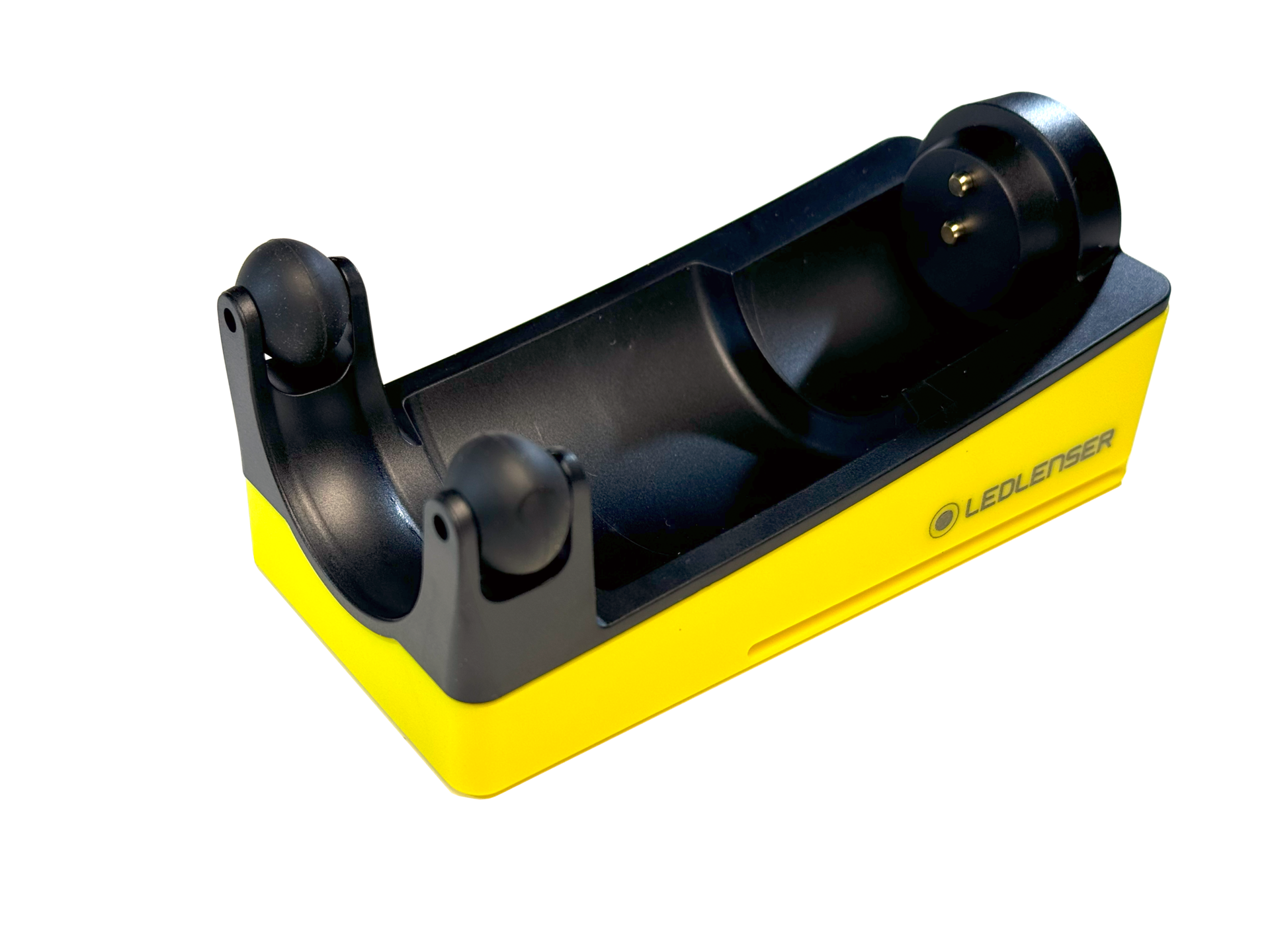

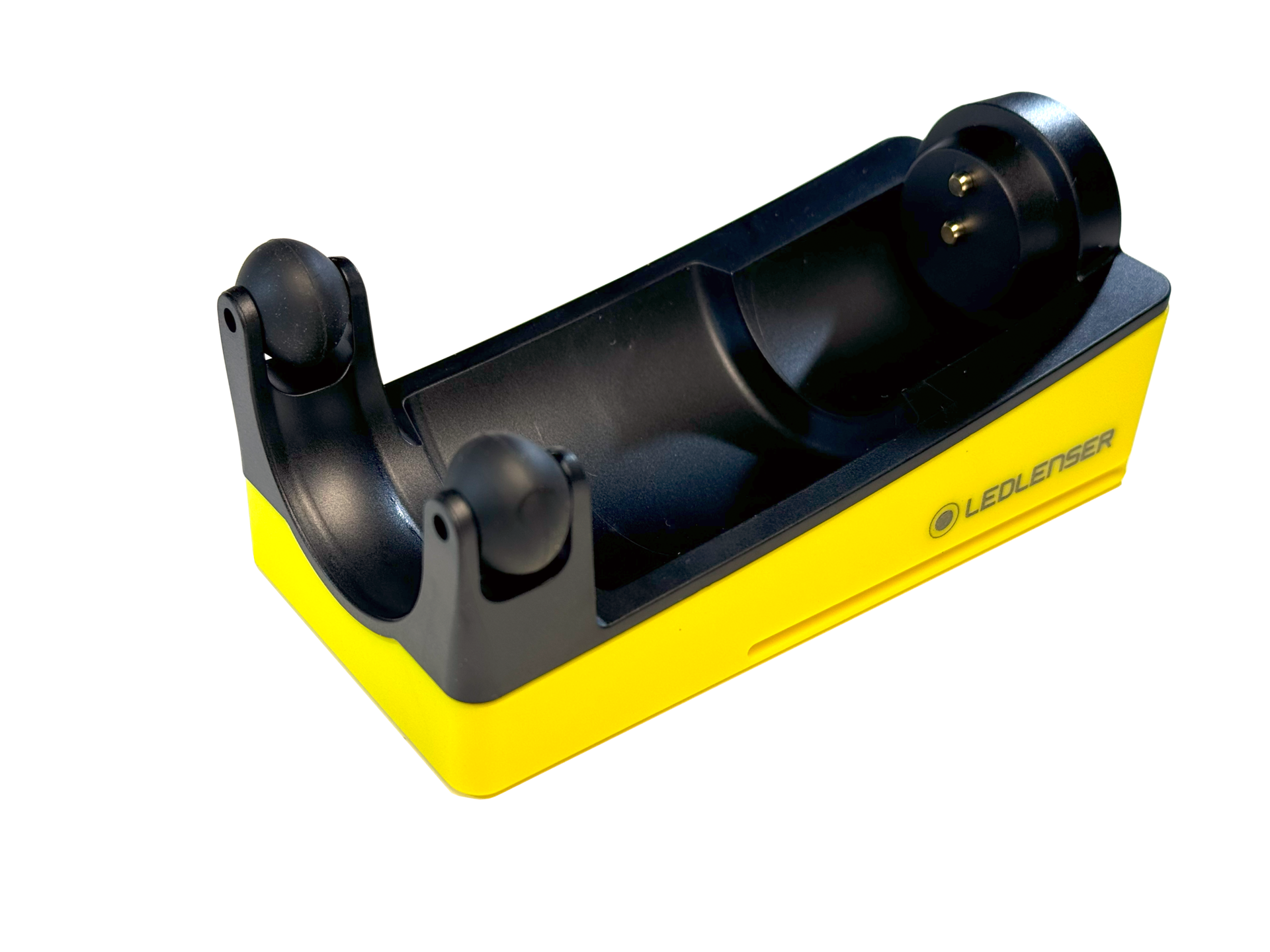

This torch for Ex-Zone 1/21 makes your work easier - and not only because it weighs just 228 g (incl. batteries). The real reason is its Magnetic Switch. Because this on/off switch can be easily operated with work gloves. At the same time, it is the first rechargeable torch for Ex-Zone 1/21 with the patented Advanced Focus System. Thanks to the charging cradle included in the scope of delivery, the lithium-ion battery can be conveniently charged. However, with a maximum burn time of 45 hours this should only rarely be necessary.

Scope of delivery

1 set of rechargeable batteries
Belt clip

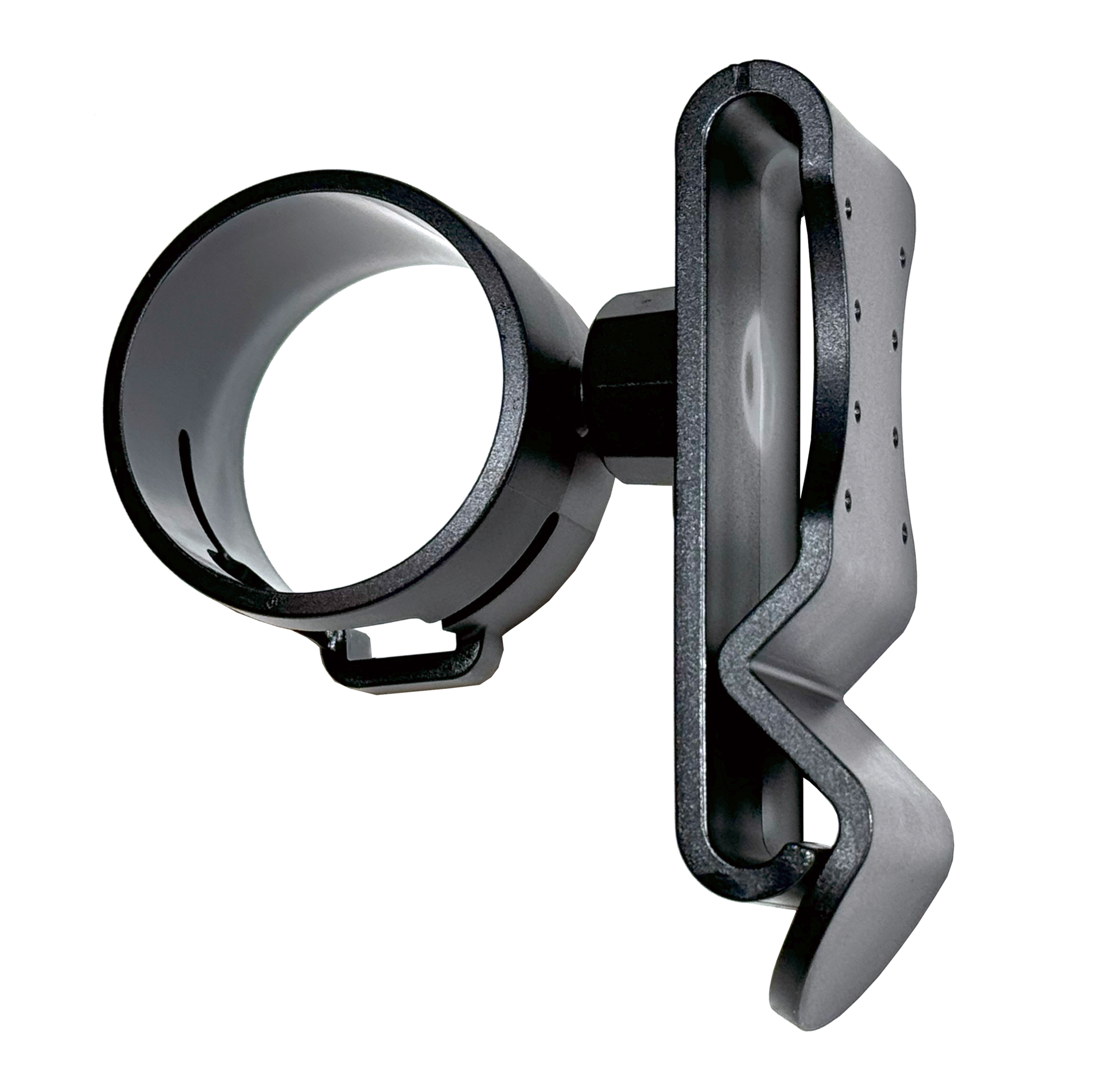

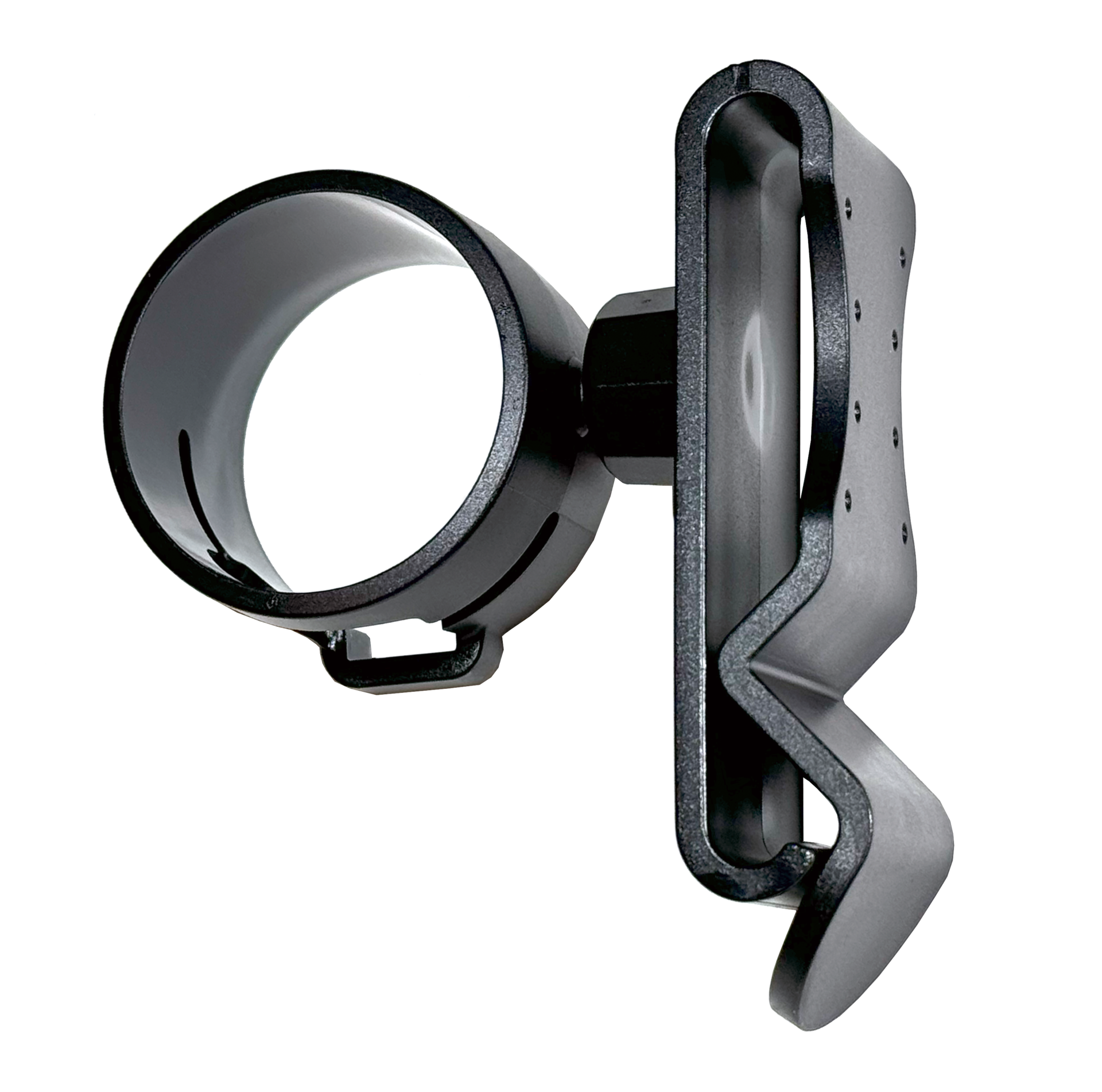

Intelligent clip

Technical data

LED

Beam distance (in m) ¹ 140

Max. Luminous flux (in lm) ¹ 220

Lightsource quantity 1

CRI 65

Lightsource color temperature 6000 - 8000

1 Measured values according to ANSI/PLATO FL 1 at the respective setting. If no setting is explicitly named, the values for luminous flux (lumen/lm) and luminous range (metres/m) refer to the brightest setting and the values for luminous duration (hours/h) to the lowest setting. A boost function (if available) can be used several times, but is only available for a short time at a time. In case the lamp is equipped with coloured LEDs, the measured values are given with white light or the white LED. If the lamp has different energy modes, the "energy saving mode" is the basis for the measurement.
Power supply

Runtime (in hours) ¹ 45

Rechargeable Yes

Charging time (in minutes) 660

1 Measured values according to ANSI/PLATO FL 1 at the respective setting. If no setting is explicitly named, the values for luminous flux (lumen/lm) and luminous range (metres/m) refer to the brightest setting and the values for luminous duration (hours/h) to the lowest setting. A boost function (if available) can be used several times, but is only available for a short time at a time. In case the lamp is equipped with coloured LEDs, the measured values are given with white light or the white LED. If the lamp has different energy modes, the "energy saving mode" is the basis for the measurement.
Case

Dimensions

Length (in mm) 161

Head diameter (in mm) 41

Tube diameter (in mm) 41

Weight (in g) 228

Material

Materials PC

Water and dust resistance IP68

Drop test height (in m) 1

Working temperature (in C°) -20 - 40

specific data for EX-Protection

EX gas zone 1

EX dust zone 21

Downloads

Name	Size	Typ
EX7R_QUG_V.02_20190314	3,51 MB	pdf
Certificate bundle EX series 2020-09-21	7,98 MB	pdf
EX7R KC 2019-07-19	2,61 MB	pdf
DECLARATION OF CONFORMITY EX7R_2021-01-19	708,41 kB	pdf
Z-eng-Ledlenser-23	364,35 kB	pdf

Accessories

Nr: 0386 Car Charger

Prices incl. VAT plus shipping costs

Available

€19.90

Nr: 500958 Signal Cone 42mm

Prices incl. VAT plus shipping costs

Available again soon

€6.90

Nr: 500957 Intelligent Clip Type G

Prices incl. VAT plus shipping costs

Available

€8.90

Reviews

Your opinion is important to us!

No reviews found. Be the first to share your insights.

Beam distance (in m) ¹	140
Max. Luminous flux (in lm) ¹	220
Lightsource quantity	1
CRI	65
Lightsource color temperature	6000 - 8000

Runtime (in hours) ¹	45
Rechargeable	Yes
Charging time (in minutes)	660

Length (in mm)	161
Head diameter (in mm)	41
Tube diameter (in mm)	41
Weight (in g)	228

Materials	PC
Water and dust resistance	IP68
Drop test height (in m)	1
Working temperature (in C°)	-20 - 40

EX gas zone	1
EX dust zone	21
