EX-Series

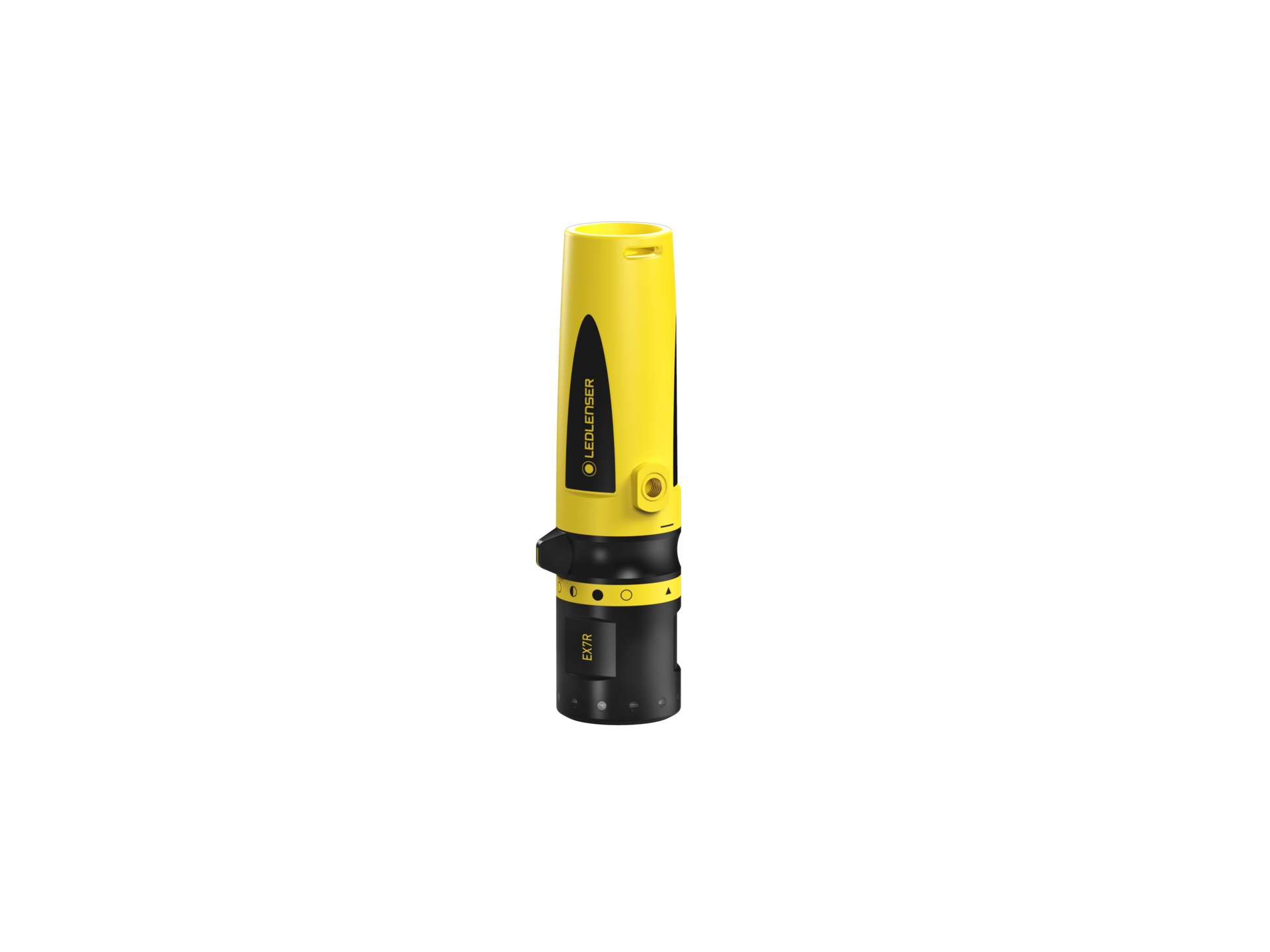

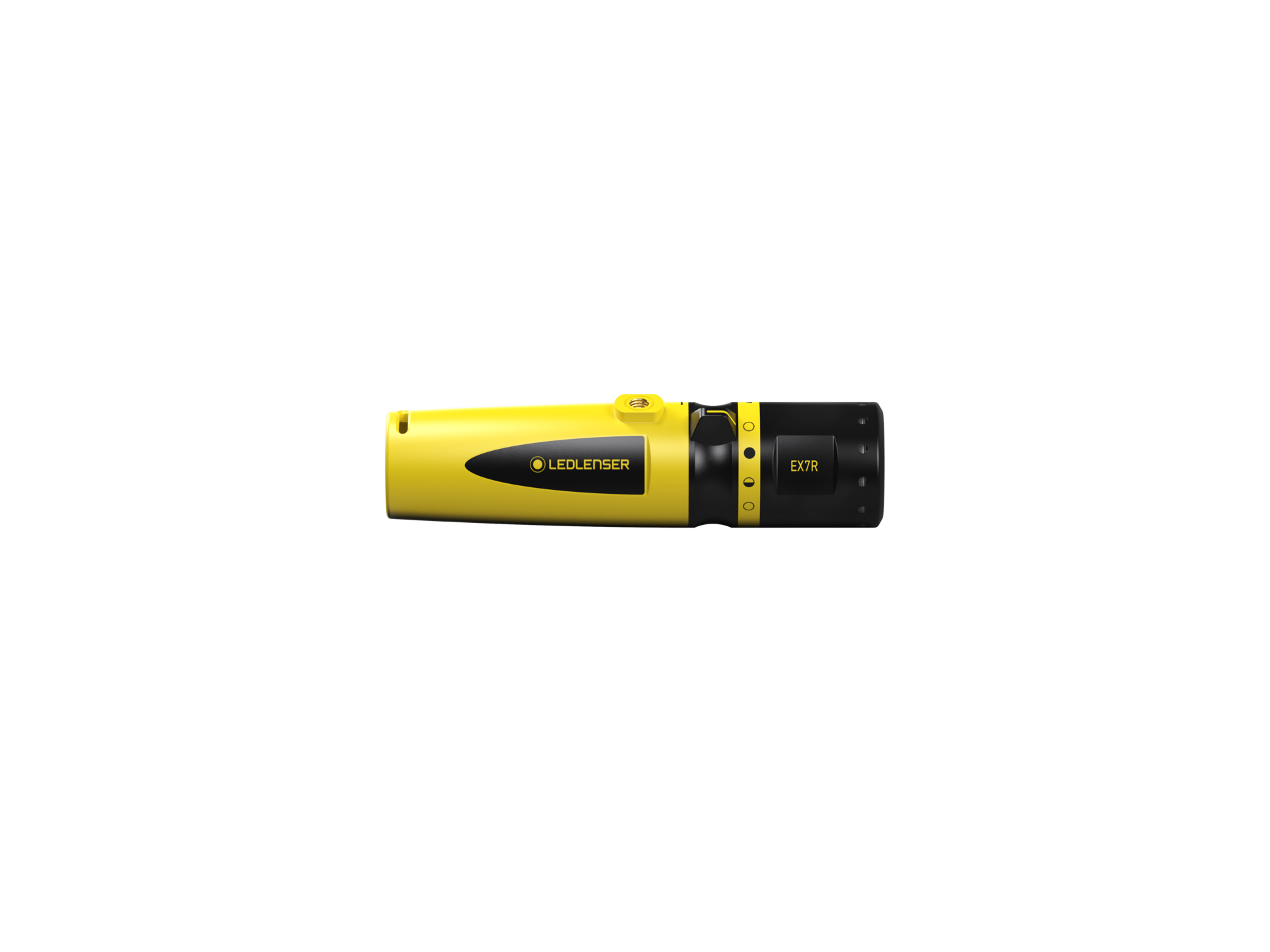

Flashlight EX7R

€185.00

Available, delivery time: 2-5 days

or
€185.00
or
Highlights:
  • Rechargeable via charging cradle
  • Magnetic Switch for easy operation with gloves and protective equipment
  • Focusable thanks to patented³ Advanced Focus System
  • Suitable for the highest gas and dust groups (IIC/IIIC)
  • Extreme dust and water protection (IP68)
  • Fast delivery
  • Free returns within 14 days
  • Secure payment
7 years
7 years
Get seven years warranty upon registration. *See our terms and conditions.
Nr: 500837

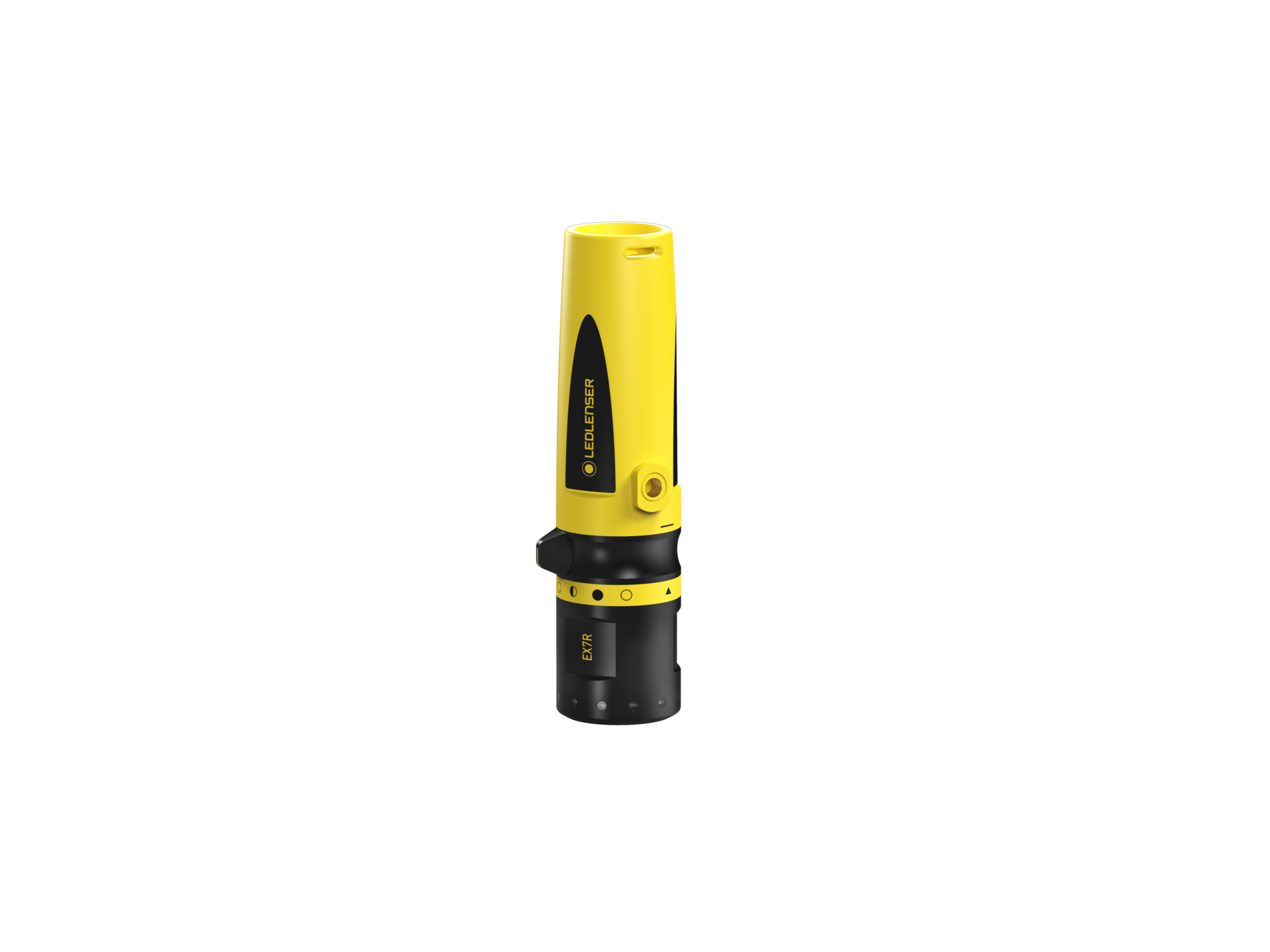

This Ex zone 1/21 flashlight makes work easier. The EX7R is certified for the best possible gas and dust groups IIC and IIIC in zones 1, 2, 21 and 22 (Ex ib op is IIC T4 Gb, Ex ib op is IIIC T135°C Db). With its Magnetic switch, the EX7R can easily be controlled with work gloves. And it’s the first rechargeable flashlight for Ex zone 1/21 with patented³ Advanced Focus System. The included charging cradle makes charging the lithium-ion battery easy. But with a maximum battery life of 45 hours it will rarely need to be recharged.
show more show less
Manufacturer:
Ledlenser GmbH & Co. KG
Kronenstraße 5-7 | 42699 Solingen | Germany
www.ledlenser.com

WEEE-Reg-No.: DE 20612570
LED
Beam distance (in m) 1
140
Max. Luminous flux (in lm) 1
220
CRI
65
Lightsource color temperature
6000 - 8000
Luminous flux (in lm)
Power 220
Low power 50
Beamdistance (in m)
Power 140
Low power 65
Runtime (in h)
Power 10
Low power 45
Power Low power
Luminous flux (in lm) 220 50
Beamdistance (in m) 140 65
Runtime (in h) 10 45
1 Measured values according to ANSI/PLATO FL 1 at the respective setting. If no setting is explicitly named, the values for luminous flux (lumen/lm) and luminous range (metres/m) refer to the brightest setting and the values for luminous duration (hours/h) to the lowest setting. A boost function (if available) can be used several times, but is only available for a short time at a time. In case the lamp is equipped with coloured LEDs, the measured values are given with white light or the white LED. If the lamp has different energy modes, the "energy saving mode" is the basis for the measurement.
Power supply
Runtime (in hours) 1
45
Rechargeable
Yes
Charging time (in minutes)
660
1 Measured values according to ANSI/PLATO FL 1 at the respective setting. If no setting is explicitly named, the values for luminous flux (lumen/lm) and luminous range (metres/m) refer to the brightest setting and the values for luminous duration (hours/h) to the lowest setting. A boost function (if available) can be used several times, but is only available for a short time at a time. In case the lamp is equipped with coloured LEDs, the measured values are given with white light or the white LED. If the lamp has different energy modes, the "energy saving mode" is the basis for the measurement.
Case
Dimensions
Length (in mm)
161
Head diameter (in mm)
41
Tube diameter (in mm)
41
Weight (in g)
228
Material
Materials
PC
Water and dust resistance
IP68
Drop test height (in m)
1
Working temperature (in C°)
-20 - 40
specific data for EX-Protection
EX gas zone
1
EX dust zone
21

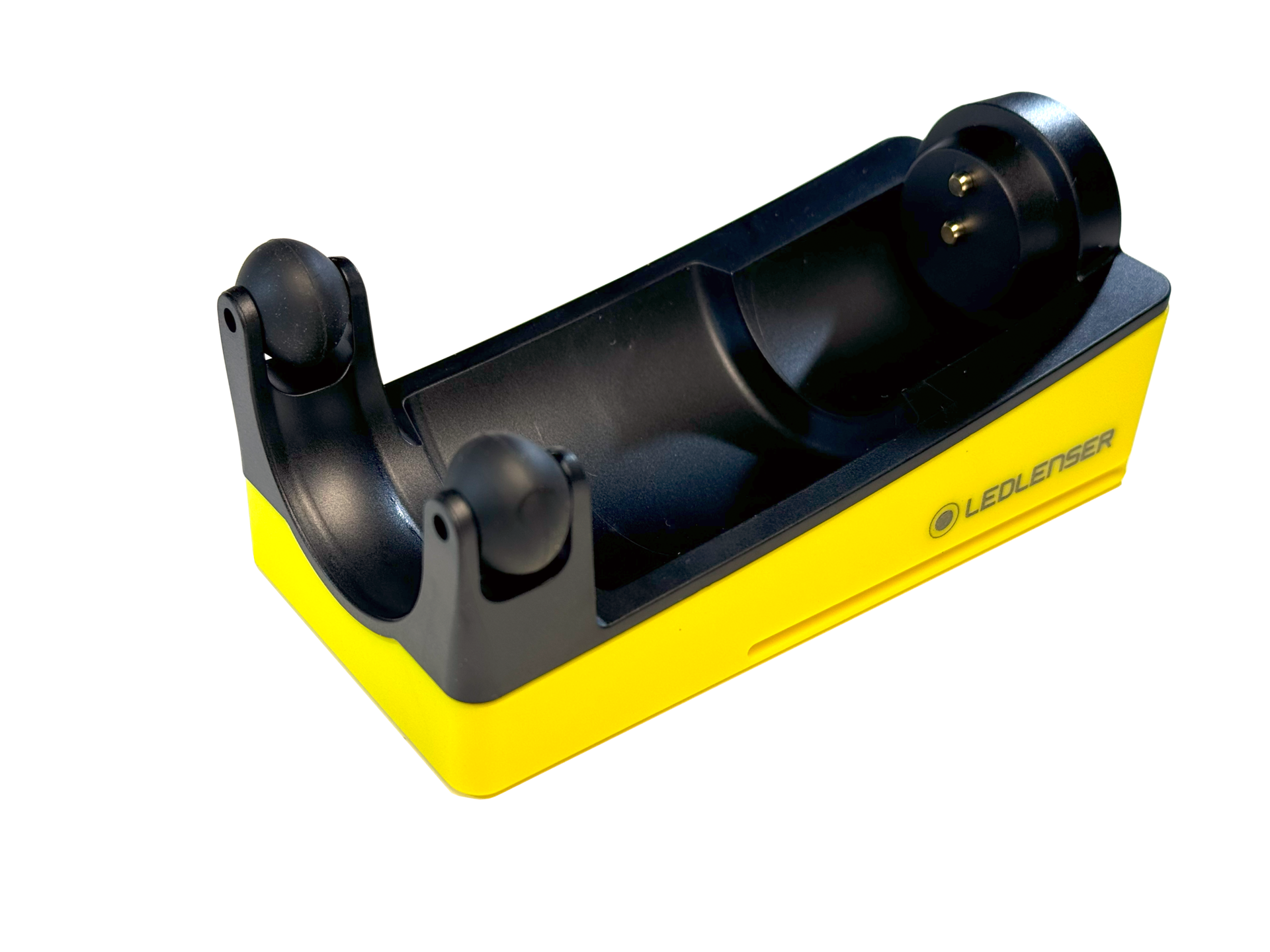

Charging tray - EX7R
Charging tray - EX7R

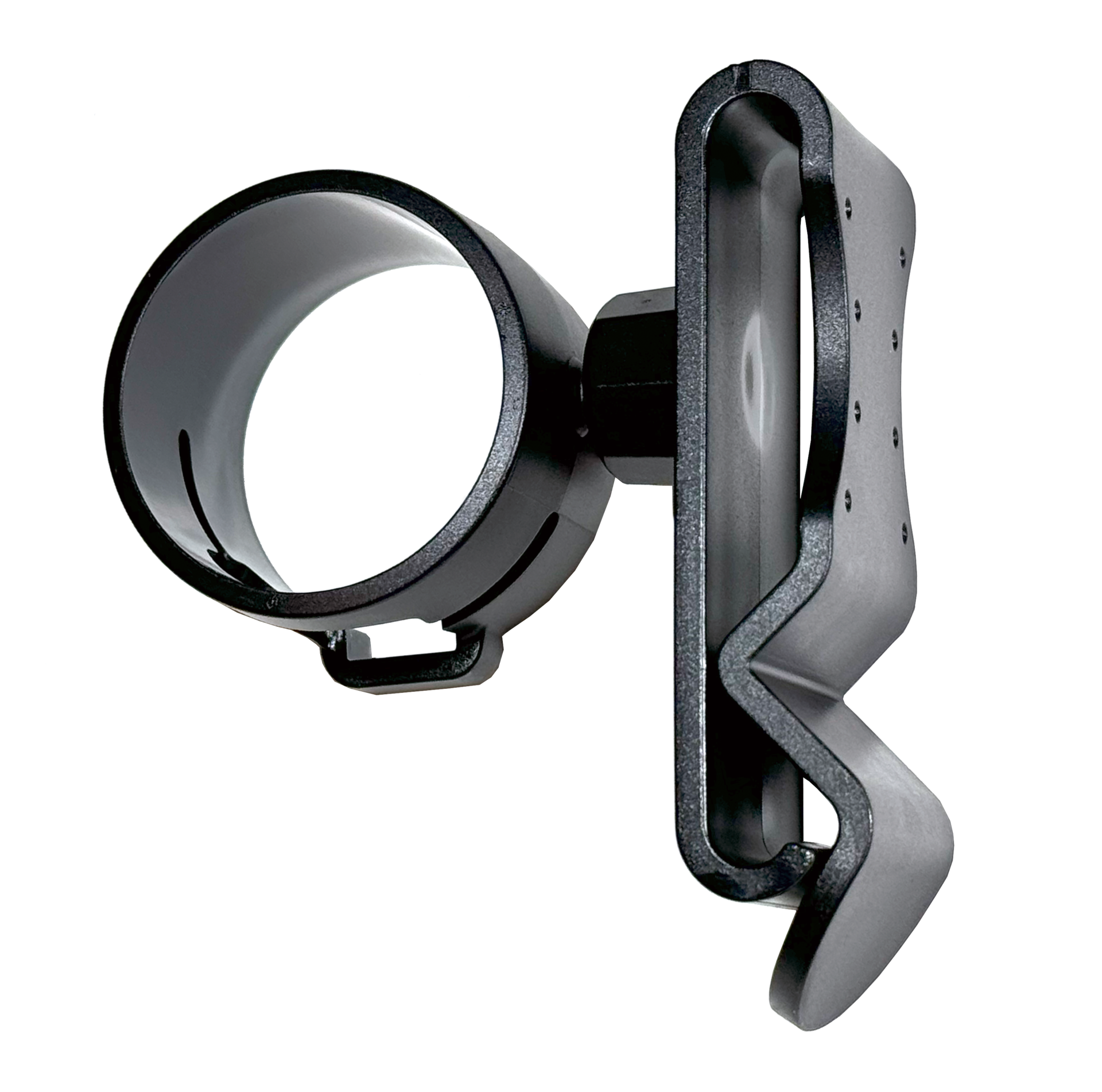

Intelligent Clip - EX7R
Intelligent Clip - EX7R

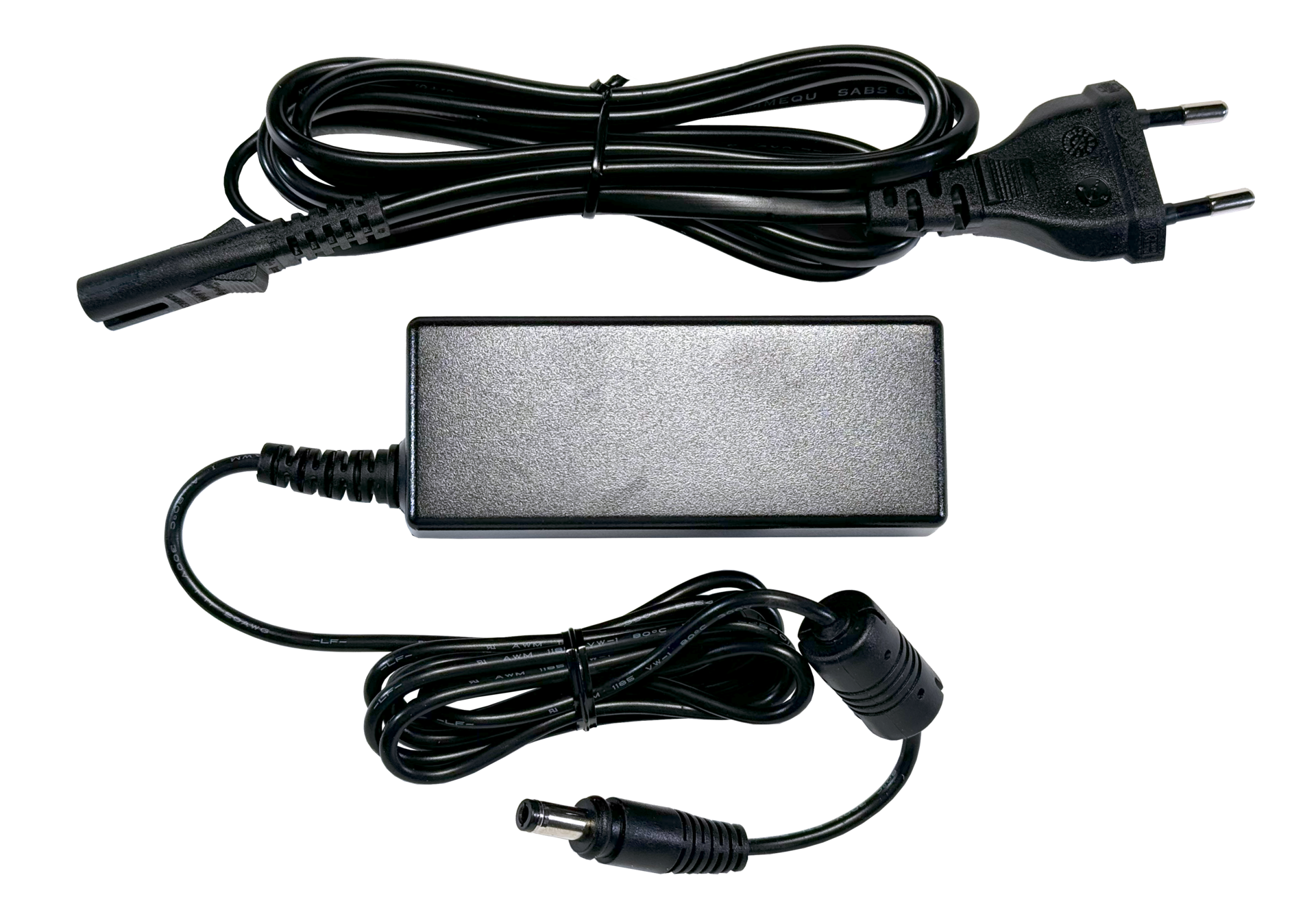

Power adapter - EX7R
Power adapter - EX7R
Certificate-bundle-EX-series-2020-09-21
Size Typ
7,98 MB pdf
EX7R-KC-2019-07-19
Size Typ
2,61 MB pdf
Z-eng-Ledlenser-23
Size Typ
364,35 kB pdf
Name Size Typ
Certificate-bundle-EX-series-2020-09-21 7,98 MB pdf
EX7R-KC-2019-07-19 2,61 MB pdf
Z-eng-Ledlenser-23 364,35 kB pdf

Features and technologies

  • Fixation Clip
    Fixation Clip
    A practical clip allows you to attach your Ledlenser wherever you need it.
  • Advanced Focus System
    Advanced Focus System
    Our patented Advanced Focus System (AFS) allows a seamless transition from homogeneous low beam to sharply focused high beam.

Which product is right for you?

Skip product gallery
Flashlight EX7R
Flashlight EX7R
Beam distance (in m) 140
Runtime (in hours) 45
Max. Luminous flux (in lm) 220
Rechargeable Yes
Length (in mm) 161
Charging time (in minutes) 660
Materials PC
Water and dust resistance IP68
Drop test height (in m) 1
Working temperature (in C°) -20 - 40
Scope of delivery: Charging tray - EX7R, Intelligent Clip - EX7R, Power adapter - EX7R

Available

€185.00
Flashlight EX4
Flashlight EX4
Beam distance (in m) 35
Runtime (in hours) 7
Max. Luminous flux (in lm) 50
Rechargeable No
Length (in mm) 140
Charging time -
Materials PC
Water and dust resistance IP68
Drop test height (in m) 1
Working temperature (in C°) -20 - 40
Scope of delivery: 1 set of batteries (AA)

Available

€44.90
Flashlight EX7
Flashlight EX7
Beam distance (in m) 120
Runtime (in hours) 45
Max. Luminous flux (in lm) 200
Rechargeable No
Length (in mm) 161
Charging time -
Materials PC
Water and dust resistance IP68
Drop test height (in m) 1
Working temperature (in C°) -20 - 40
Scope of delivery: 1 set of batteries (AA), Intelligent clip, Belt clip

Available again soon

€99.90
Details

Accessories

Skip product gallery
Car Charger
Car Charger

No longer available

€19.90
5 Station Charging Panel
5 Station Charging Panel

Available

€69.90
Signal Cone 42mm
Signal Cone 42mm

No longer available

€6.90
5 Station Charging Panel
5 Station Charging Panel

No longer available

€69.90
