Area Lights

Lantern AL10R Work

Engraving - now free of charge

- now free of charge

Preview

Hint Price is per piece. Please note that only letters of the Latin alphabet can be engraved. The following special characters are permitted: ,.-!"§$%&/()=?#'*+ etc. If you want to engrave a heart, copy this symbol:❤︎

Font

MetaBook

Segoe Print regular

Britannic bold

Calibri italic

Share your configuration

€299.00

Available, delivery time: 2-5 days

Highlights:

Powerful lantern with up to 6300 lm, 5 brightness levels and 5-step tunable white light

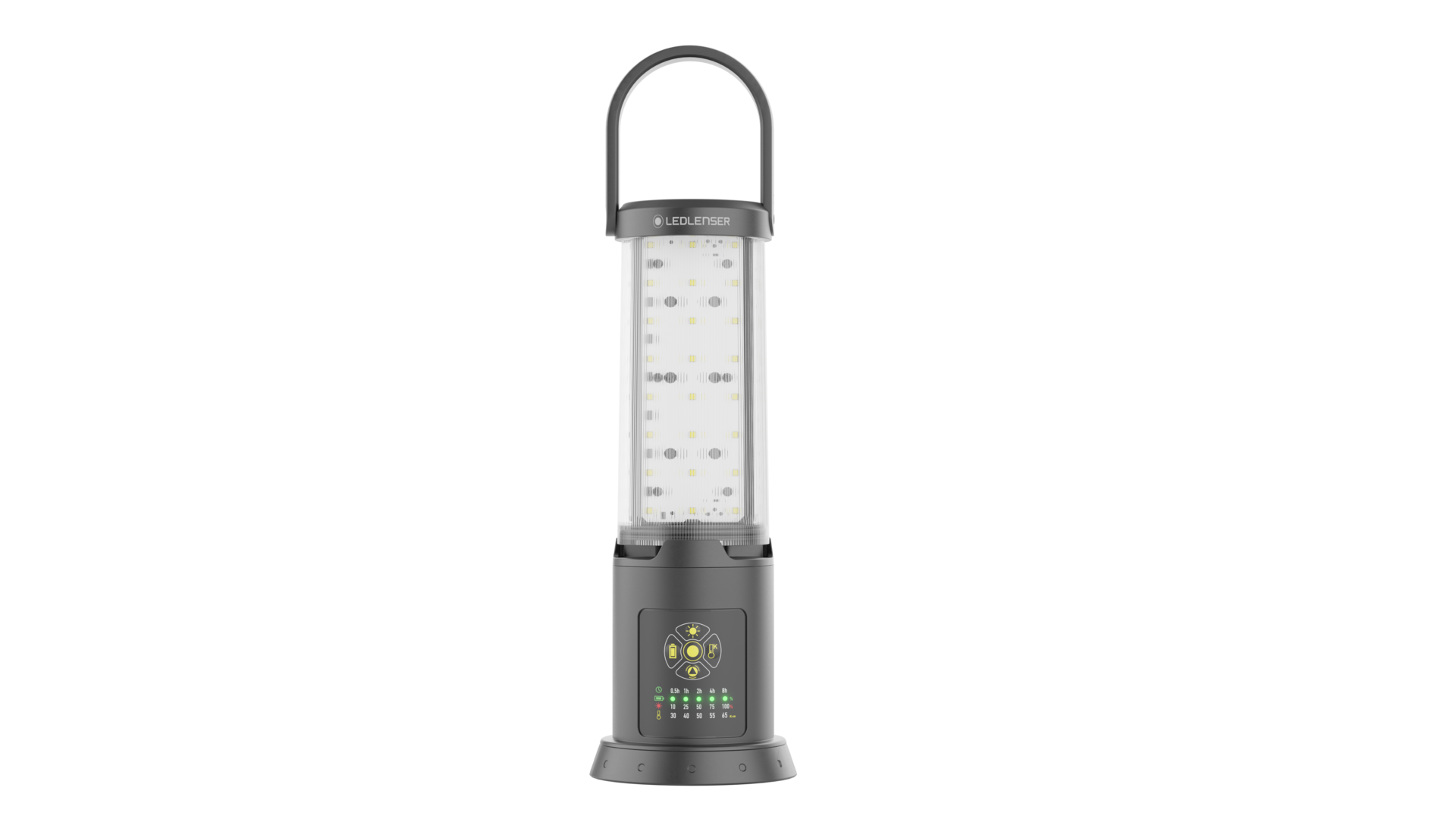

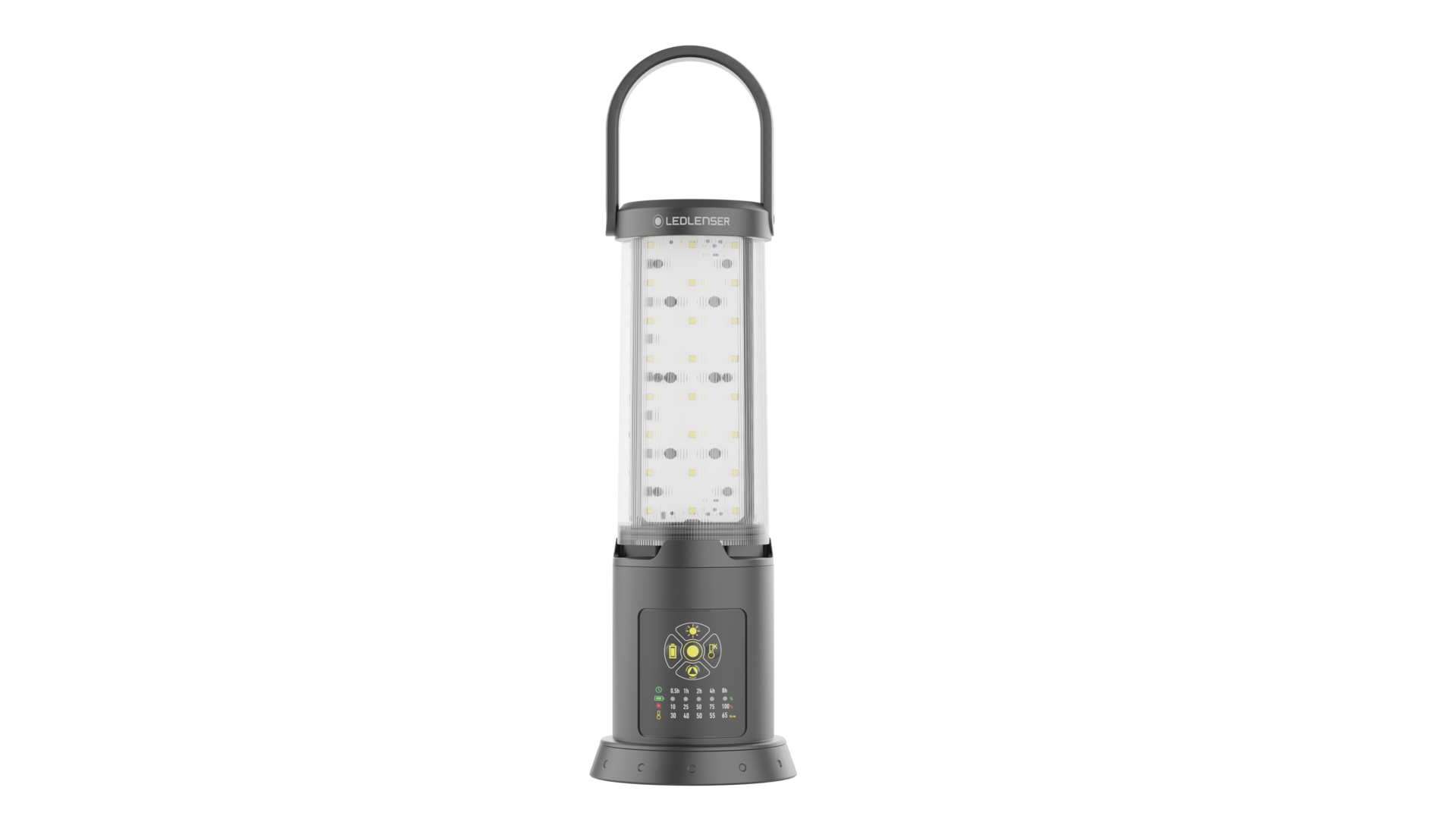

3 individually switchable light panels for efficient illumination
Hybrid Power; powerful rechargeable battery as well as mains operation
High water and dust protection (IP67)

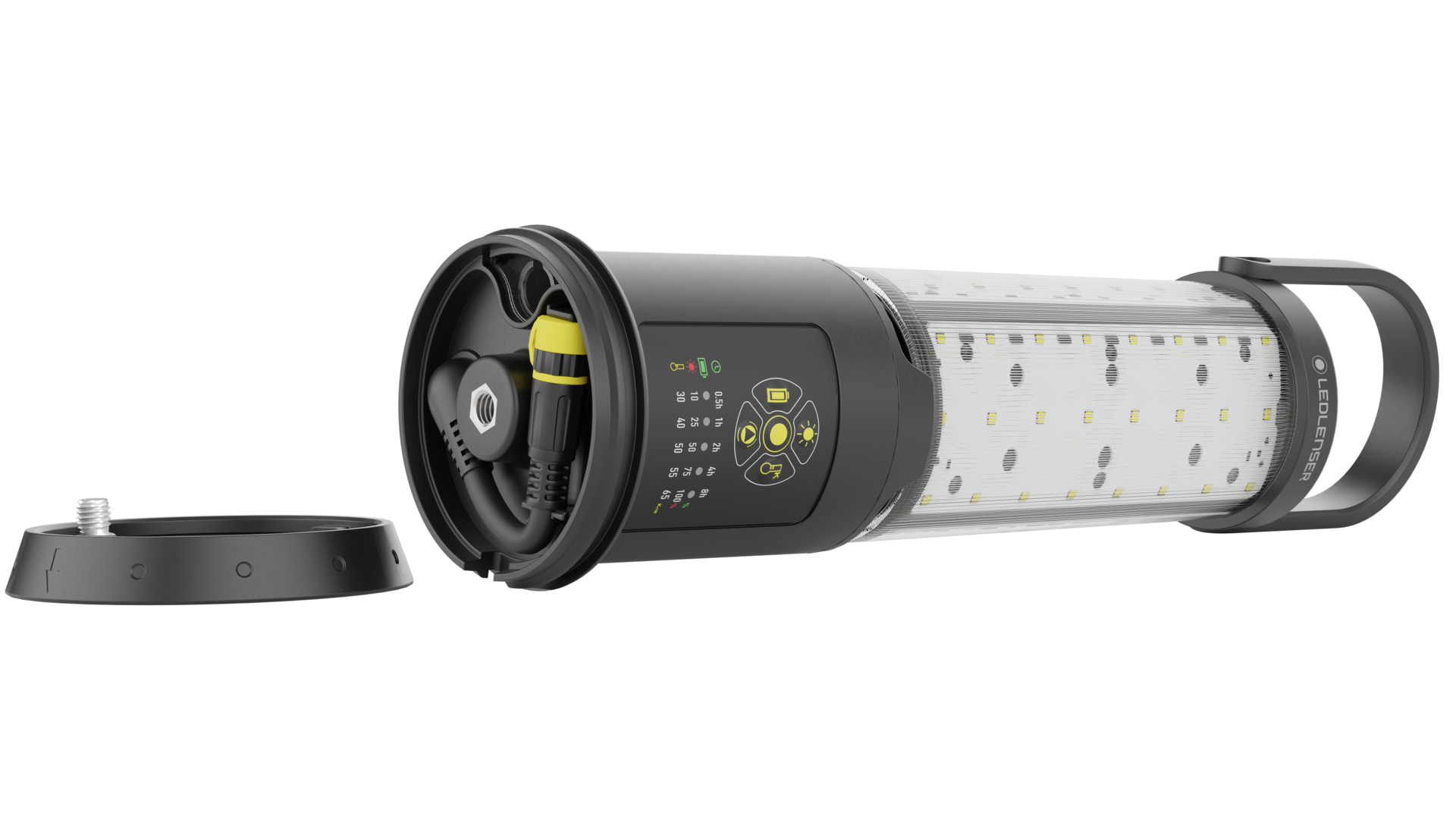

Flexible mounting via silicone hook and thread for tripod mounting

Fast delivery
Free returns within 14 days
Secure payment

Description

2+5 years

Get seven years warranty upon registration. *See our terms and conditions.

Nr: 502917

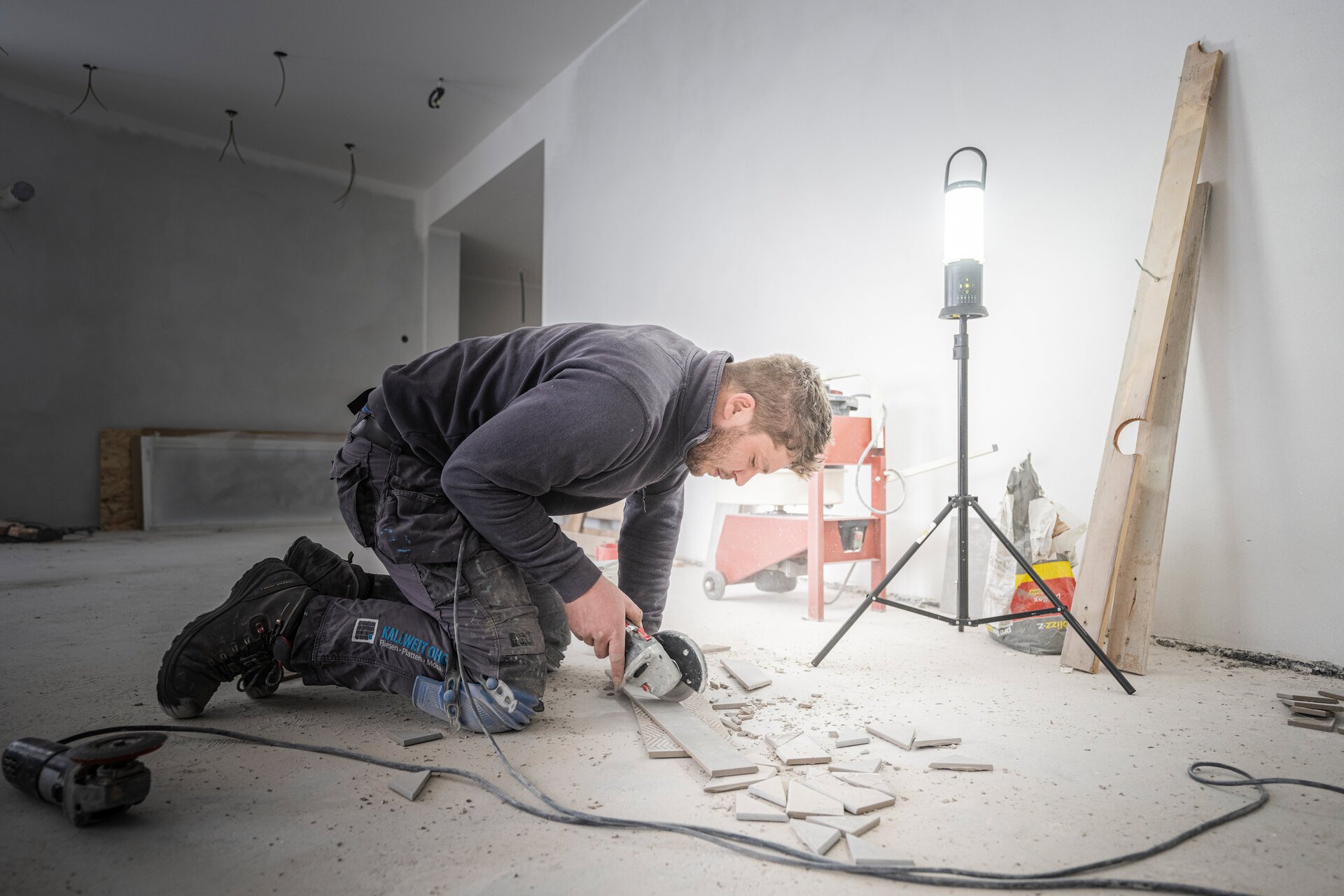

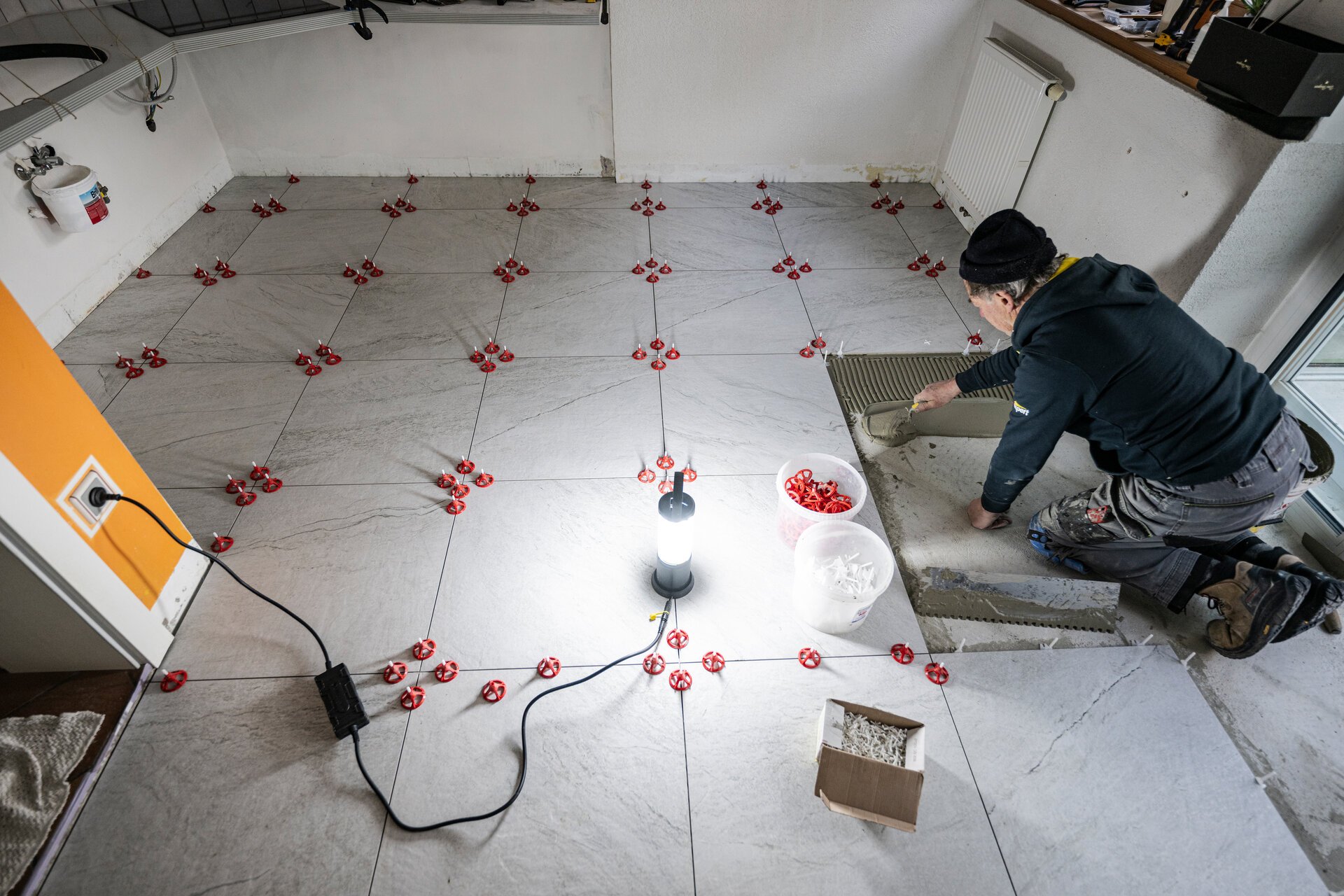

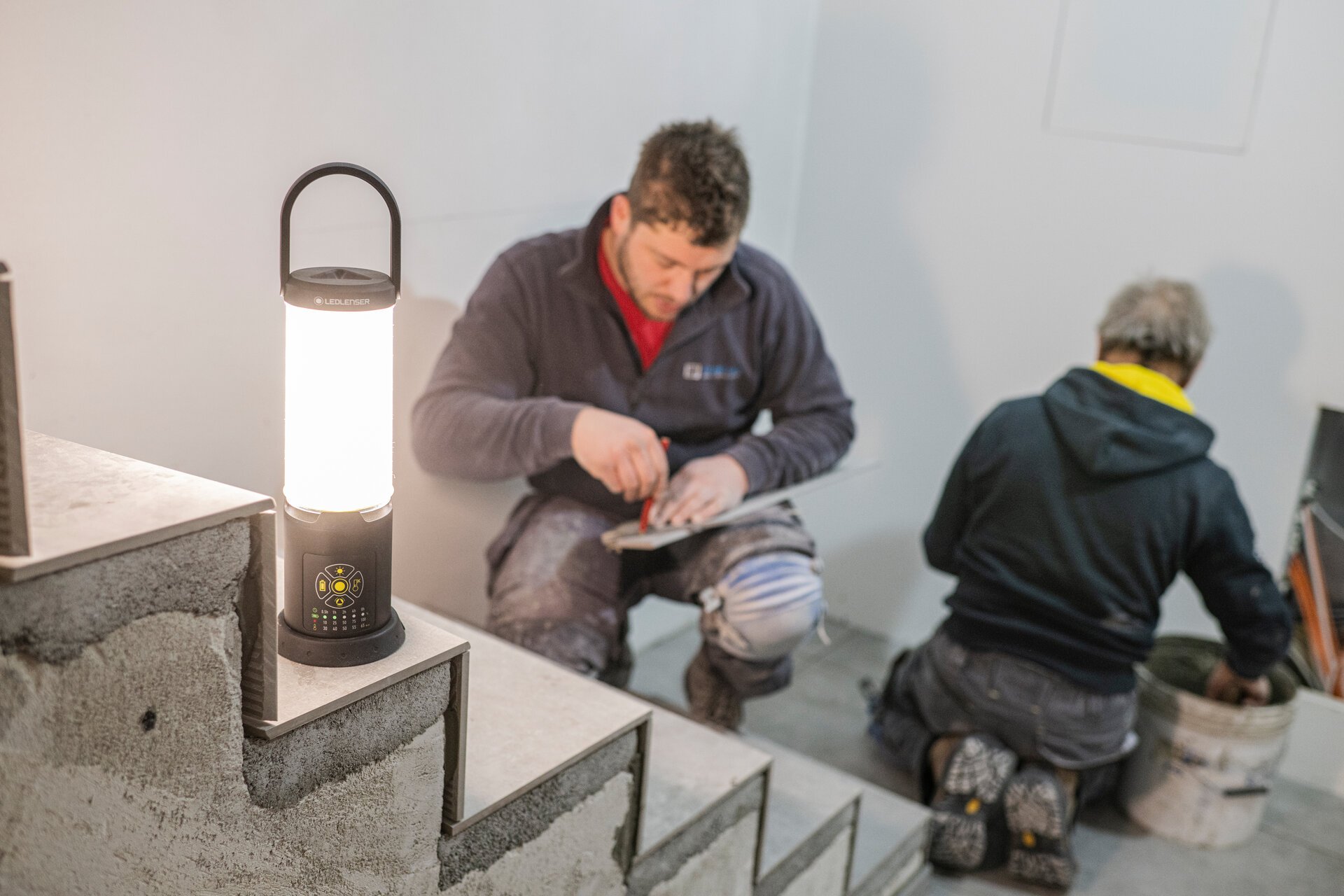

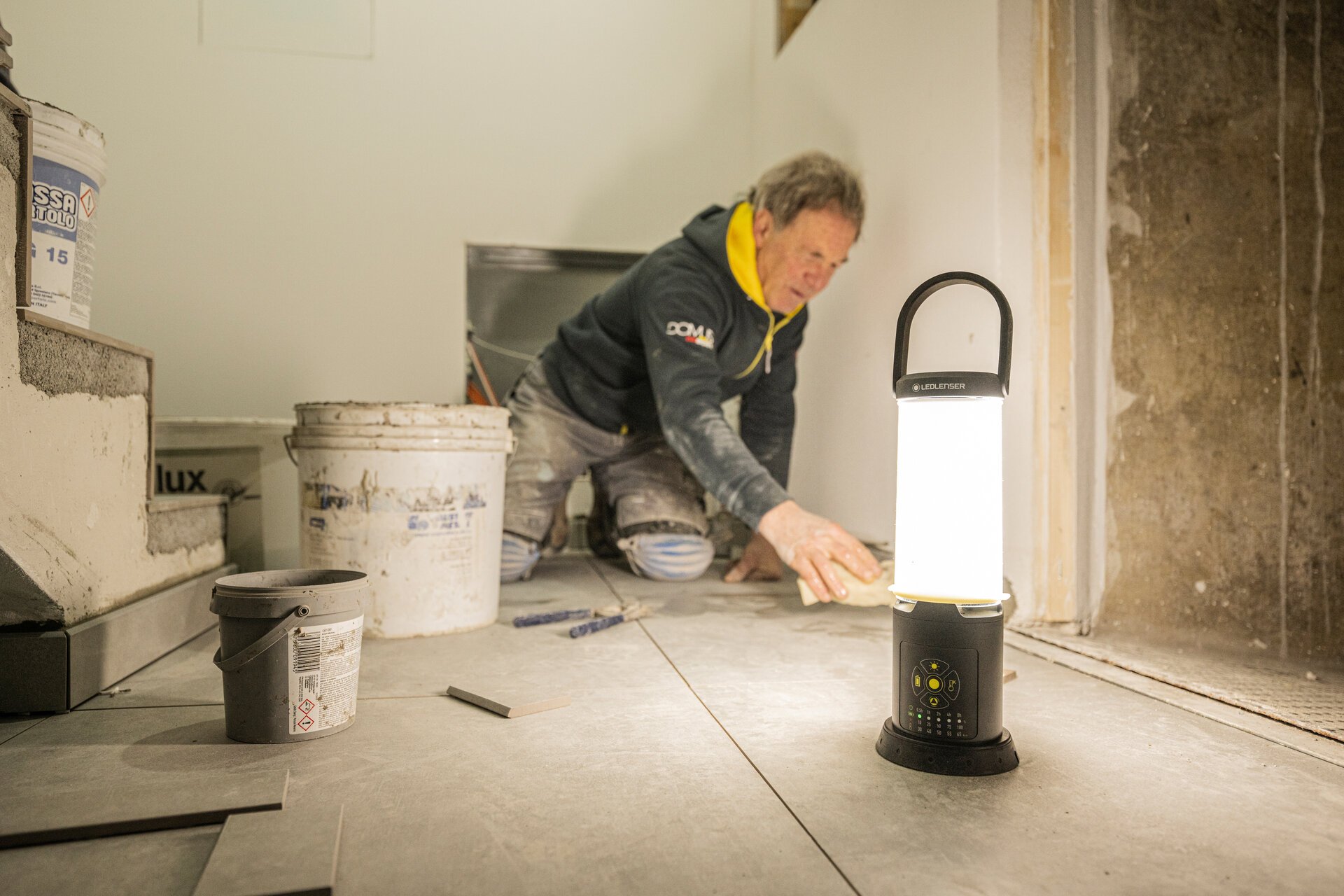

360°, 240° or 120° illumination of large indoor and outdoor worksites has never been easier: Switch the three light panels of our Ledlenser AL10R Work on and off individually to focus on the essential, save energy and reduce light loss.

Manufacturer:
Ledlenser GmbH & Co. KG
Kronenstraße 5-7 | 42699 Solingen | Germany
www.ledlenser.com

WEEE-Reg-No.: DE 20612570

Technical data

LED

Beam distance (in m) ¹

Max. Luminous flux (in lm) ¹

6300

CRI

Lightsource color temperature

3000 - 6500

Luminous flux (in lm)

Power	6300
75%	5100
50%	3600
25%	1800
10%	750

Beamdistance (in m)

Power	60
75%	50
50%	40
25%	30
10%	15

Runtime (in h)

Power	1
75%	1.25
50%	2
25%	4
10%	9.5

Attributes	Power	75%	50%	25%	10%
Luminous flux (in lm)	6300	5100	3600	1800	750
Beamdistance (in m)	60	50	40	30	15
Runtime (in h)	1	1.25	2	4	9.5

1 Measured values according to ANSI/PLATO FL 1 at the respective setting. If no setting is explicitly named, the values for luminous flux (lumen/lm) and luminous range (metres/m) refer to the brightest setting and the values for luminous duration (hours/h) to the lowest setting. A boost function (if available) can be used several times, but is only available for a short time at a time. In case the lamp is equipped with coloured LEDs, the measured values are given with white light or the white LED. If the lamp has different energy modes, the "energy saving mode" is the basis for the measurement.

Power supply

Runtime (in hours) ¹

9.5

Rechargeable

Yes

Charging time (in minutes)

390

Case

Dimensions

Weight (in g)

1397

Material

Materials

Aluminum alloy

Water and dust resistance

IP67

Drop test height (in m)

1.5

Working temperature (in C°)

-20 - 40

Scope of delivery

Power Adapter Area Lights

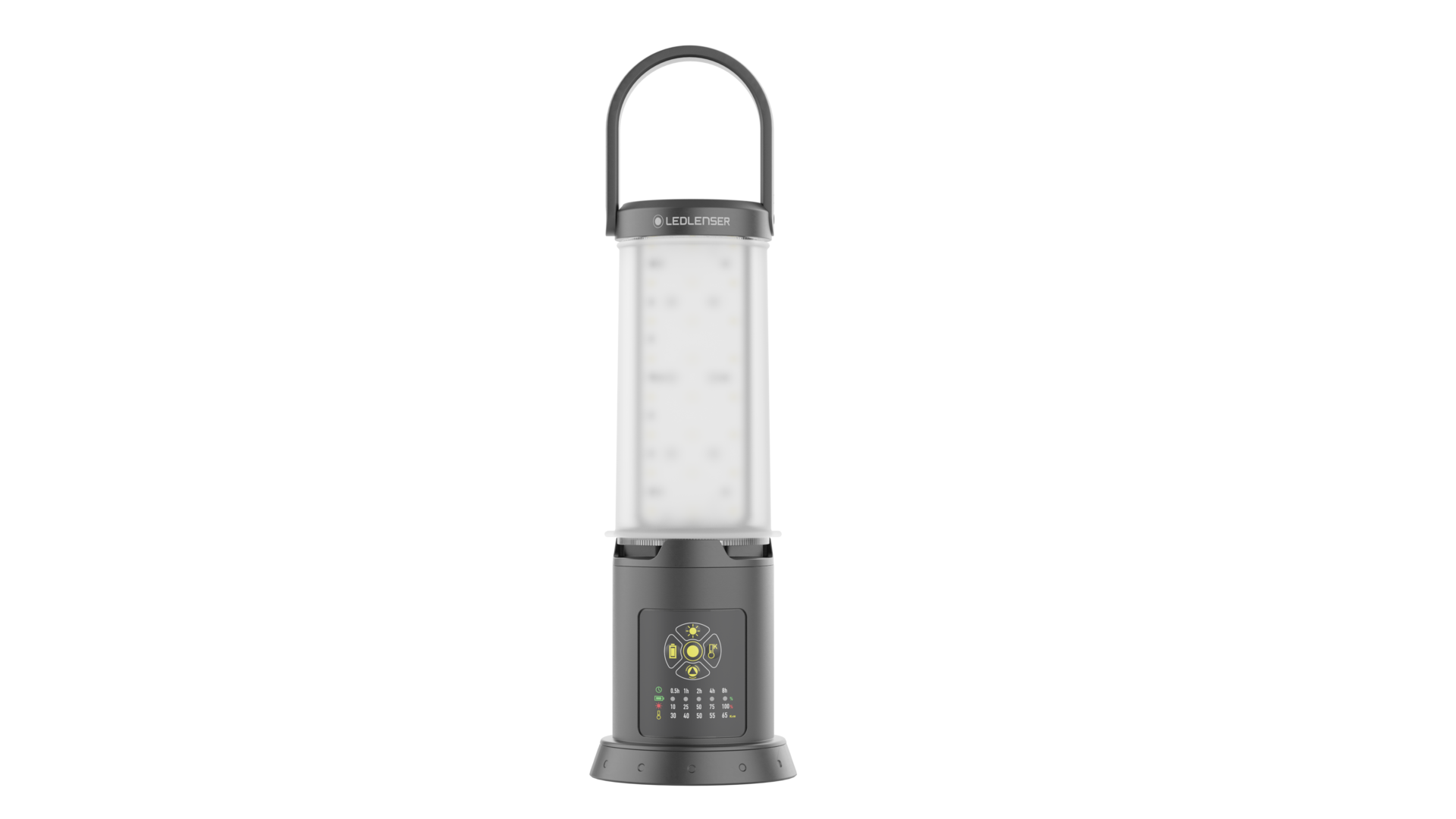

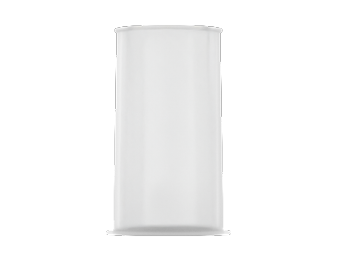

Diffuser - AL10R

Downloads

502917_AL10R-Work

Size	Typ	Files
70,46 kB	pdf

Name	Size	Typ	Files
502917_AL10R-Work	70,46 kB	pdf

Features and technologies

Chemical Resistant

Lamps with this feature are particularly resistant to frequently occurring chemical influences, such as oil, diesel or solvents.
Transportation Lock

The optionally activatable lock function prevents accidental switching on of the light in the backpack or suitcase.
Memory Function

The Memory Function sets the light so that it starts in the last light mode or brightness level used when it is switched on.
Tunable White

Cool white and warm white LEDs allow you to choose between different color temperatures.
Cooling Technology

The Cooling Technology (CT) reduces LED heat to the optimal level by means of the intelligent use of cooling elements. This ensures highly efficient use of energy, increased illuminating power, and especially long-lasting LEDs.
Hybrid Power

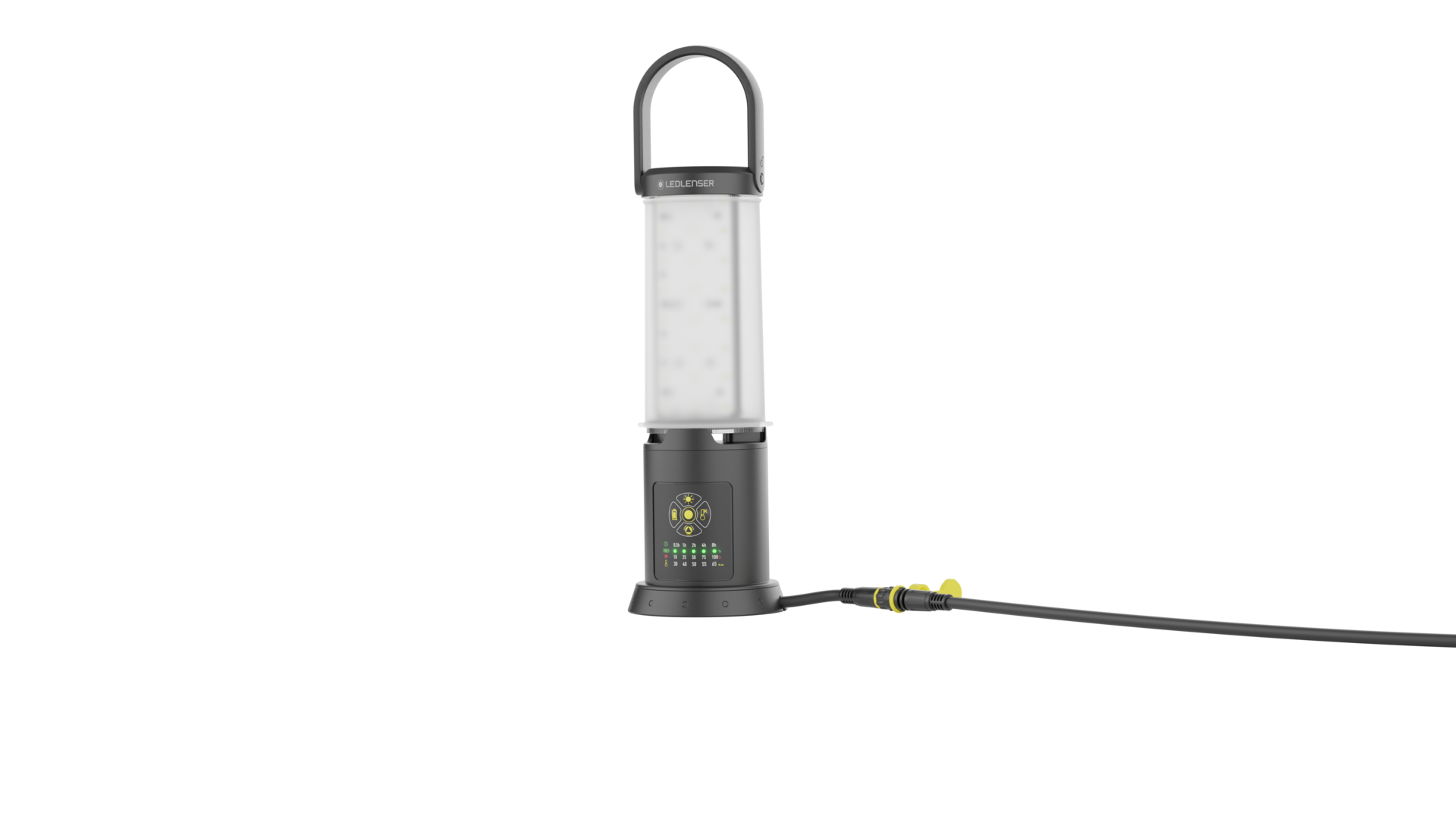

Battery or mains operation – products with Hybrid Power are designed to be used with both energy sources. Products are charged simultaneously in mains operation.
Temperature Control System

Temperature Control protects you from burns and the LED from overheating.
