iH-Series

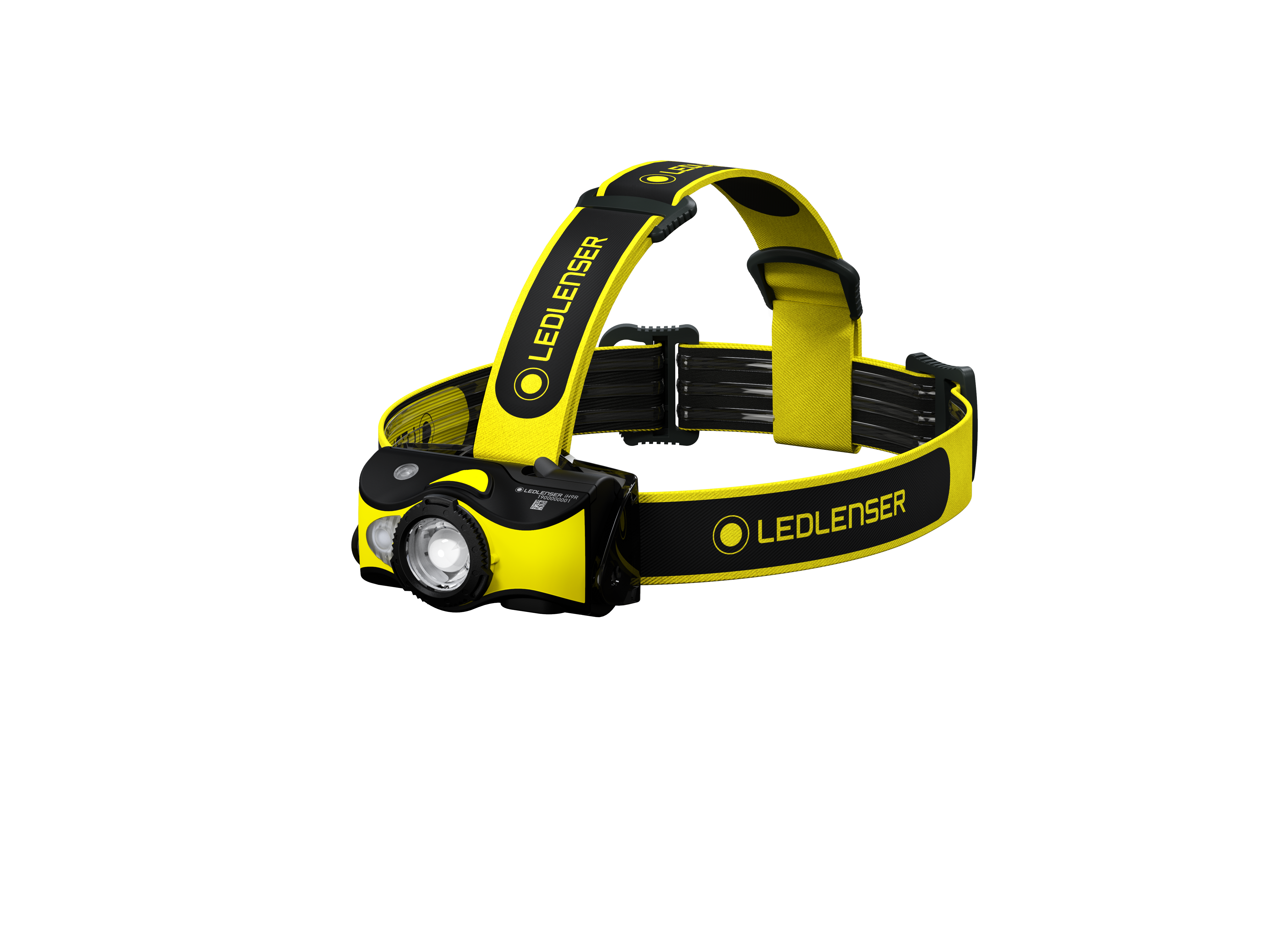

Headlamp iH9R

€99.90

Available, delivery time: 2-5 days

Highlights:

Multicolour LEDs in red, green and blue
Two energy modes (constant light and energy saving) for either especially consistent or energy-saving light
Two types of batteries (lithium-ion and AA) provide the combined benefits of rechargeable and replaceable batteries
Simple charging of the lithiumion battery via magnetic USB cable
Innovative mounting system allows for simple removal and positioning of the lamp head for maximum flexibility
Advanced focus system for easy and intuitive adjustment of the light beam
Helmet mounting options: Rubber-coated head strap, adhesive mounting material

Fast delivery
Free returns within 14 days
Secure payment

Description

7 years

Get seven years warranty upon registration. *See our terms and conditions.

Nr: 502023

The multi-talent for different conditions. Power with the included rechargeable battery or AA alkaline batteries. Two power modes (Constant Light and Energy Saving), a detachable, variable lamp head and different mounting options for helmets for maximum flexibility. The additional Multicolor LED (red, green and blue) round off the equipment.

Manufacturer:
Ledlenser GmbH & Co. KG
Kronenstraße 5-7 | 42699 Solingen | Germany
www.ledlenser.com

WEEE-Reg-No.: DE 20612570

Technical data

LED

Beam distance (in m) ¹

200

Max. Luminous flux (in lm) ¹

600

CRI

Lightsource color temperature

6000 - 7500

Luminous flux (in lm)

Boost	600
Power	220
Mid power	120
Low power	20

Beamdistance (in m)

Boost	200
Power	140
Mid power	100
Low power	40

Runtime (in h)

Boost	-
Power	3
Mid power	8
Low power	40

Attributes	Boost	Power	Mid power	Low power
Luminous flux (in lm)	600	220	120	20
Beamdistance (in m)	200	140	100	40
Runtime (in h)	-	3	8	40

1 Measured values according to ANSI/PLATO FL 1 at the respective setting. If no setting is explicitly named, the values for luminous flux (lumen/lm) and luminous range (metres/m) refer to the brightest setting and the values for luminous duration (hours/h) to the lowest setting. A boost function (if available) can be used several times, but is only available for a short time at a time. In case the lamp is equipped with coloured LEDs, the measured values are given with white light or the white LED. If the lamp has different energy modes, the "energy saving mode" is the basis for the measurement.

Power supply

Runtime (in hours) ¹

Rechargeable

Yes

Charging time (in minutes)

270

Case

Dimensions

Weight (in g)

139

Material

Materials

PC + ABS

Water and dust resistance

IP54

Drop test height (in m)

Working temperature (in C°)

-20 - 40

Scope of delivery

Helmet Connecting Kit Type E

Li-Ion Rechargeable Battery Pack 1550 mAh

Magnetic Charging Cable Type A

Downloads

DECLARATION OF CONFORMITY iH9R_2019-01-29

Size	Typ	Files
608,85 kB	pdf

Warnings_25Languages_V5-50x38cm-20240507

Size	Typ	Files
4,08 MB	pdf

Name	Size	Typ	Files
DECLARATION OF CONFORMITY iH9R_2019-01-29	608,85 kB	pdf
Warnings_25Languages_V5-50x38cm-20240507	4,08 MB	pdf

Features and technologies

Blue Light

Blue light improves the visibility of liquids in the dark.
Transportation Lock

The optionally activatable lock function prevents accidental switching on of the light in the backpack or suitcase.
Red Reading Light

Red light is ideal for reading because it is less strenuous on the eyes, hardly dazzles and does not wake up fellow human beings in dark surroundings.
Green Light

Green light is often used for hunting or general animal observation, since wild animals can hardly notice it.
Magnetic Charge System

With the Magnetic Charge System, the charging cable can be quickly and easily attached to the light.
Rapid Focus

Rapid Focus allows the light beam to be adjusted as fast and ergonomic as possible - even single-handed.
Cooling Technology

The Cooling Technology (CT) reduces LED heat to the optimal level by means of the intelligent use of cooling elements. This ensures highly efficient use of energy, increased illuminating power, and especially long-lasting LEDs.
Advanced Focus System

Our patented Advanced Focus System (AFS) allows a seamless transition from homogeneous low beam to sharply focused high beam.
Smart Light Technology

The smart light technology allows you to easily program your individual range of functions through different button and switch combinations.
Dual Power Source

Our Dual Power Source allows you to choose between the rechargeable Ledlenser battery or a disposable battery.
