HF-Series

Headlamp HF4R Work

Model

Headlamp HF4R Work €44.90 Nr: 502793

Headlamp HF4R Signature €49.90 Nr: 502884

Headlamp HF4R Core €39.90 Nr: 502791

Need help finding the right product? Go to comparison

€44.90

Available, delivery time: 2-5 days

Highlights:

Slim headlamp with three brightness levels as well as red front light
Bright and perfectly balanced light pattern; two light sources for short and long-range illumination
Protective elements at the front for high impact resistance; suitable for continuous immersion in water (IP68)
Efficient battery; easily rechargeable via Magnetic Charge System, with battery status indicator
Mounting option on helmet via rubberized headband or enclosed helmet mount and adapter

Fast delivery
Free returns within 14 days
Secure payment

Product sets:

Discover our exclusive sets and save money compared to buying individual items!

Learn more

Description

2+5 years

Get seven years warranty upon registration. *See our terms and conditions.

Nr: 502793

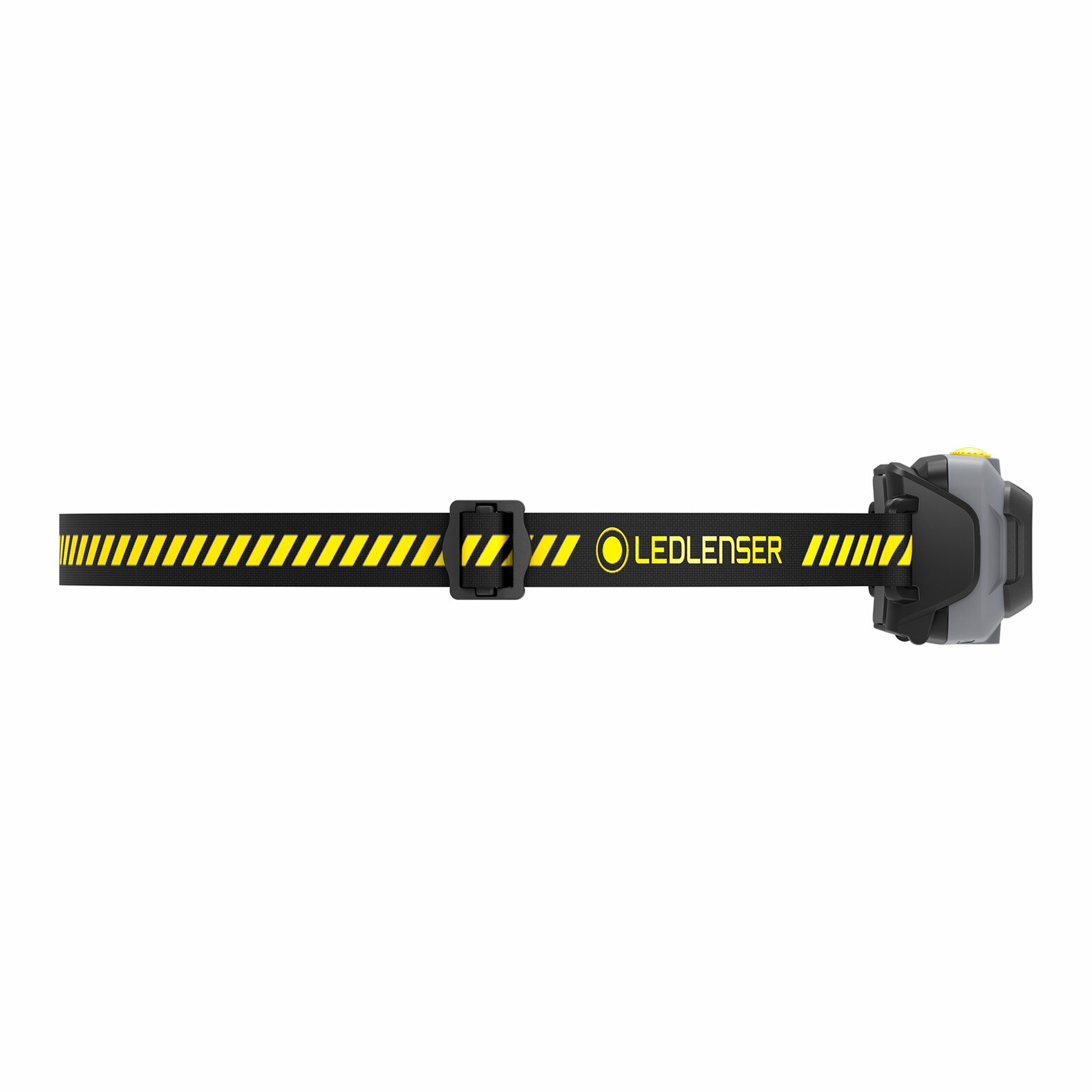

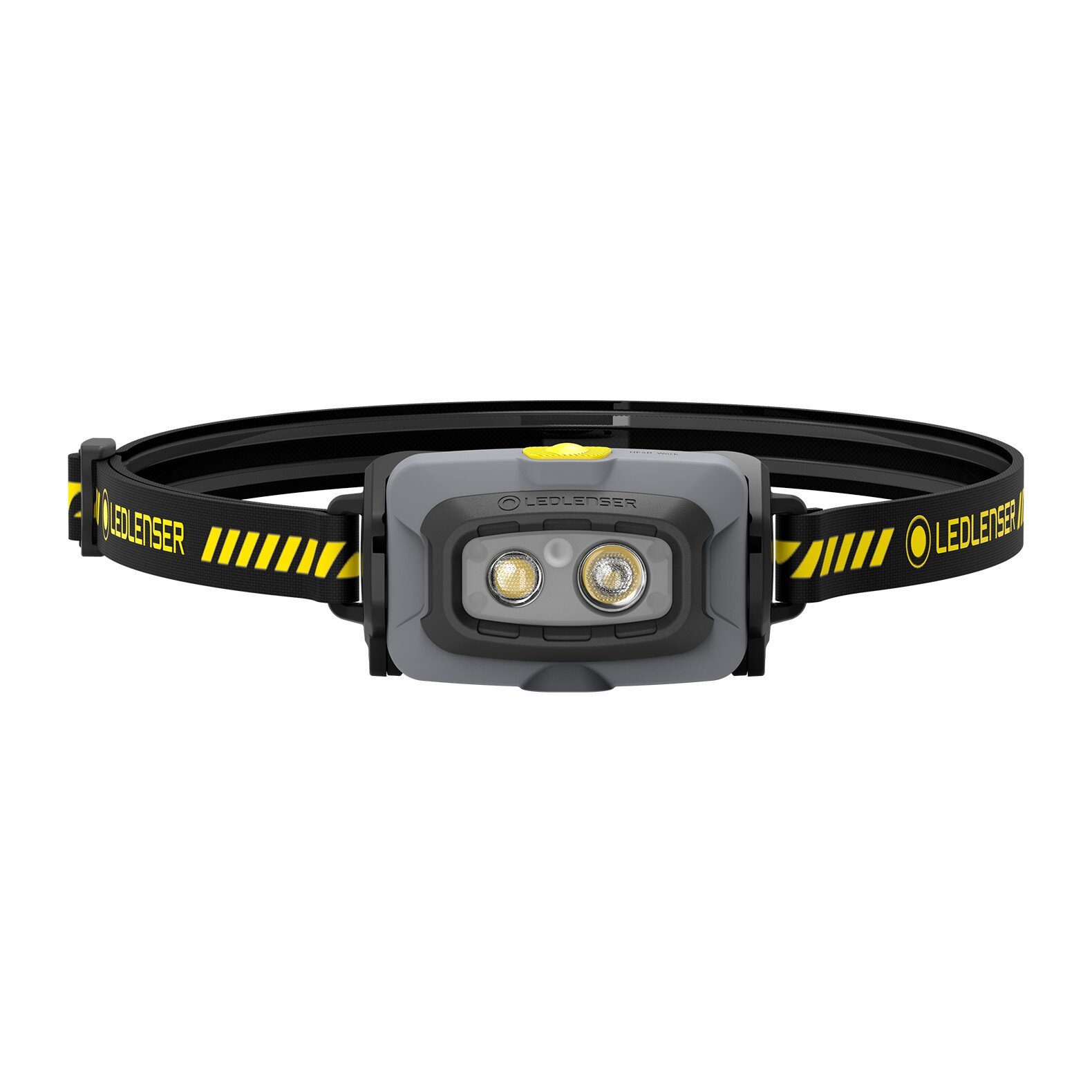

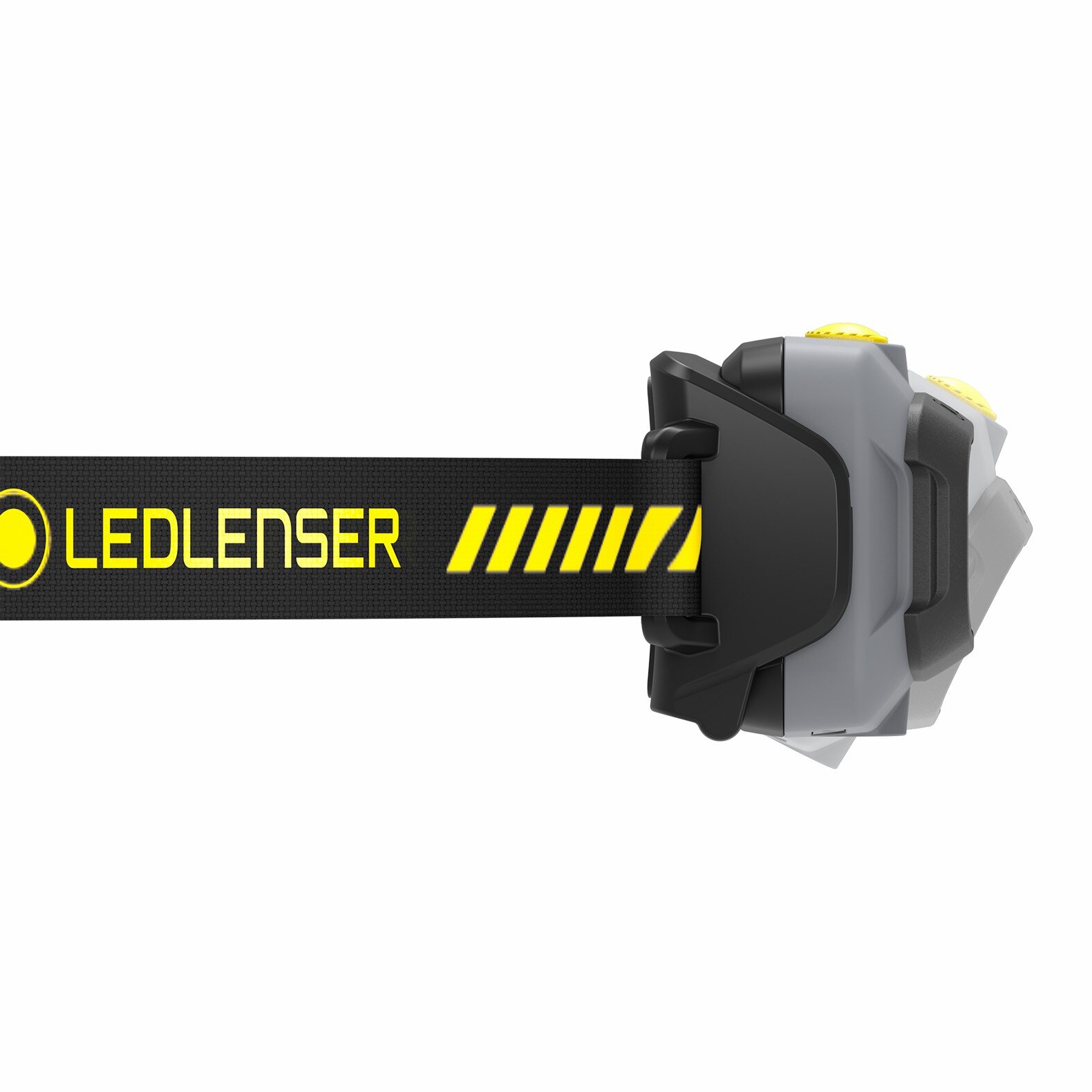

The Ledlenser HF4R Work is our slim and lightweight basic model for industry and trade. In addition to three brightness levels and a red front light, the HF4R Work is equipped with a high color rendering index for close-range work. The steplessly tilting lamp head provides flexibility. Protective elements at the front prepare the lamp for demanding applications – thanks to its efficient battery, you can use the HF4R Work for up to eight hours at mid-intensity. You can easily charge the integrated battery via Magnetic Charge System. Other clever features include the handy transportation lock as well as various mounting options on helmets.

Manufacturer:
Ledlenser GmbH & Co. KG
Kronenstraße 5-7 | 42699 Solingen | Germany
www.ledlenser.com

WEEE-Reg-No.: DE 20612570

Technical data

LED

Beam distance (in m) ¹

130

Max. Luminous flux (in lm) ¹

500

CRI

Lightsource color temperature

4600 - 5400

Luminous flux (in lm)

Boost	500
Power	300
Mid power	80
Low power	20

Beamdistance (in m)

Boost	130
Power	100
Mid power	60
Low power	15

Runtime (in h)

Boost	-
Power	2.5
Mid power	8
Low power	35

Attributes	Boost	Power	Mid power	Low power
Luminous flux (in lm)	500	300	80	20
Beamdistance (in m)	130	100	60	15
Runtime (in h)	-	2.5	8	35

1 Measured values according to ANSI/PLATO FL 1 at the respective setting. If no setting is explicitly named, the values for luminous flux (lumen/lm) and luminous range (metres/m) refer to the brightest setting and the values for luminous duration (hours/h) to the lowest setting. A boost function (if available) can be used several times, but is only available for a short time at a time. In case the lamp is equipped with coloured LEDs, the measured values are given with white light or the white LED. If the lamp has different energy modes, the "energy saving mode" is the basis for the measurement.

Power supply

Runtime (in hours) ¹

Rechargeable

Yes

Charging time (in minutes)

180

Case

Dimensions

Weight (in g)

Material

Materials

Water and dust resistance

IP68

Drop test height (in m)

Working temperature (in C°)

-20 - 40

Scope of delivery

Helmet connecting kit

Connect adapter - HF

Magnetic charging cable (USB-C)

Downloads

Warnings_25Languages_V5-50x38cm-20240507

Size	Typ	Files
4,08 MB	pdf

Name	Size	Typ	Files
Warnings_25Languages_V5-50x38cm-20240507	4,08 MB	pdf

All-Round Work Set

1x Headlamp HF4R Work (€44.90)

1x Floodlight AF4R Work (€139.00)

1x Worklight W2R Work (€34.90)

Price advantage of the set:

€218.80

€184.35

Features and technologies

Backup Mode

In this mode, the remaining runtime is about an hour, so you can safely finish your work or find your way home.
Red Light

Red light has the ability to preserve the natural night vision of the human eye.
Memory Function

The Memory Function sets the light so that it starts in the last light mode or brightness level used when it is switched on.
Transportation Lock

The optionally activatable lock function prevents accidental switching on of the light in the backpack or suitcase.
Temperature Control System

Temperature Control protects you from burns and the LED from overheating.
Magnetic Charge System

With the Magnetic Charge System, the charging cable can be quickly and easily attached to the light.
Fusion Beam

Fusion Beam simultaneously enables a homogenous close-up wide flood beam and sharply focused long-distance beam.
