H-Series

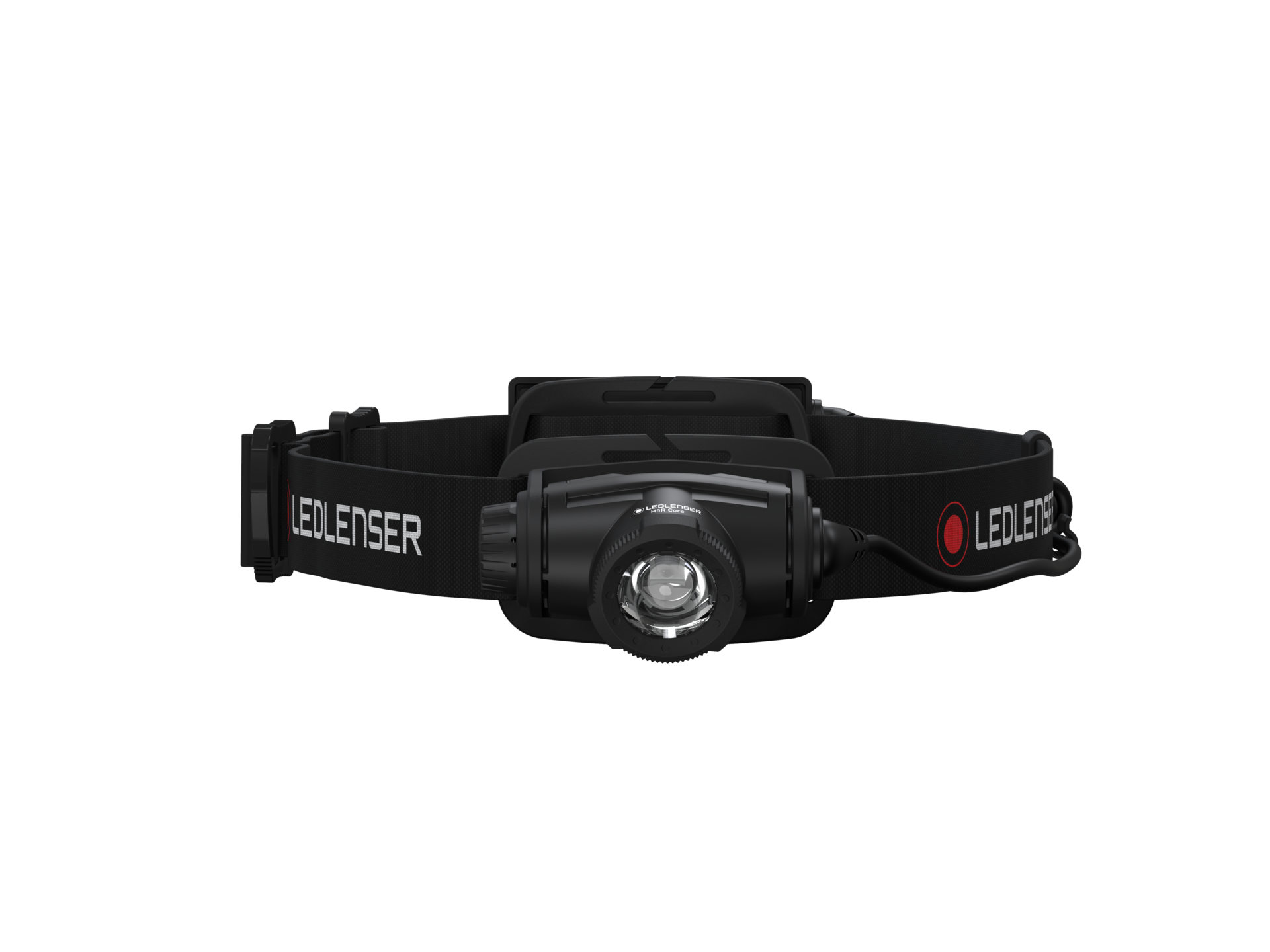

Headlamp H5R Core

Model

Headlamp H5R Core €84.90 Nr: 502121

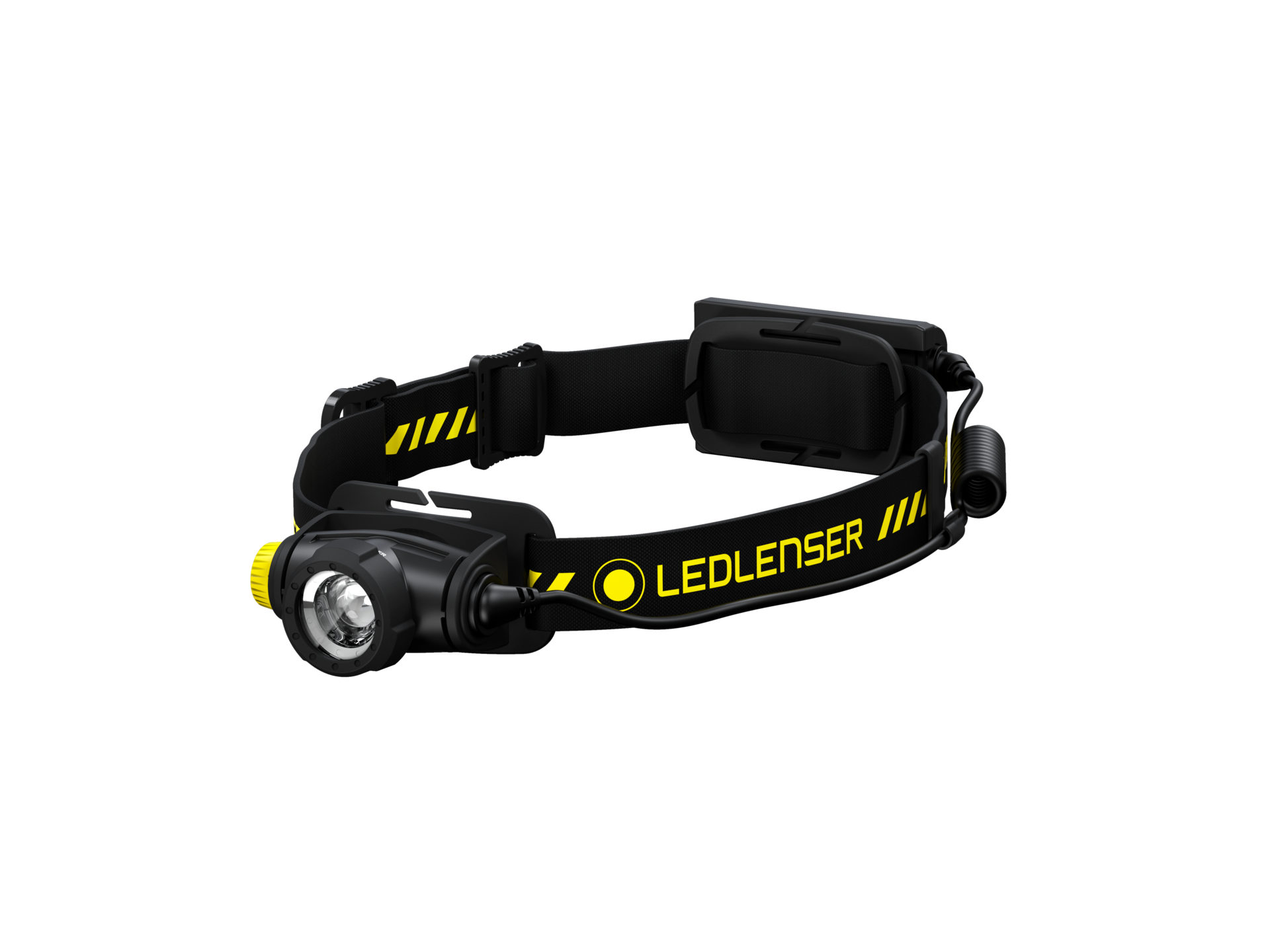

Headlamp H5R Work €94.90 Nr: 502194

Need help finding the right product? Go to comparison

€84.90

Available, delivery time: 2-5 days

Highlights:

Patented³ Advanced Focus System for efficient, precise flood and spot lighting

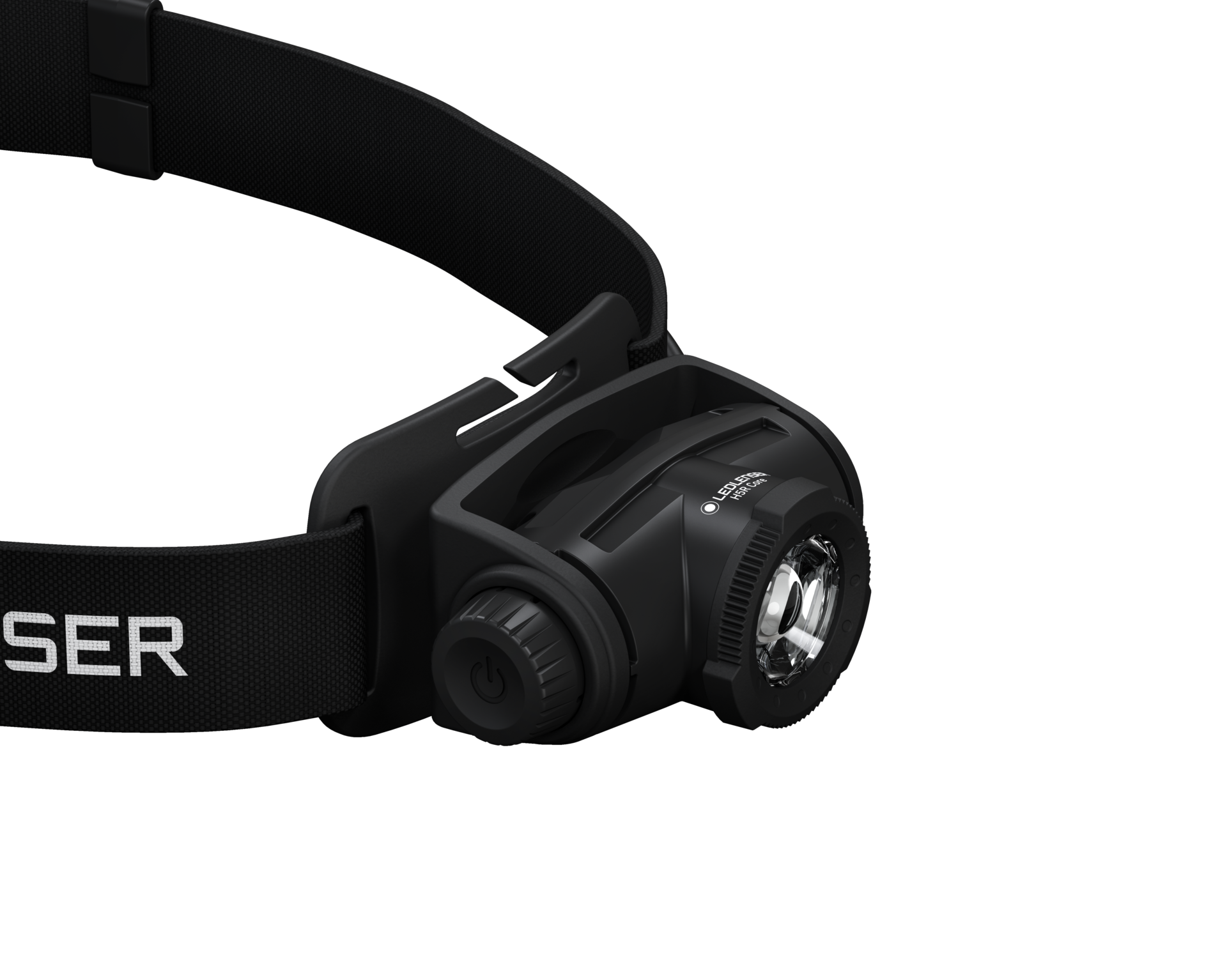

Intuitive operation and stepless dimming with the Wheel Switch

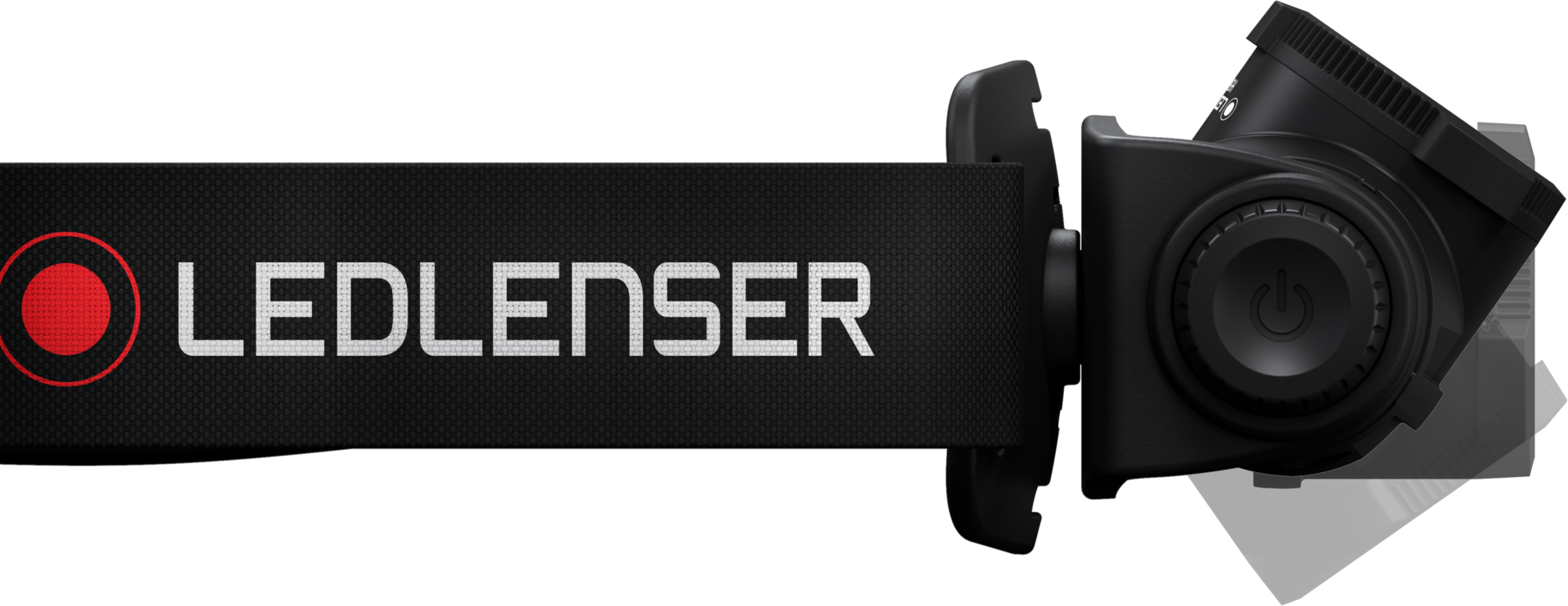

160 degrees of lamp head rotation
Flex Sealing Technology provides superior protection against dust and water (IP67)
Convenient charging of the battery with the robust Magnetic Charge System

Fast delivery
Free returns within 14 days
Secure payment

Description

2+5 years

Get seven years warranty upon registration. *See our terms and conditions.

Nr: 502121

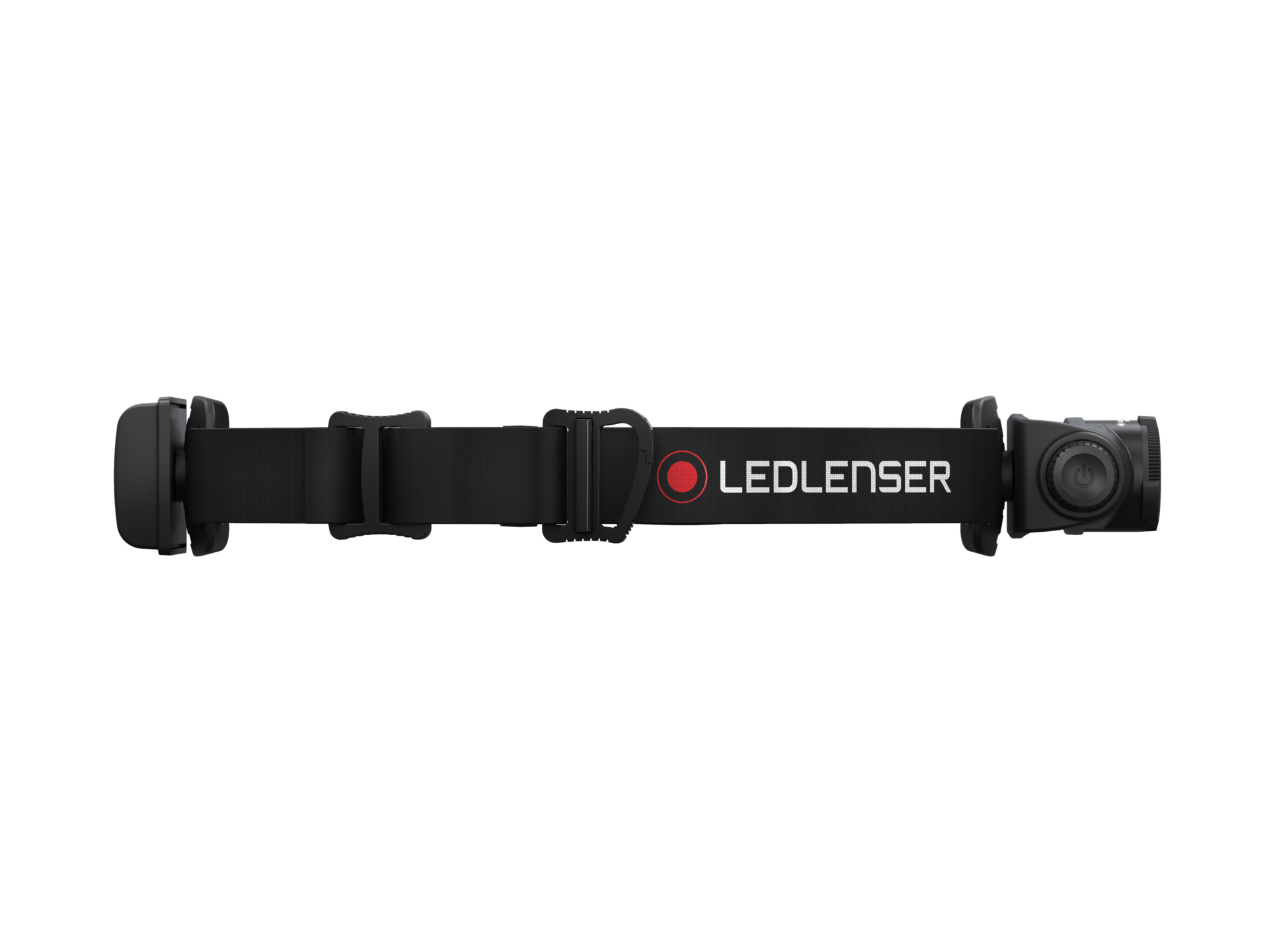

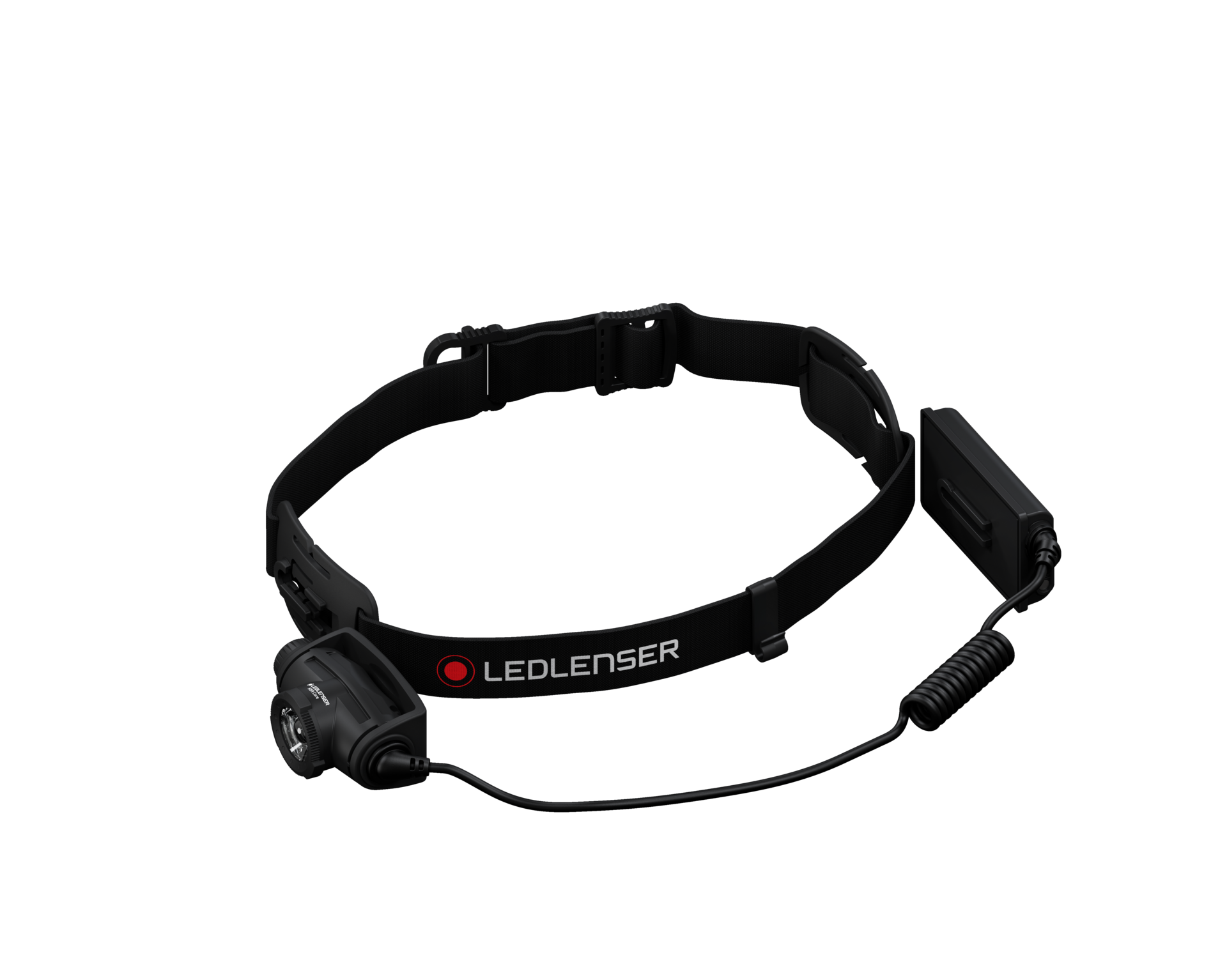

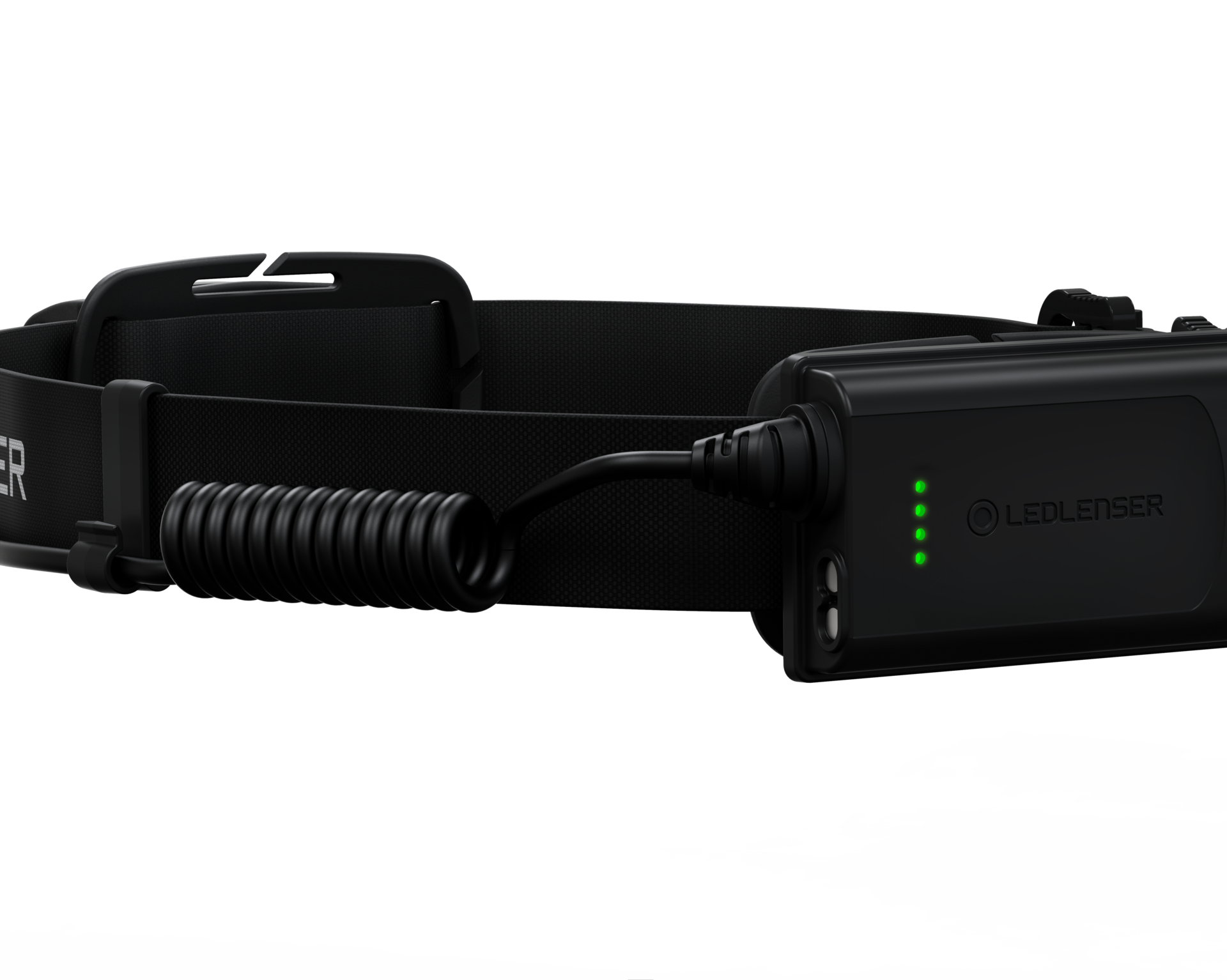

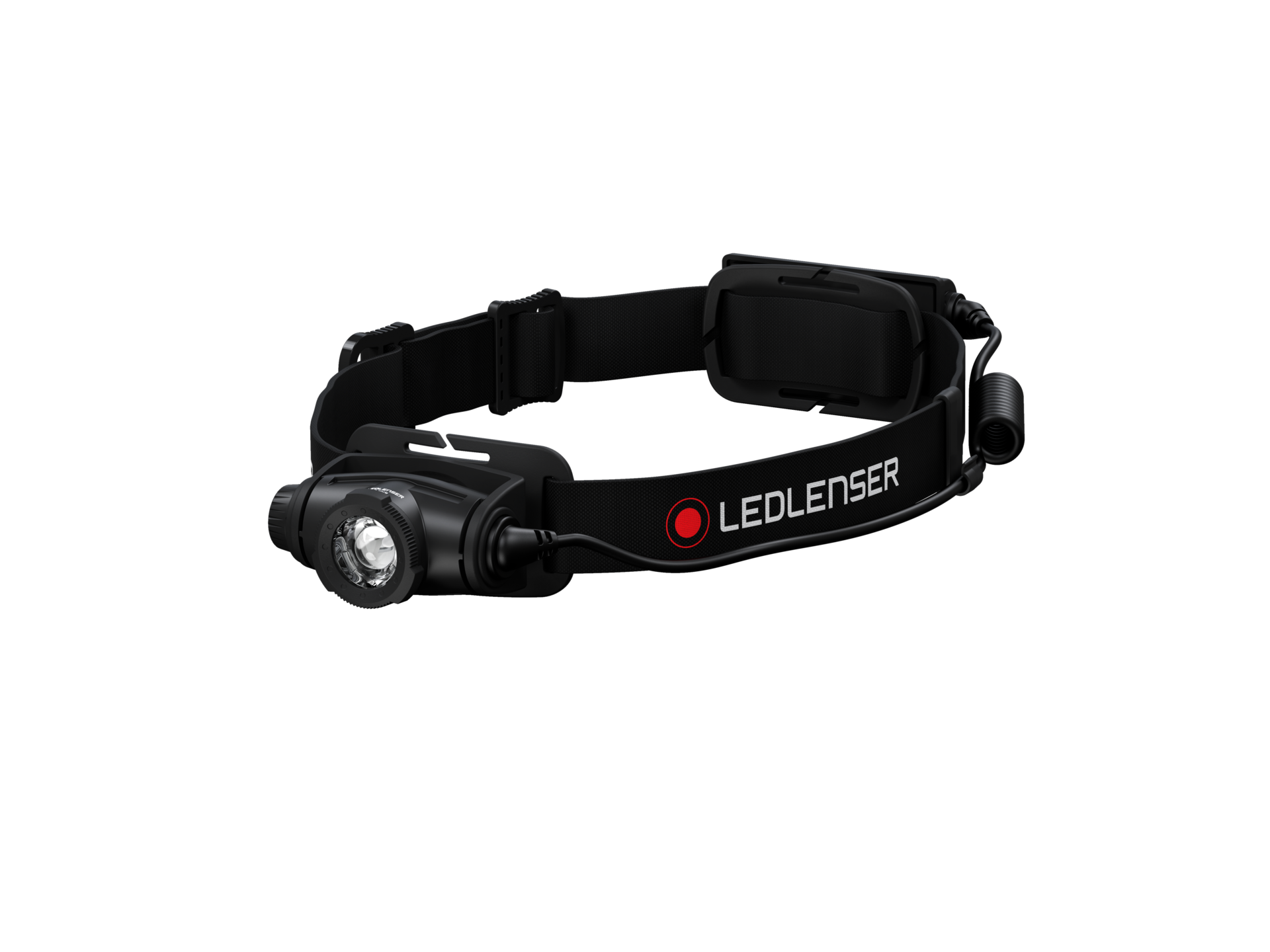

The H5R Core is a compact, yet powerful headlamp that is a convenient portable lighting solution which defies almost any weather condition. This headlamp is practical and versatile, thanks to the Ledlenser patented³ Advanced Focus System, continuous dimmability and 160-degree lamp head rotation. The H5R Core can be charged easily with magnetic charging and features a battery status indicator, so you know when to power back up.

Manufacturer:
Ledlenser GmbH & Co. KG
Kronenstraße 5-7 | 42699 Solingen | Germany
www.ledlenser.com

WEEE-Reg-No.: DE 20612570

Technical data

LED

Beam distance (in m) ¹

200

Max. Luminous flux (in lm) ¹

500

CRI

Lightsource color temperature

6000 - 7500

Luminous flux (in lm)

Boost	500
Power	300
Low power	15

Beamdistance (in m)

Boost	200
Power	150
Low power	30

Runtime (in h)

Boost	-
Power	2
Low power	50

Attributes	Boost	Power	Low power
Luminous flux (in lm)	500	300	15
Beamdistance (in m)	200	150	30
Runtime (in h)	-	2	50

1 Measured values according to ANSI/PLATO FL 1 at the respective setting. If no setting is explicitly named, the values for luminous flux (lumen/lm) and luminous range (metres/m) refer to the brightest setting and the values for luminous duration (hours/h) to the lowest setting. A boost function (if available) can be used several times, but is only available for a short time at a time. In case the lamp is equipped with coloured LEDs, the measured values are given with white light or the white LED. If the lamp has different energy modes, the "energy saving mode" is the basis for the measurement.

Power supply

Runtime (in hours) ¹

Rechargeable

Yes

Charging time (in minutes)

210

Case

Dimensions

Weight (in g)

167

Material

Materials

Aluminum alloy

Water and dust resistance

IP67

Drop test height (in m)

1.5

Working temperature (in C°)

-20 - 40

Scope of delivery

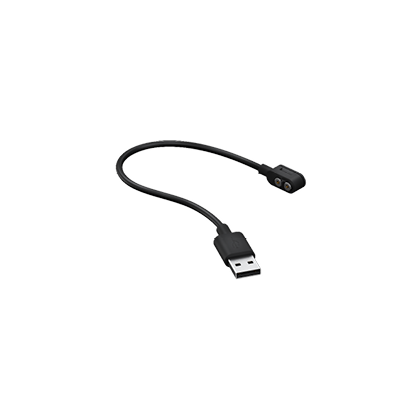

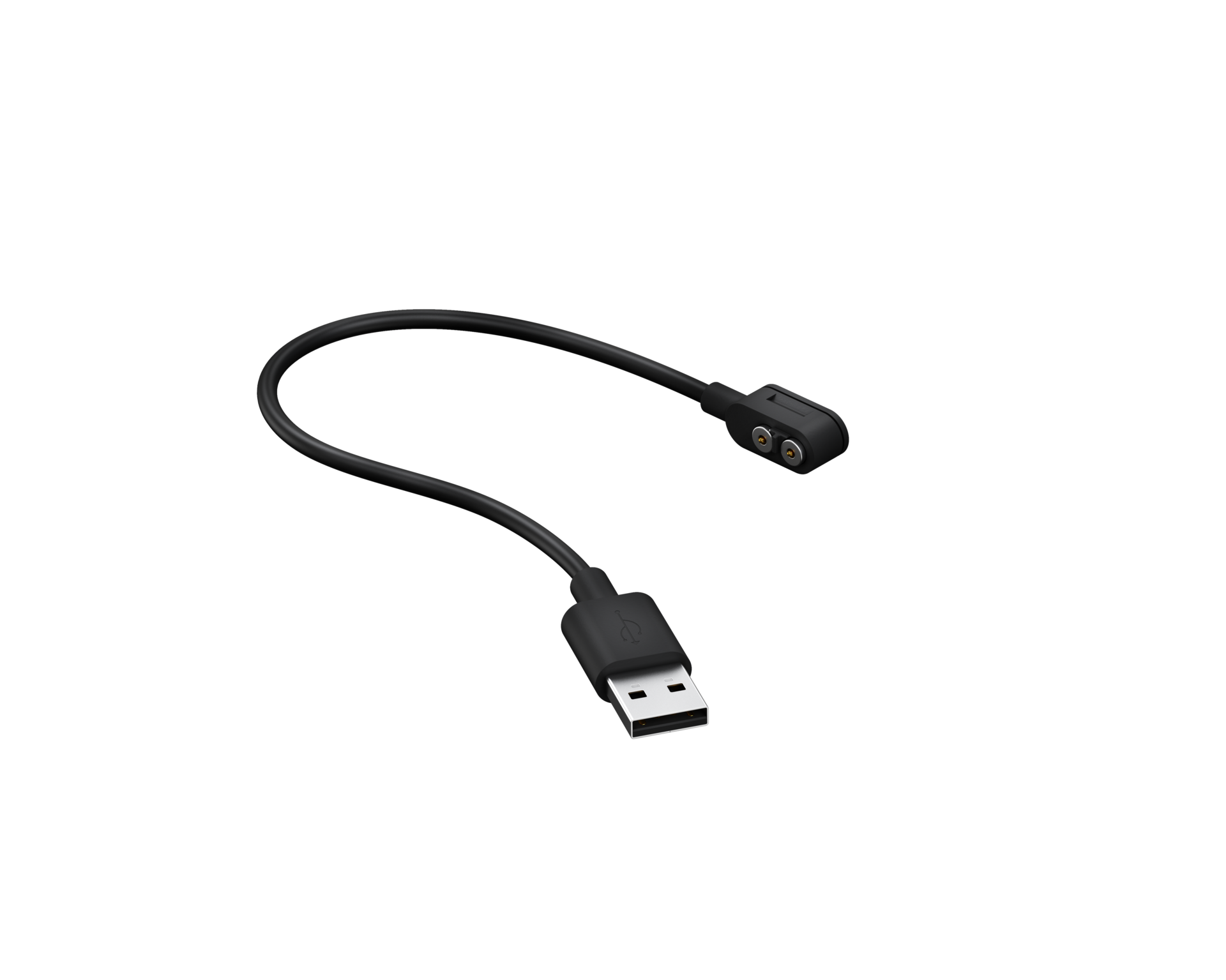

Magnetic Charging Cable Type A

Downloads

Warnings_25Languages_V5-50x38cm-20240507

Size	Typ	Files
4,08 MB	pdf

1J12A0495_H5R_Core_30x19cm_QUG_20211015

Size	Typ	Files
8,40 MB	pdf

Name	Size	Typ	Files
Warnings_25Languages_V5-50x38cm-20240507	4,08 MB	pdf
1J12A0495_H5R_Core_30x19cm_QUG_20211015	8,40 MB	pdf

Features and technologies

Flicker Free

No more annoying flickering of the light source – flicker free lamps can serve work safety or in front of cameras for photos or videos.
Backup Mode

In this mode, the remaining runtime is about an hour, so you can safely finish your work or find your way home.
Memory Function

The Memory Function sets the light so that it starts in the last light mode or brightness level used when it is switched on.
Stepless Dimming

Lights with different dimming levels give you the freedom to select the appropriate light intensity.
Transportation Lock

The optionally activatable lock function prevents accidental switching on of the light in the backpack or suitcase.
Magnetic Charge System

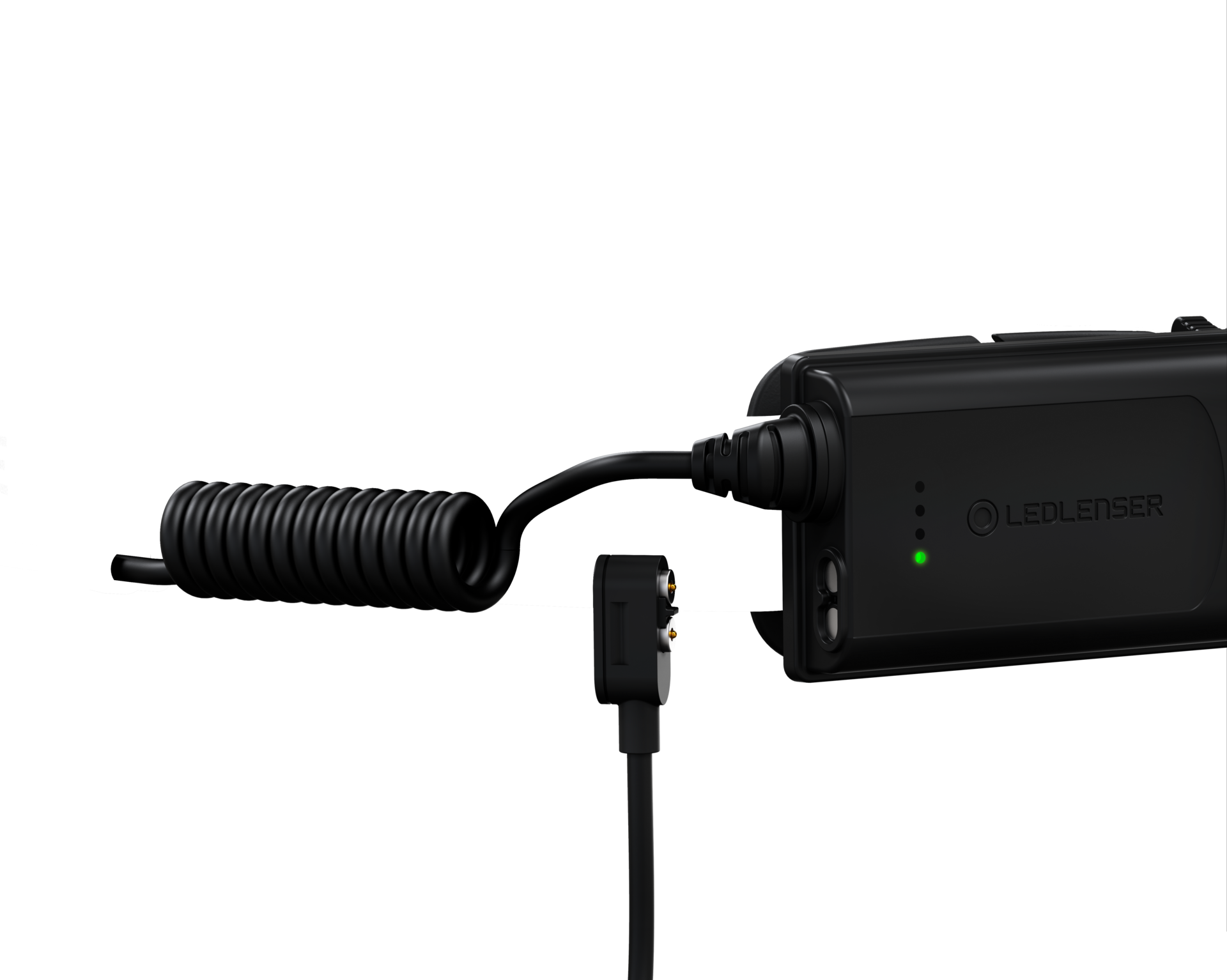

With the Magnetic Charge System, the charging cable can be quickly and easily attached to the light.
Flex Sealing Technology

The innovative Flex Sealing Technology ensures that the electronic parts of the light head are completely sealed off to protect against the penetration of water and dust - even when the Advanced Focus System is used.
Advanced Focus System

Our patented Advanced Focus System (AFS) allows a seamless transition from homogeneous low beam to sharply focused high beam.
Cooling Technology

The Cooling Technology (CT) reduces LED heat to the optimal level by means of the intelligent use of cooling elements. This ensures highly efficient use of energy, increased illuminating power, and especially long-lasting LEDs.
Temperature Control System

Temperature Control protects you from burns and the LED from overheating.
