Headlamp H19R Core

H-Series

Model

Headlamp H19R Core €199.90 Nr: 502124

Headlamp H19R Signature €339.00 Nr: 502198

Need help finding the right product? Learn more about the differences between Core, Work and Signature.

Available, delivery time: 2-5 days

Features

Flicker Free

No more annoying flickering of the light source – flicker free lamps can serve work safety or in front of cameras for photos or videos.
Backup Mode

In this mode, the remaining runtime is about an hour, so you can safely finish your work or find your way home.
Transportation Lock

The optionally activatable lock function prevents accidental switching on of the light in the backpack or suitcase.
Red Light

Red light has the ability to preserve the natural night vision of the human eye.
Dimmable

Lights with different dimming levels give you the freedom to select the appropriate light intensity.

Nr: 502124

2+5 years

Get seven years warranty upon registration.

*See our terms and conditions.

Ledlenser H19R Core

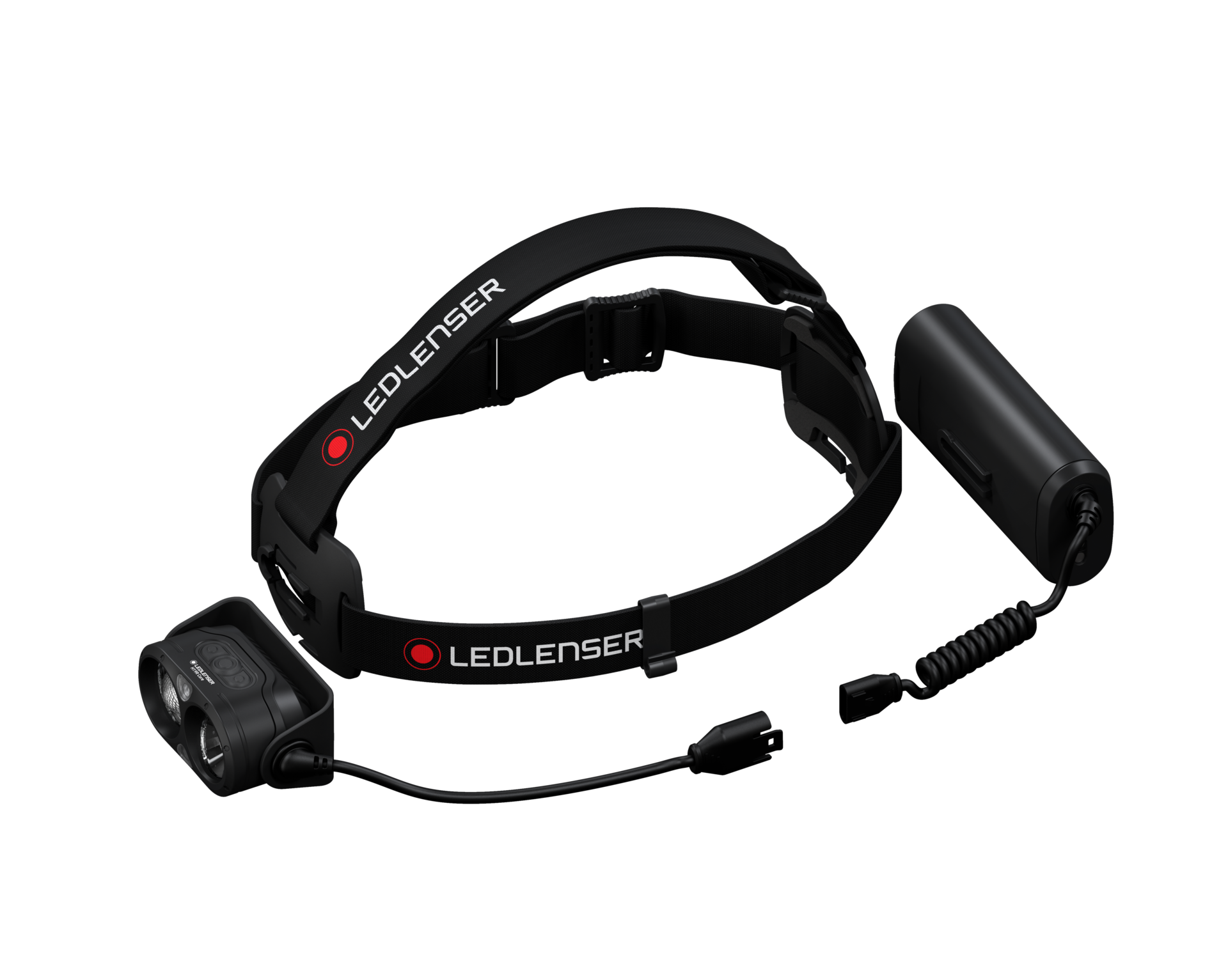

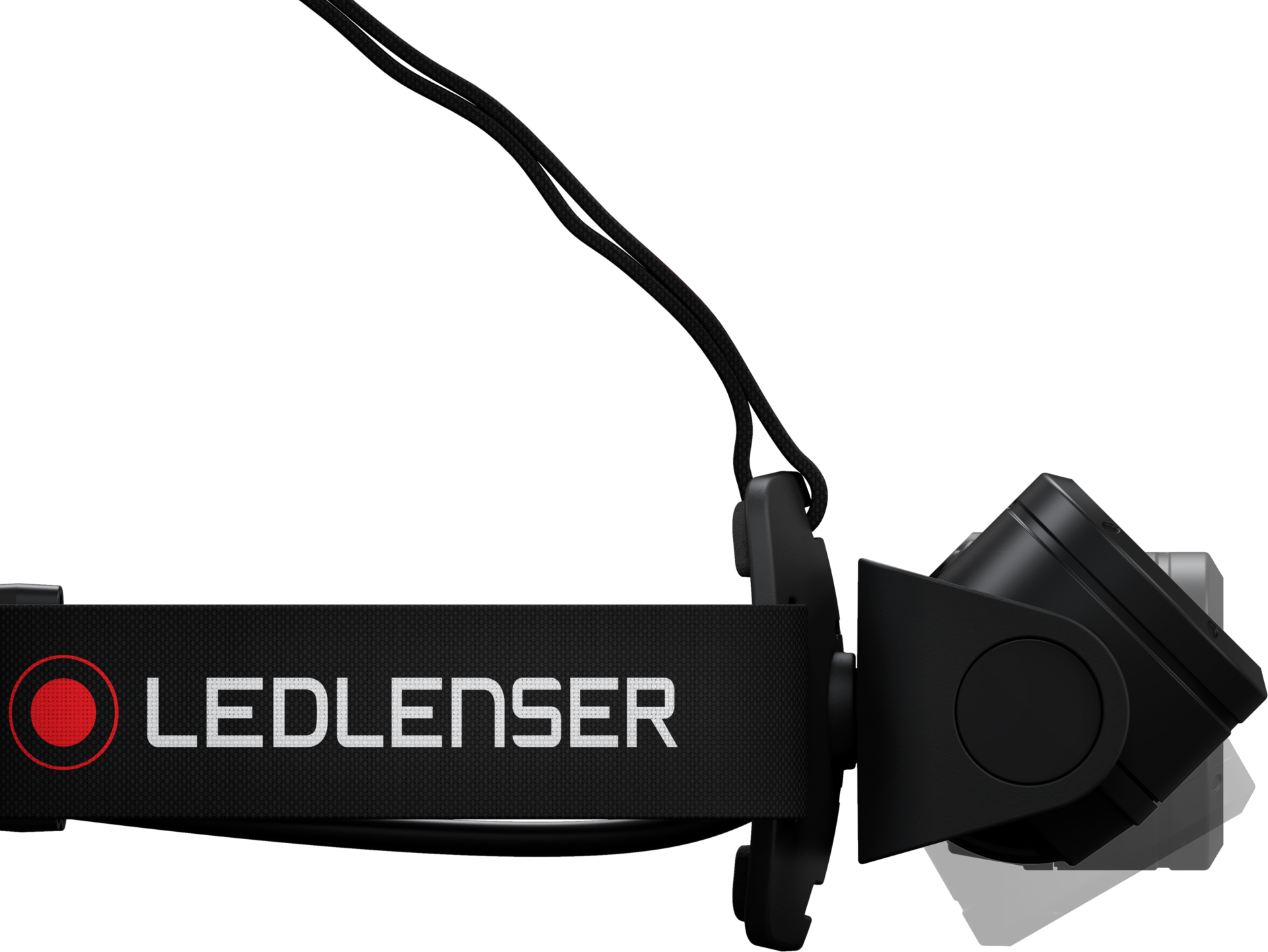

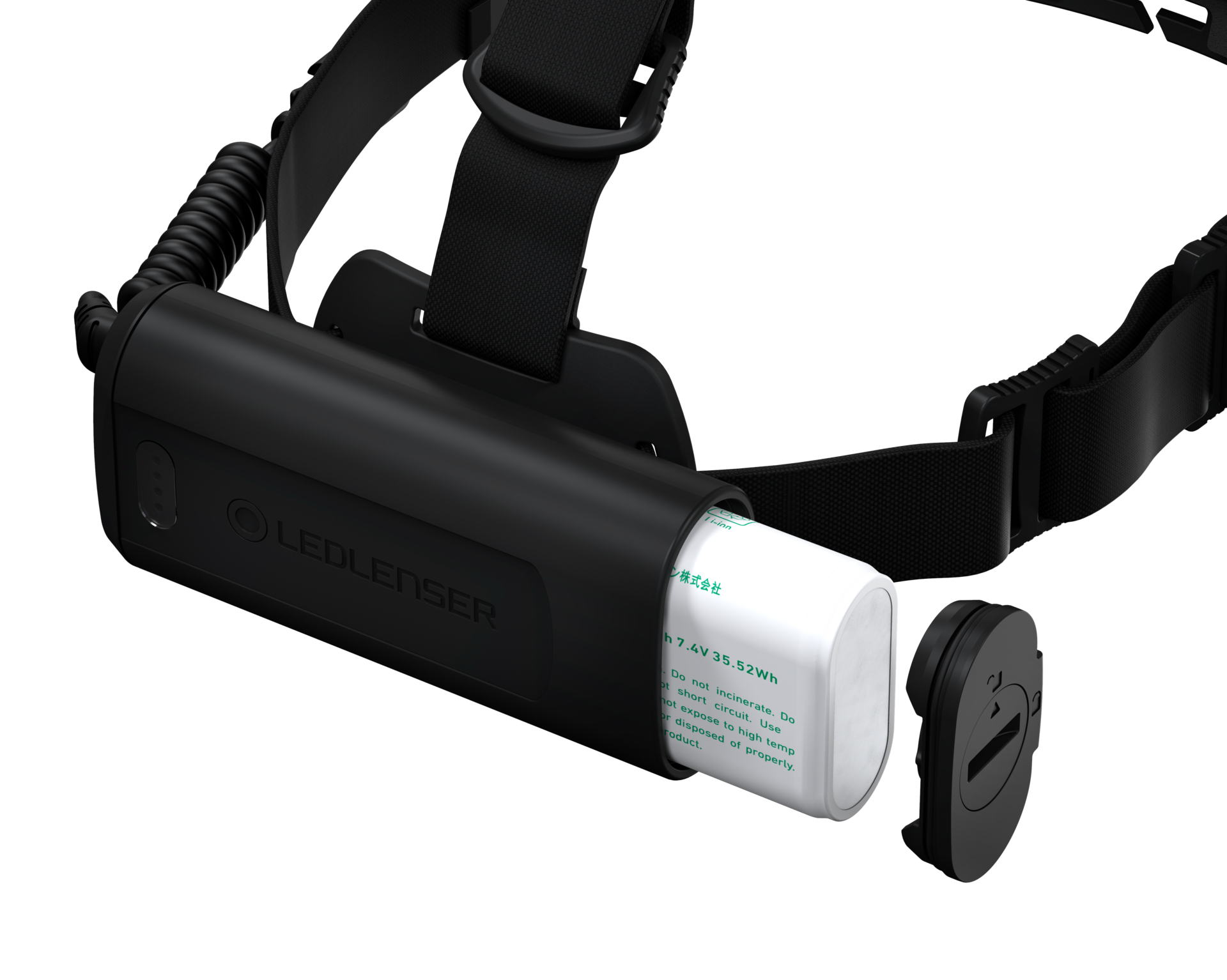

The H19R Core is the ultimate in portable light innovation and engineering. The unique Fusion Beam light pattern combines the power of two lenses and enables individually controllable flood and spotlight with intuitive operation. The H19R Core features a red light to preserve night vision, a swiveling lamp head and removable battery with magnetic charging. This headlamp is well protected against dust and water, a perfect match for any challenge.

Powerful premium headlamp with up to 3500 lumens

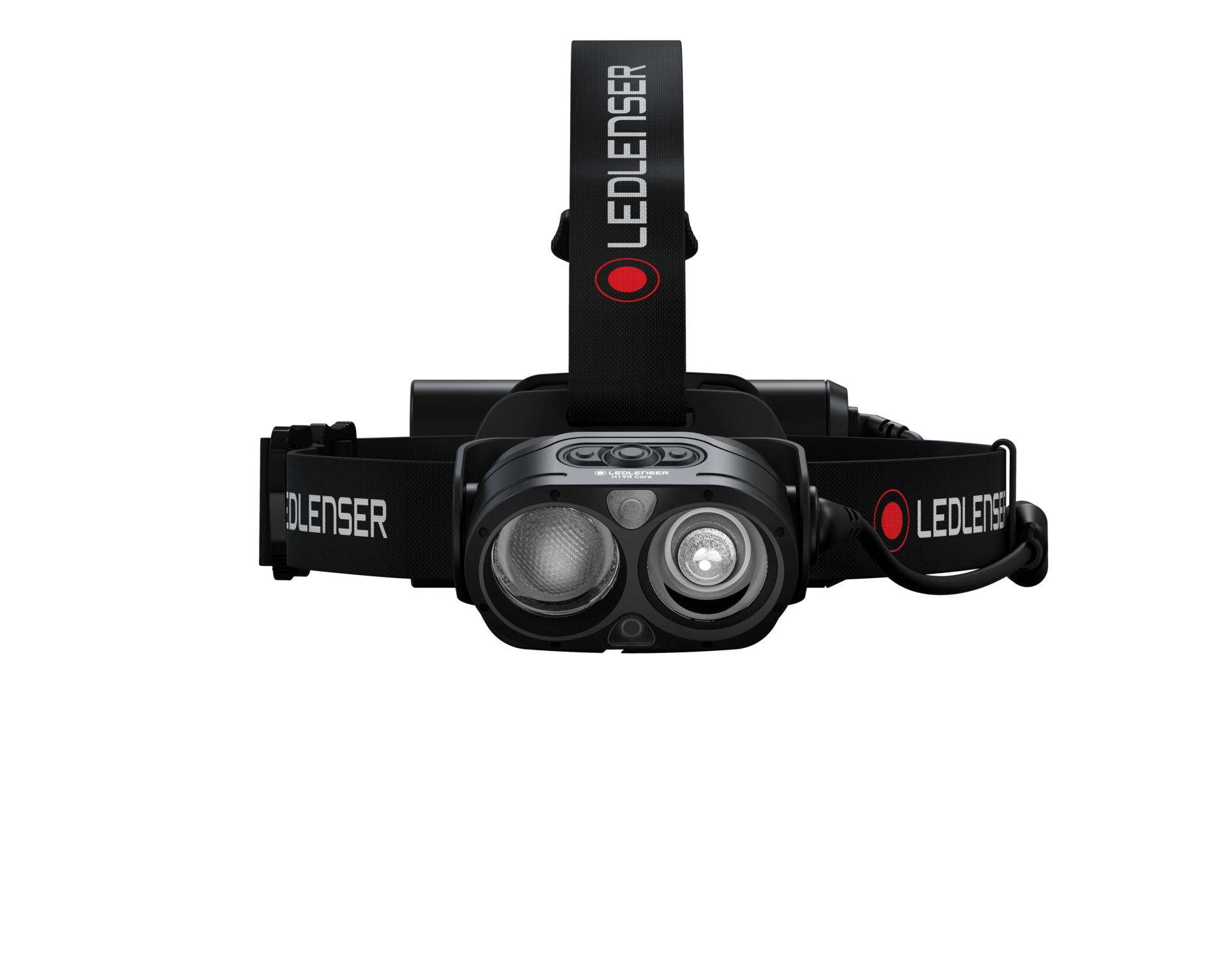

Fusion Beam: individually adjustable flood and spot light provide excellent illumination
Three-way switch offers intuitive light handling
Red light to preserve night vision
Superior protection against dust and water (IP68)

Scope of delivery

Technical data

LED

Beam distance (in m) ¹ 300

Max. Luminous flux (in lm) ¹ 3500

Lightsource quantity 2

CRI 70

Lightsource color temperature 6000 - 7500

1 Measured values according to ANSI/PLATO FL 1 at the respective setting. If no setting is explicitly named, the values for luminous flux (lumen/lm) and luminous range (metres/m) refer to the brightest setting and the values for luminous duration (hours/h) to the lowest setting. A boost function (if available) can be used several times, but is only available for a short time at a time. In case the lamp is equipped with coloured LEDs, the measured values are given with white light or the white LED. If the lamp has different energy modes, the "energy saving mode" is the basis for the measurement.
Power supply

Runtime (in hours) ¹ 20

Rechargeable Yes

Charging time (in minutes) 330

1 Measured values according to ANSI/PLATO FL 1 at the respective setting. If no setting is explicitly named, the values for luminous flux (lumen/lm) and luminous range (metres/m) refer to the brightest setting and the values for luminous duration (hours/h) to the lowest setting. A boost function (if available) can be used several times, but is only available for a short time at a time. In case the lamp is equipped with coloured LEDs, the measured values are given with white light or the white LED. If the lamp has different energy modes, the "energy saving mode" is the basis for the measurement.
Case

Dimensions

Weight (in g) 374

Material

Materials Aluminum alloy

Water and dust resistance IP68

Drop test height (in m) 1.5

Working temperature (in C°) -20 - 40
Downloads

Name Size Typ

H19R_QUG_V.01_20200730 10,71 MB pdf

DECLARATION OF CONFORMITY H19R Core_2020-06-12 570,10 kB pdf
