Flashlight iL7

iL-Series

Technologien

Advanced Focus System

Nr: 500838

7 years

Get seven years warranty upon registration.

See our terms and conditions.

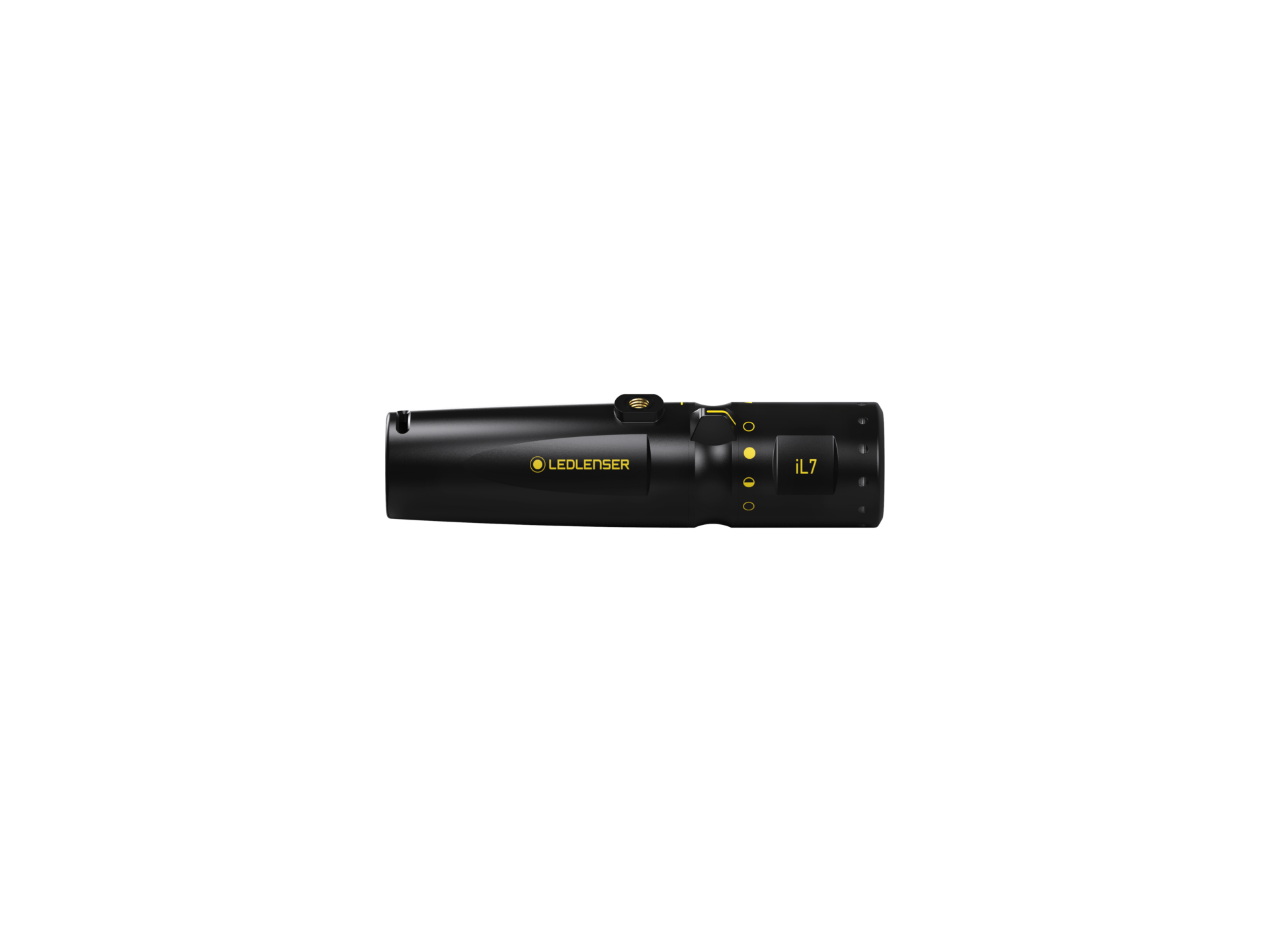

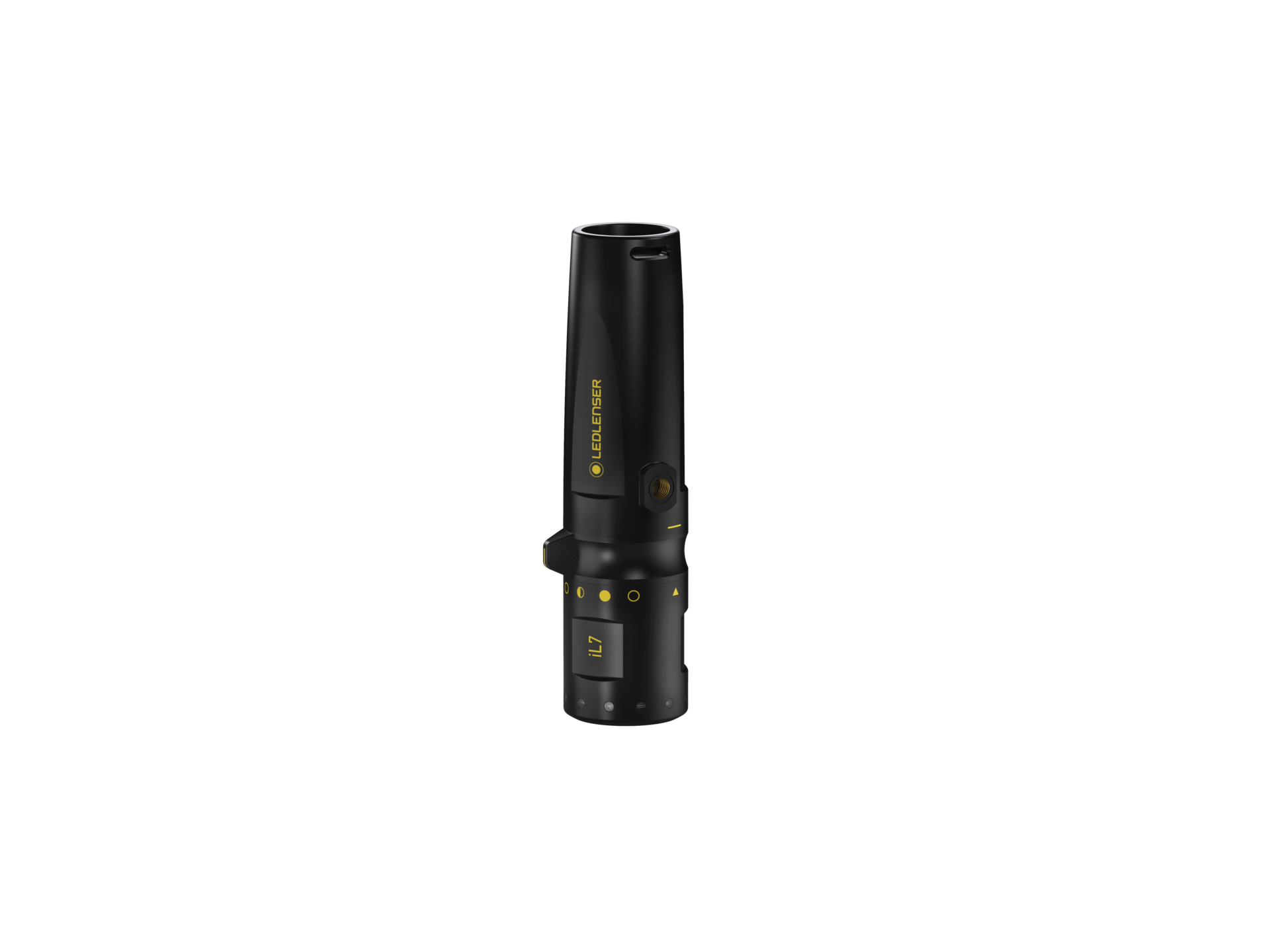

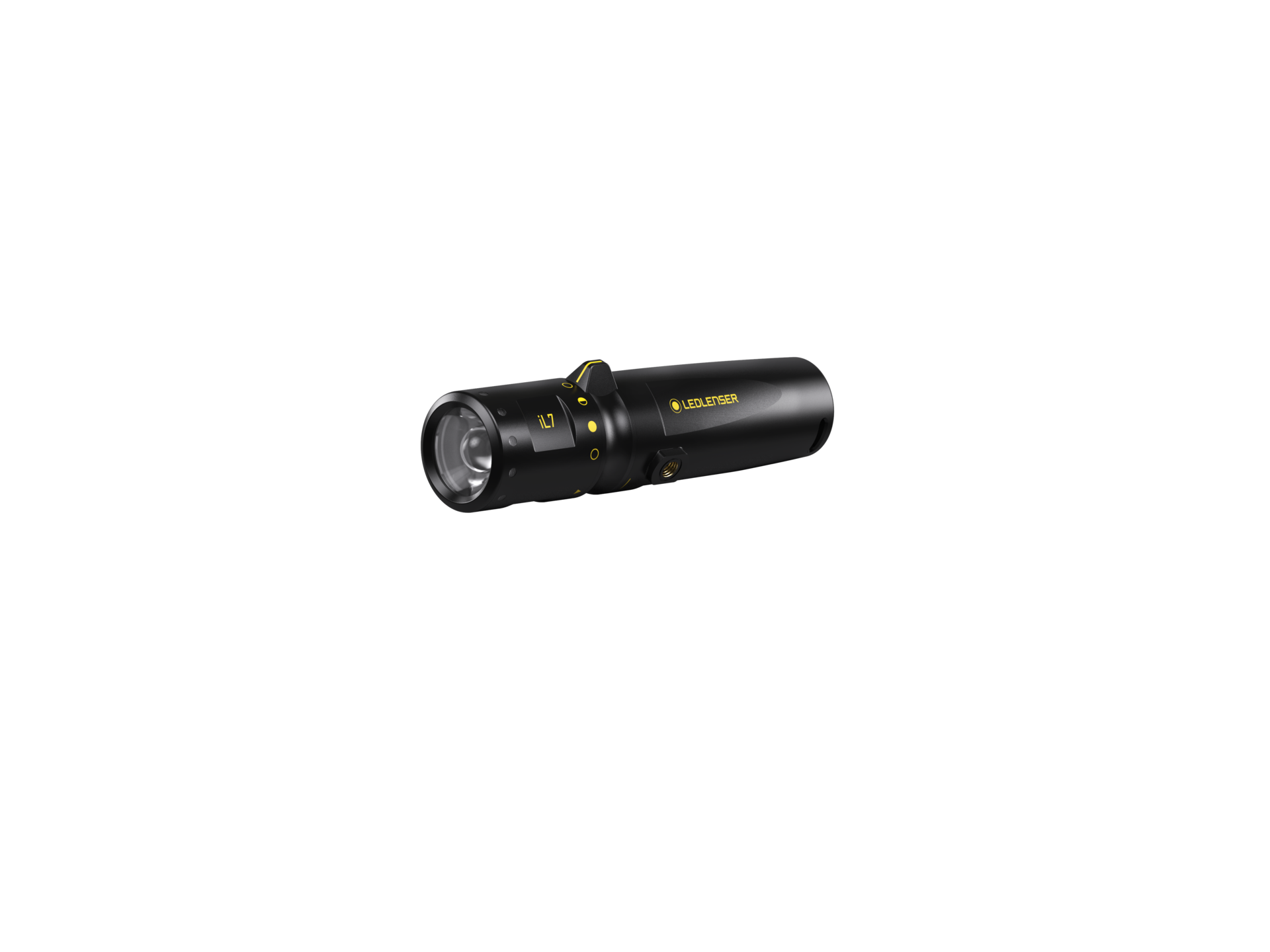

Ledlenser iL7

Long battery life meets light weight: With the Ledlenser iL7, weighing merely 232 g, you can work in Ex-Zone 2/22 areas for up to 37 hours. And you don’t need to worry about sparks. Or if you’re wearing work gloves. The extra large Magnetic Switch is even easy to operate with gloves. The iL7 is approved for gas and dust groups IIC and IIIC in zones 2 and 22 (temperature class T4 / 135°C).

Magnetic Switch for easy operation with gloves and protective equipment
Advanced Focus System for focusing
Excellent price/performance ratio
Light weight (232 g)
Long battery life (up to 37 hours¹)

Scope of delivery

1 set of batteries - AA

Technical data

LED

Beam distance (in m) ¹ 165

Max. Luminous flux (in lm) ¹ 340

Lightsource quantity 1

CRI 65

Lightsource color temperature 6000 - 8000

1 Measured values according to ANSI/PLATO FL 1 at the respective setting. If no setting is explicitly named, the values for luminous flux (lumen/lm) and luminous range (metres/m) refer to the brightest setting and the values for luminous duration (hours/h) to the lowest setting. A boost function (if available) can be used several times, but is only available for a short time at a time. In case the lamp is equipped with coloured LEDs, the measured values are given with white light or the white LED. If the lamp has different energy modes, the "energy saving mode" is the basis for the measurement.
Power supply

Runtime (in hours) ¹ 37

Rechargeable No

Battery ² Mignon (AA) 1.5V

1 Measured values according to ANSI/PLATO FL 1 at the respective setting. If no setting is explicitly named, the values for luminous flux (lumen/lm) and luminous range (metres/m) refer to the brightest setting and the values for luminous duration (hours/h) to the lowest setting. A boost function (if available) can be used several times, but is only available for a short time at a time. In case the lamp is equipped with coloured LEDs, the measured values are given with white light or the white LED. If the lamp has different energy modes, the "energy saving mode" is the basis for the measurement.

2 Calculated value of the capacity in watt hours (Wh). This applies to the battery(ies) contained in the delivery condition of the respective item or, in the case of lamps with rechargeable battery, to the rechargeable battery(ies) contained herein in a fully charged condition.
Case

Dimensions

Length (in mm) 161

Head diameter (in mm) 41

Tube diameter (in mm) 41

Weight (in g) 232

Material

Materials PC

Water and dust resistance IP68

Drop test height (in m) 1

Working temperature (in C°) -20 - 40

specific data for EX-Protection

EX gas zone 2

EX dust zone 22
Downloads

Name Size Typ

iL7_QUG_V.02_20190314 3,33 MB pdf

iL7 KC 2019-07-19 2,67 MB pdf

DECLARATION OF CONFORMITY iL7_2021-01-19 611,45 kB pdf

Accessories

Nr: 500958 Signal Cone 42mm

Prices incl. VAT plus shipping costs

Other plastics

IPXX

Available again soon

€6.90

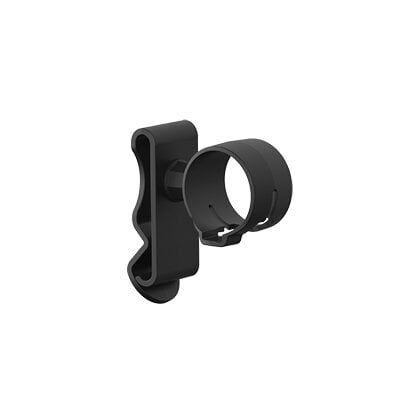

Nr: 500957 Intelligent Clip Type G
