A woman on the top of a hill
Information
This product is no longer available. You can still find all information and data on this page. If you have any further questions, our support team will be happy to help you.

Headlamp EXH8R

EX-Series
Colour

Features

  • Rear Light
    Rear Light
    A red rear light on the battery serves as a signaling device so that you can also be reliably seen from behind – e.g. in road traffic or on construction sites, increasing ones safety.
Nr: 501018
7 years
7 years

Get seven years warranty upon registration.

*See our terms and conditions.

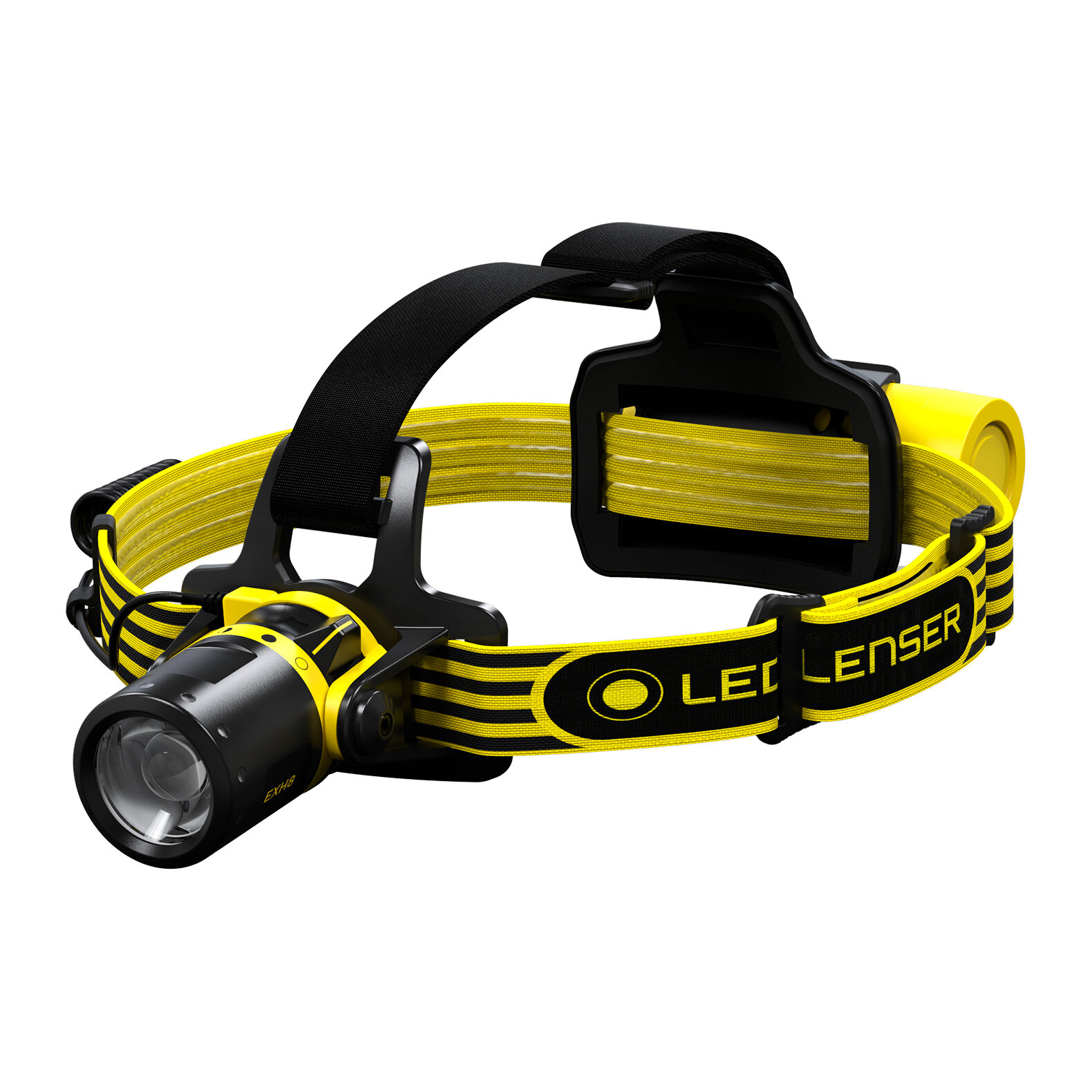

Ledlenser EXH8R

Chin up if you work in areas with dangerous gases or dusts. After all despite the rugged, dustproof housing protected against powerful water jets (IP68) it’s extremely comfortable. Plus it’s the first rechargeable headlamp with our patented Advanced Focus System. The EXH8R is approved for gas and dust groups IIC and IIIC in zones 1, 2 and 21 or 22 (Ex ib op is IIC T4 Gb, Ex ib op is IIIC T135°C Db). It delivers up to 45 hours of custom light for any application and includes a charging cradle to easily recharge it at any time.
show more show less
  • Magnetic Switch for easy operation with gloves and protective equipment
  • First Ex lamp for Ex-Zone 1/21 with patented3 Advanced Focus System
  • Focusable
  • Extreme dust and water protection (IP68)
  • Red rear light as a position marker

Scope of delivery

  • 1 set of rechargeable batteries
    1 set of rechargeable batteries

Technical data

  • LED
    Beam distance (in m) 1 130
    Max. Luminous flux (in lm) 1 200
    Lightsource quantity 1
    CRI 65
    Lightsource color temperature 6000 - 8000
    1 Measured values according to ANSI/PLATO FL 1 at the respective setting. If no setting is explicitly named, the values for luminous flux (lumen/lm) and luminous range (metres/m) refer to the brightest setting and the values for luminous duration (hours/h) to the lowest setting. A boost function (if available) can be used several times, but is only available for a short time at a time. In case the lamp is equipped with coloured LEDs, the measured values are given with white light or the white LED. If the lamp has different energy modes, the "energy saving mode" is the basis for the measurement.
  • Power supply
    Runtime (in hours) 1 45
    Rechargeable Yes
    Charging time (in minutes) 660
    1 Measured values according to ANSI/PLATO FL 1 at the respective setting. If no setting is explicitly named, the values for luminous flux (lumen/lm) and luminous range (metres/m) refer to the brightest setting and the values for luminous duration (hours/h) to the lowest setting. A boost function (if available) can be used several times, but is only available for a short time at a time. In case the lamp is equipped with coloured LEDs, the measured values are given with white light or the white LED. If the lamp has different energy modes, the "energy saving mode" is the basis for the measurement.
  • Case
    Dimensions
    Weight (in g) 342
    Material
    Materials PC
    Water and dust resistance IP68
    Drop test height (in m) 1
    Working temperature (in C°) -20 - 40
    specific data for EX-Protection
    EX gas zone 1
    EX dust zone 21
  • Downloads
    Name Size Typ
    EXH8R_QUG_V.02_20190314 4,16 MB pdf
    EXH8R KC 2019-07-19 2,61 MB pdf
    DECLARATION OF CONFORMITY EXH8R_2021-01-19 710,12 kB pdf
    Z-eng-Ledlenser-23 364,35 kB pdf
    Warnings_25Languages_V5-50x38cm-20240507 4,08 MB pdf
